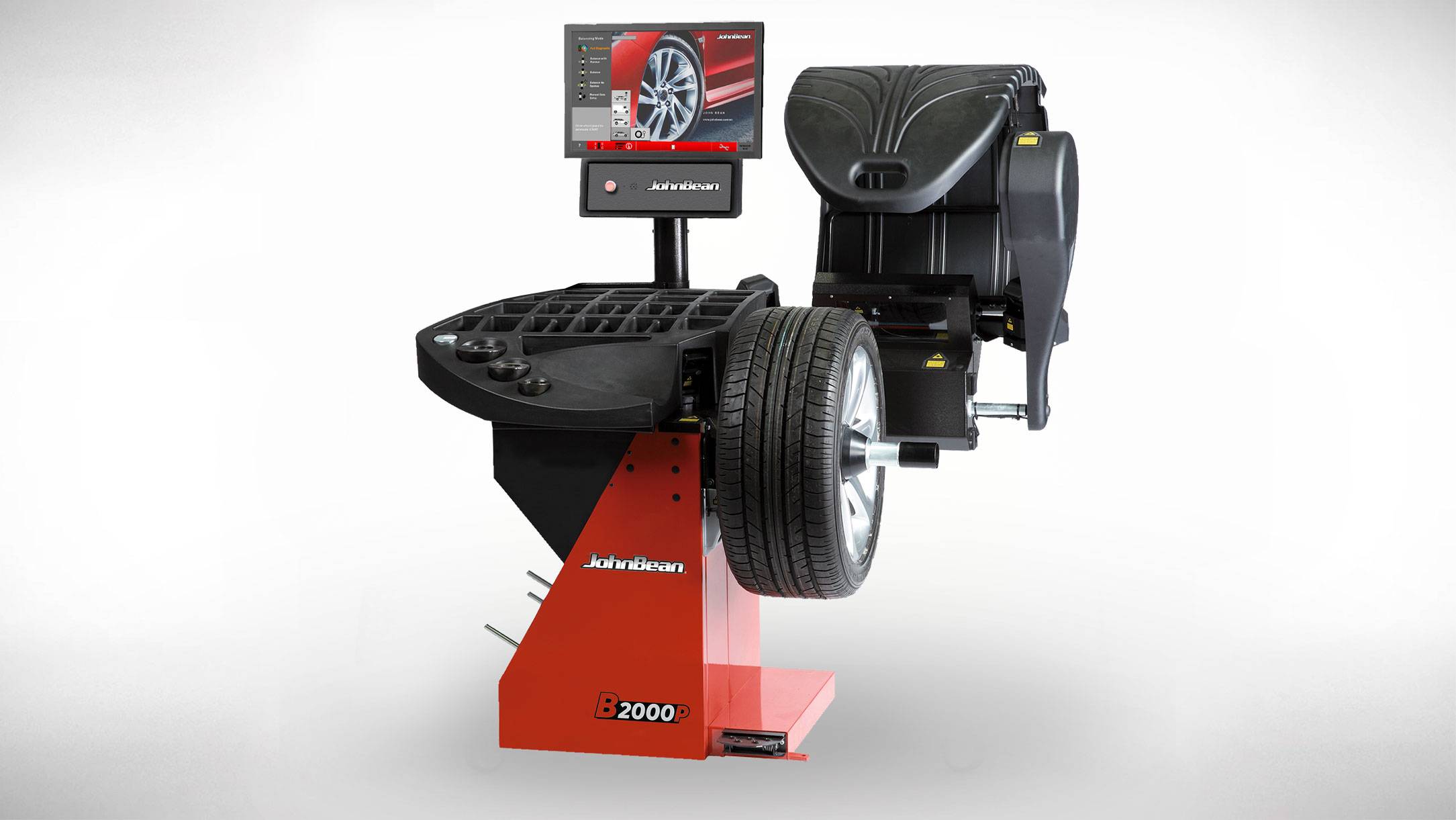

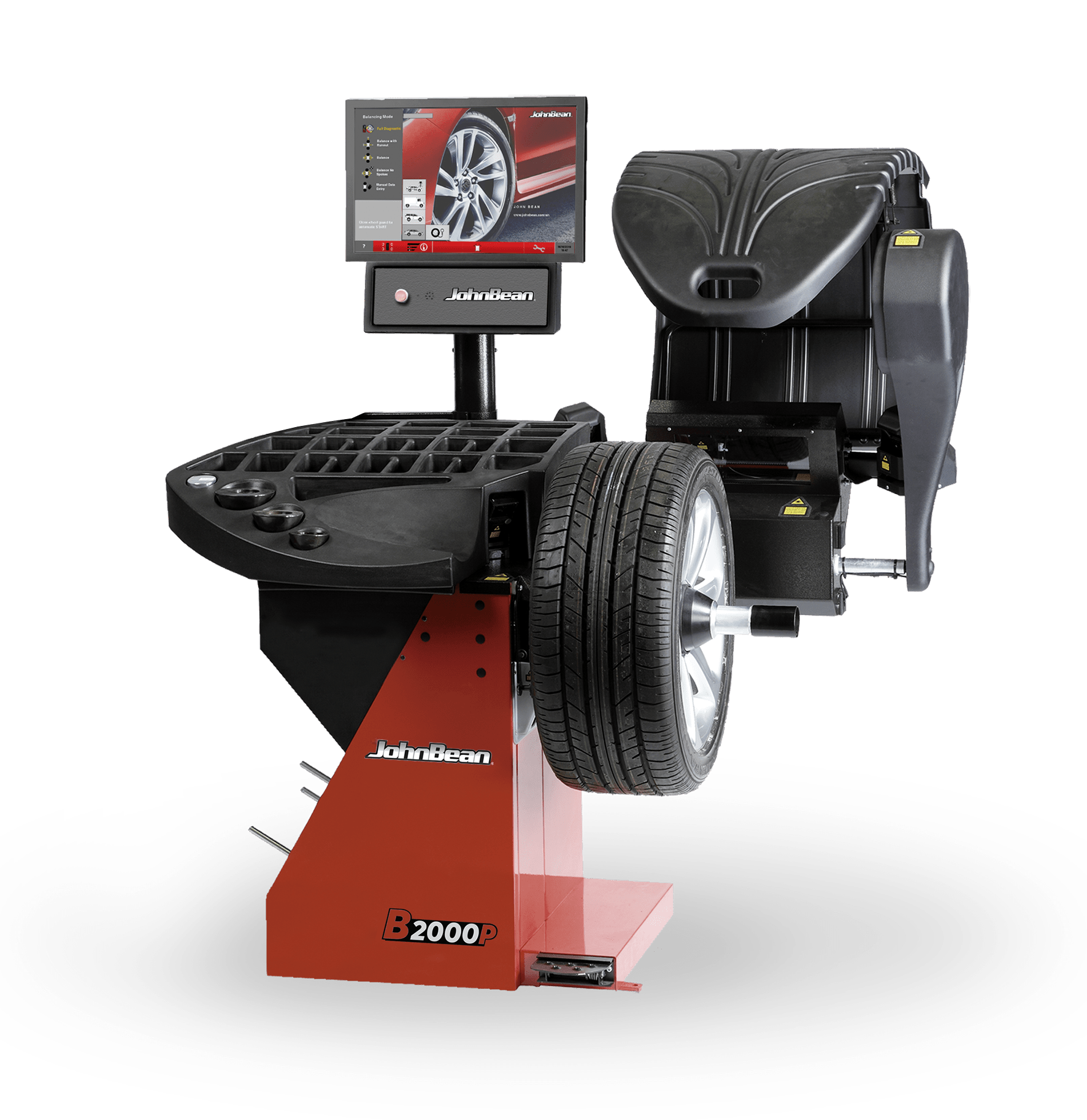

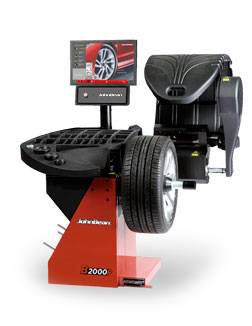

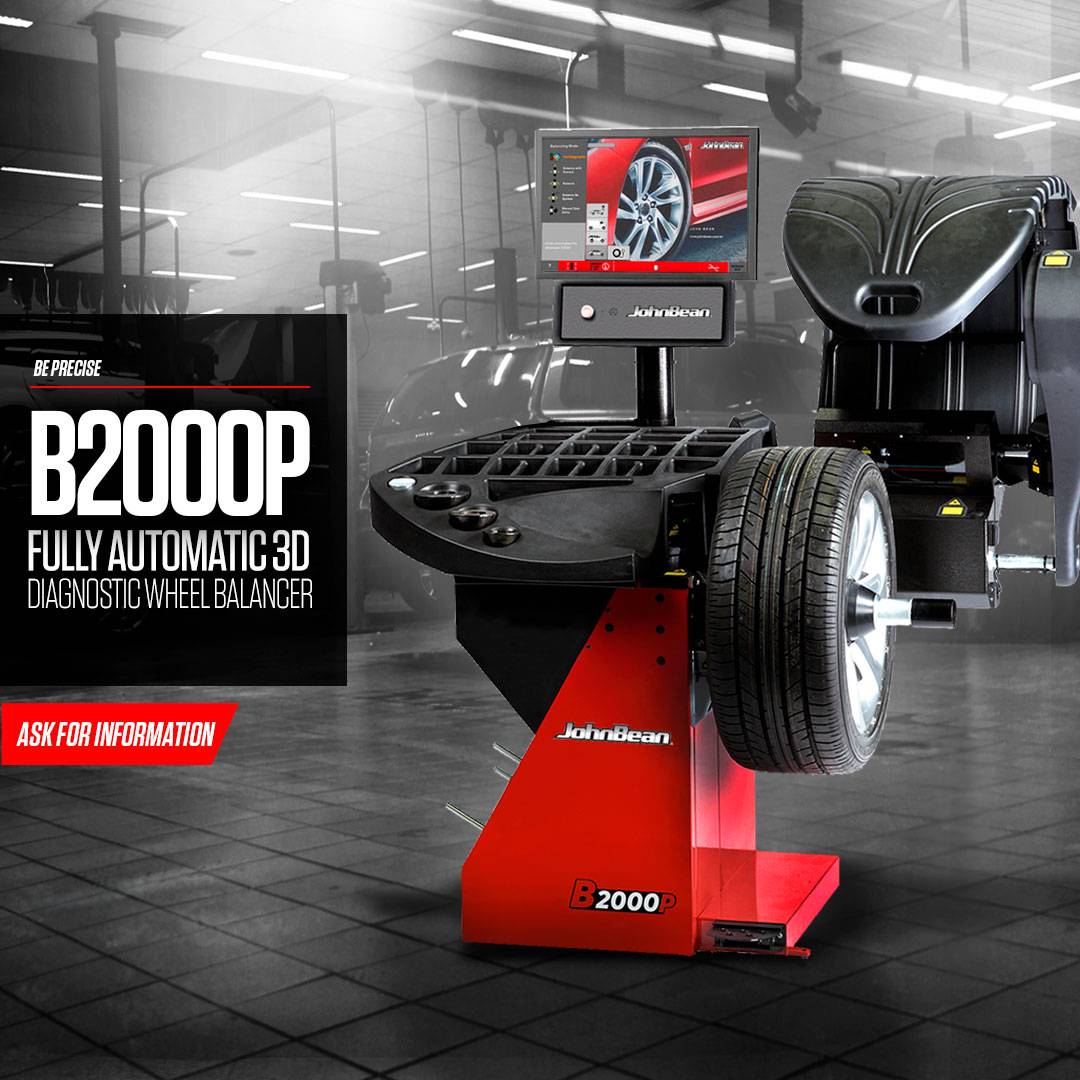

Fully Automatic 3D Diagnostic Wheel Balancer B2000P
The John Bean® B2000P is a fully automatic diagnostic wheel balancing system that uses five high-resolution cameras to create a complete 3D mapping system of the rim and tyre profile.
Our precision 3D runout measurements provide a commercial-grade level of surface measurement that can help technicians pinpoint balancing issues. A unique suite of diagnostic features such as tread depth analysis, tyre wear-out prediction, uneven wear diagnosis, and automatic balance measurements help technicians identify weight and shape defects, flat spots, and incorrect bead seating. Our easy-to-read, intuitive software interface and touchscreen display provide all the necessary steps for technicians throughout the entire balancing process, boosting productivity and reducing potential operator error.
Not all tyres are perfect, which can cause drivability issues such as vibration and pull. Our exclusive OptiLine™ technology analyses the data of the complete wheelset and proposes the best placement for each wheel to compensate for tyre pulling or steering wheel vibration problems. This feature provides accuracy on another level.
The John Bean B2000P is a world-class diagnostic wheel balancing system for professional shops. This technological powerhouse allows technicians to balance a wide variety of wheels with the highest degree of accuracy.
Hundreds of thousands of measurement points are taken with a resolution of 0.004″ (0.1 mm) to create a 3D model of the tyre and wheel allowing for a complete diagnosis of the assembly uniformity and displaying radial runout with peak-to-peak measurements from the first to the third harmonic.

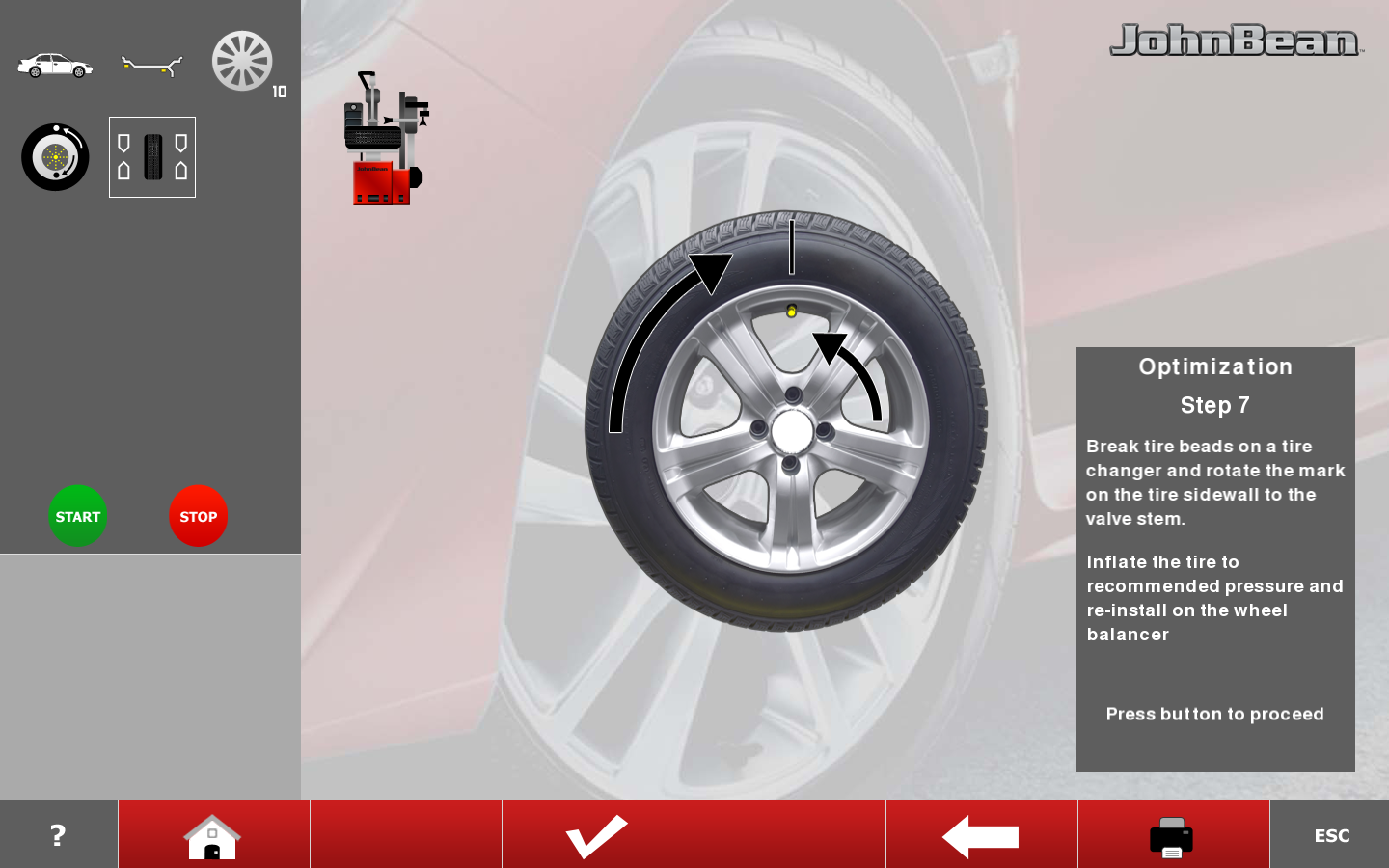

Optimise the assembly of the tyre on the rim and reduce the amount of necessary weight.

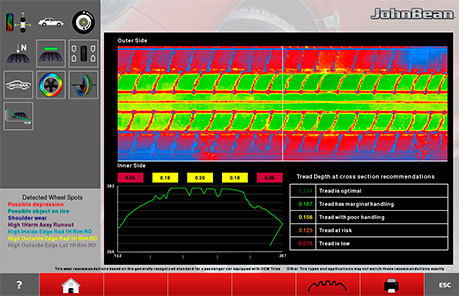

LASER 3D SURFACE MAPPING
Utilises a high-resolution camera and laser-based technology to provide sidewall analysis, as well as depth, wear, and tyre surface abnormalities that are displayed in an easy-to-read format.

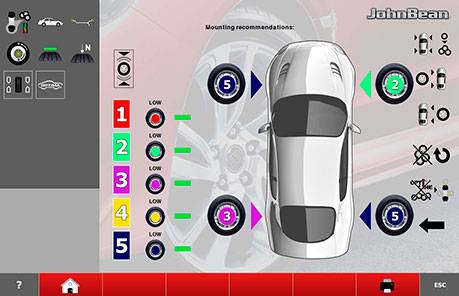

OPTILINE™ WHEEL SET OPTIMIZATION
Based on a predetermined set of criteria, OptiLine suggests the optimal location for each wheel to address any pull or vibration-related issues.
VIDEO: SEE IT IN ACTION
Fast and intuitive interface with large digits, coloured weight position indicators increase speed, ease-of-use, and ergonomics for the daily job.
Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.
The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.
AUTOMATIC DATA ENTRY
No manual data entry is required; this machine automatically detects the wheel dimensions and selects the balancing mode, weight type, and weight position to speed up the balancing cycle time and minimize operational errors.
AUTOMATIC SPOKE DETECTION
The laser scanner automatically detects the number and position of rim spokes for the system to indicate weight placement behind wheel spokes and allow for split weights.
SPLIT WEIGHT MODE
This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.
STOP IN POSITION
Touch the screen to automatically rotate the wheel to the weight application position.
Optimises the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.
Reports can be printed through the local network or saved as a PDF to an external flash drive.
Automatic Rim Diameter Range
14″-26″ | 36-66cm
Automatic Rim Width Range
3″-15.8″ | 8-40cm
Automatic Scanner Offset Range
4.7″-16.3″ | 12-41cm
Manual Rim Diameter Range
8″ – 32″ | 20-81cm
Manual Offset Range
1″ – 20″ | 3-51cm
Manual Rim Width Range
1″ – 20″ | 3-51cm
Max Wheel Diameter
44″ | 112cm
Max Wheel Weight
154 lbs. | 70 kg
74″x48″x62″ | 189x123x158cm
342 lbs. | 155 kg
