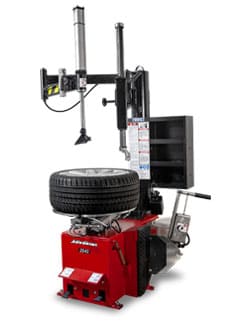

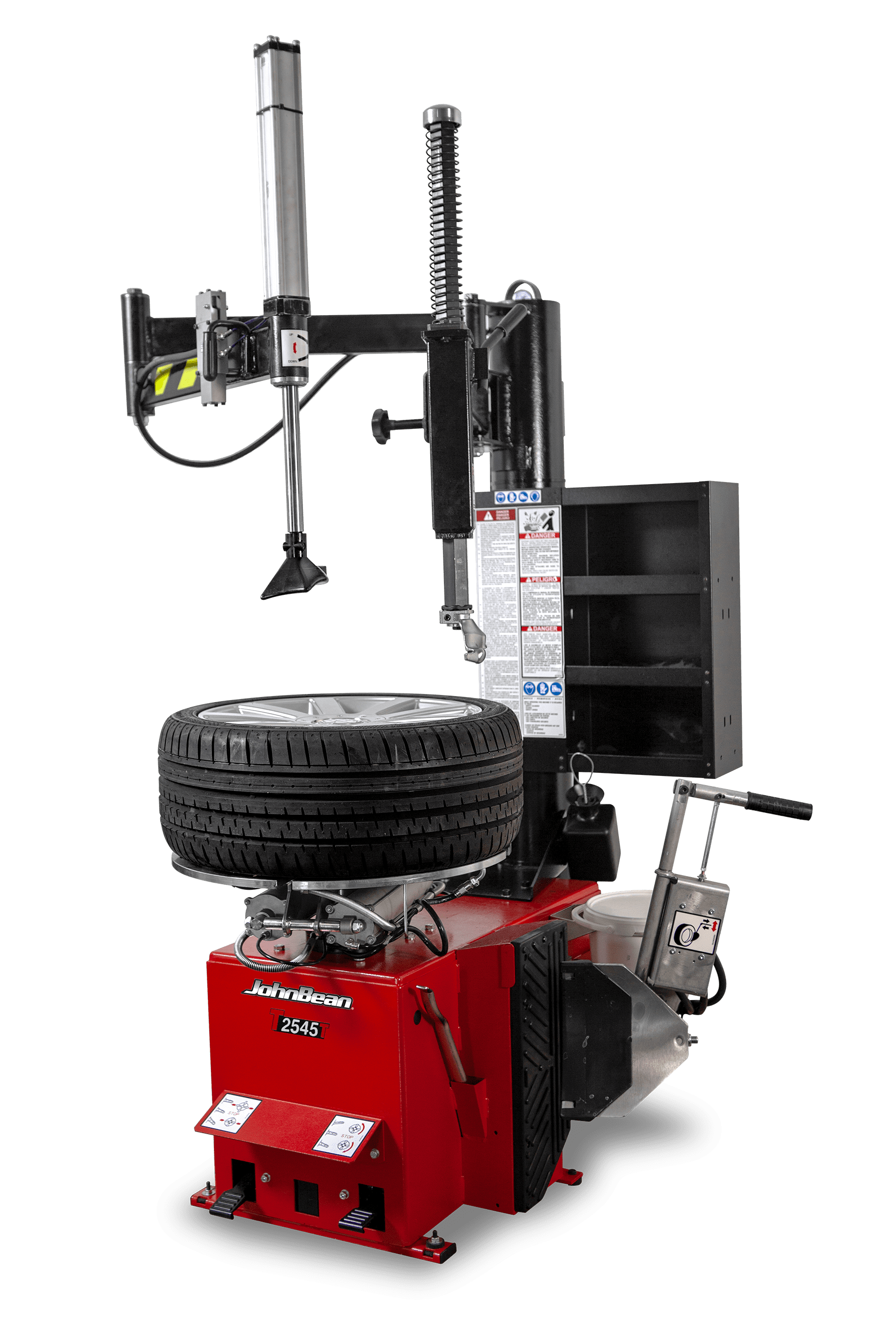

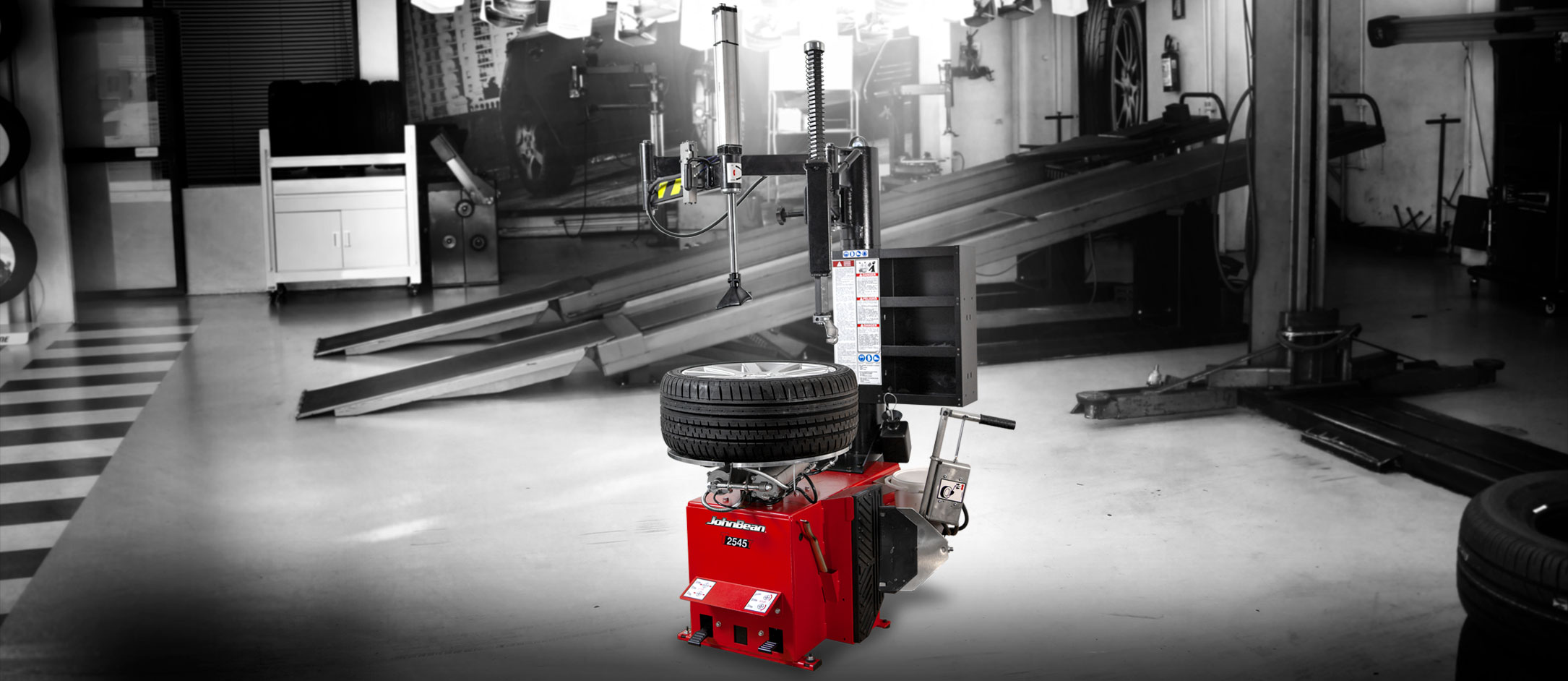

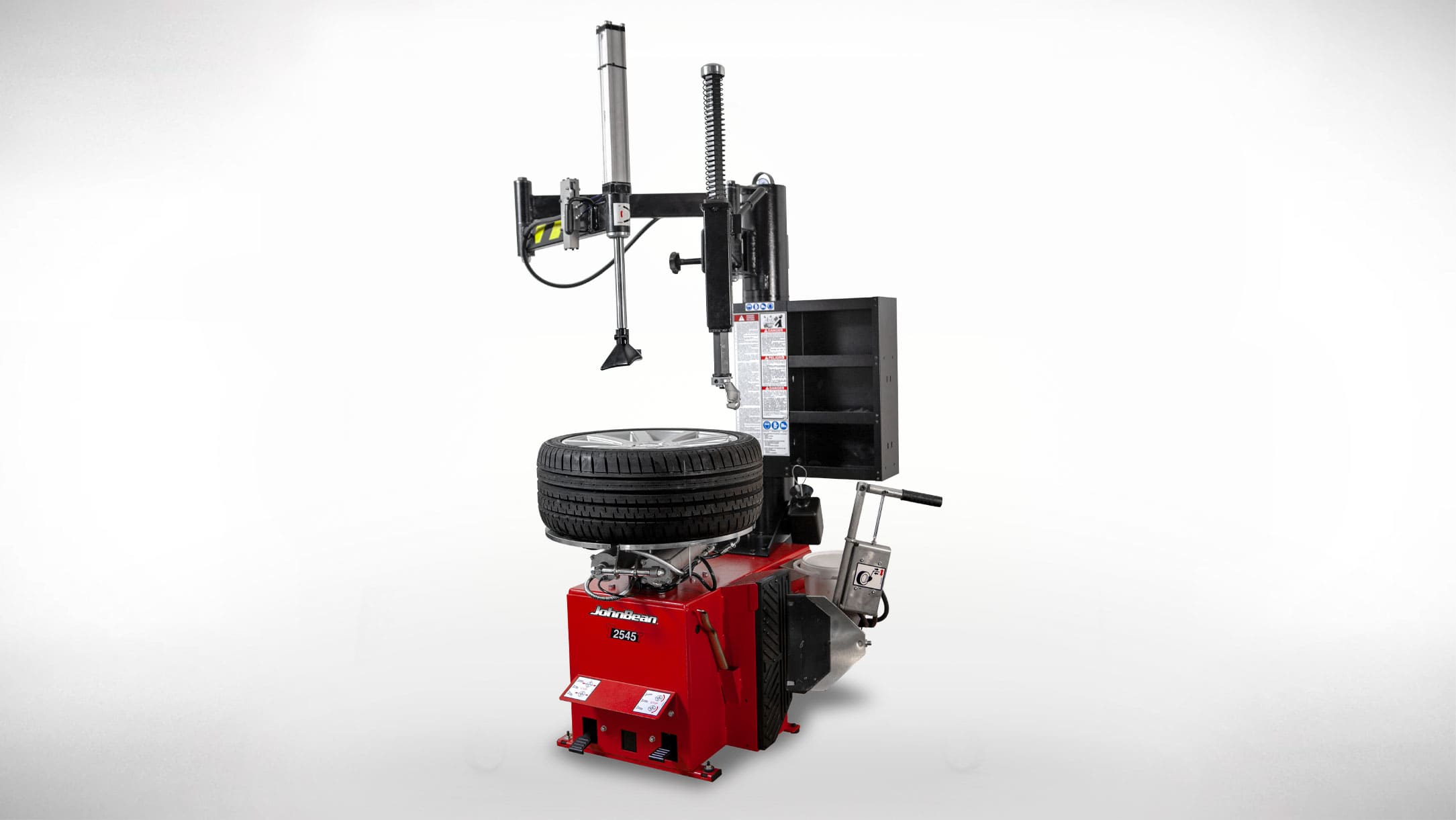

T2545T Swing-Arm Tire Changer

A swing-arm tire changer with robust and durable construction, the John Bean® T2545T pairs traditional design with modern, productivity-boosting features.

Whether you regularly work on passenger cars or light truck assemblies; the John Bean T2545T can help you get the job done quickly and easily. The compact swing-arm design allows for ergonomic placement of wheels and a quick setup time.

Easily break even the toughest beads with the integrated, hand-operated on-floor bead breaker that prevents technicians from having to straddle the wheel. Once the tire is on the turntable, the self-adjusting four-jaw clamp secures the wheel with twin-cylinder clamping force.

PROspeed™ optimizes the rotational speed of the turntable, automatically reducing the risk of tire damage and speeding up the overall tire changing process.

Get it done right and get it done fast with the John Bean T2545T.

VERSIONS

T2545T Single Speed (EEWH584CU2):
This version does not include PROspeed™

Features

SWING-ARM

The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

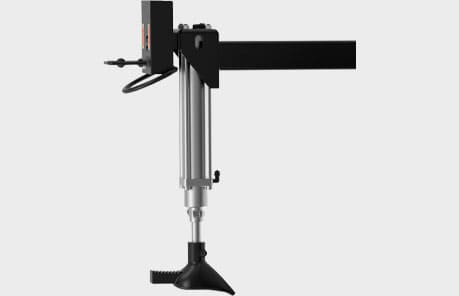

PNEUMATIC BEAD PUSHER

The Pneumatic Bead Pusher assists in the mounting process of the upper bead. Its dual-purpose design offers a reverse-side hook to help lift heavy tires.

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

ADDITIONAL FEATURES

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

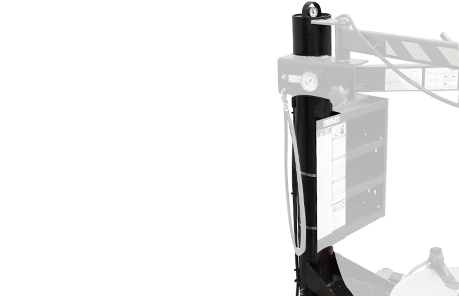

COLUMN-INTEGRATED AIR TANK

Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

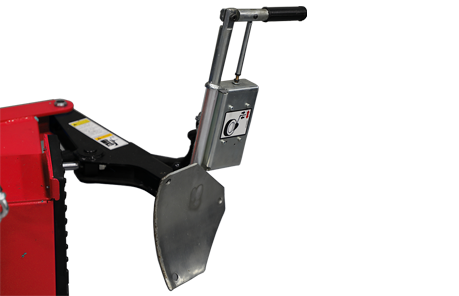

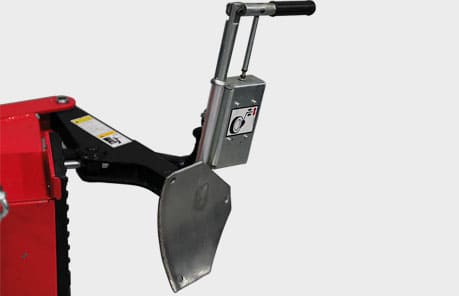

ON-FLOOR BEAD BREAKER (HAND-CONTROLLED)

Pneumatic assist control handle prevents shovel bounce-back with this on-floor bead breaker; the fastest solution for standard, soft sidewall, and high-aspect tires.

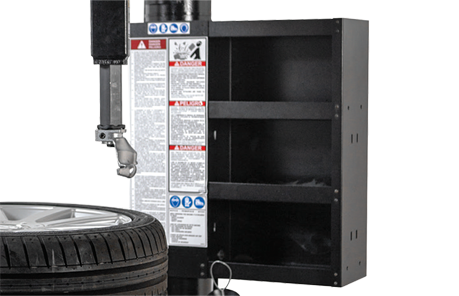

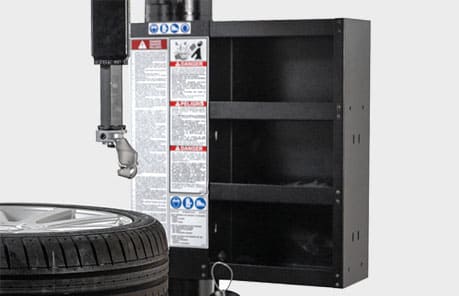

TOOL BOX

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories.

ETL CERTIFICATION

This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1

DOWNLOADS

TECH SPECS

Part Number

EEWH584CU1 – T2545T with PROspeed™

EEWH584CU2 – T2545T Single Speed

Max Rim Diameter

24″  |  61cm

Max Tire Width

15″  |  38cm

Max Rim Width

14″  |  36cm

Max Wheel Diameter

53″  |  135cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

84″x66″x55″  |  213x168x140cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever & Sleeve
Plastic Rim Protector
Bead Breaker Blade Protector
Lube Bucket & Bottle
Lube Brush
Protective Insert for Mount/Demount Head
Plastic Jaw Protector
