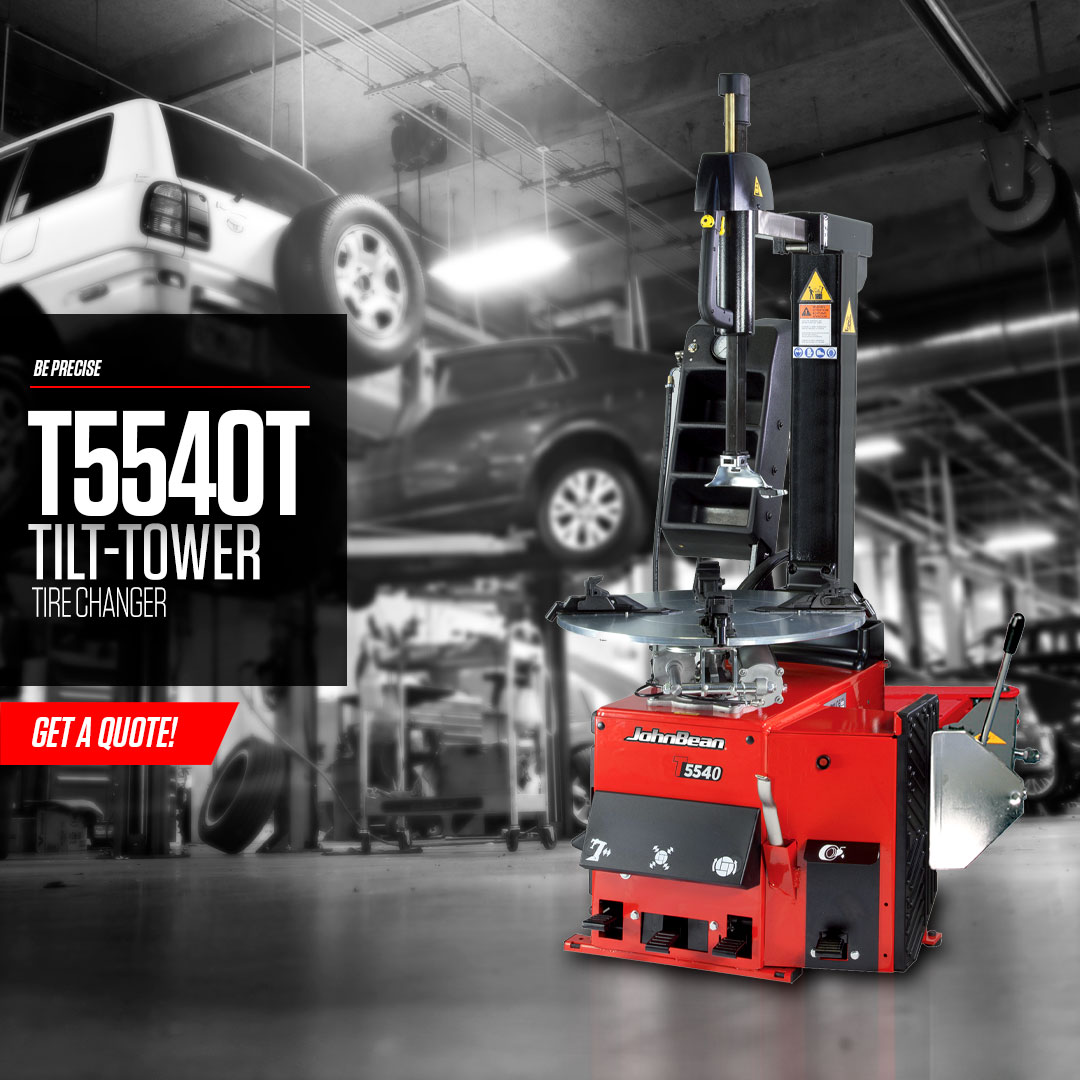

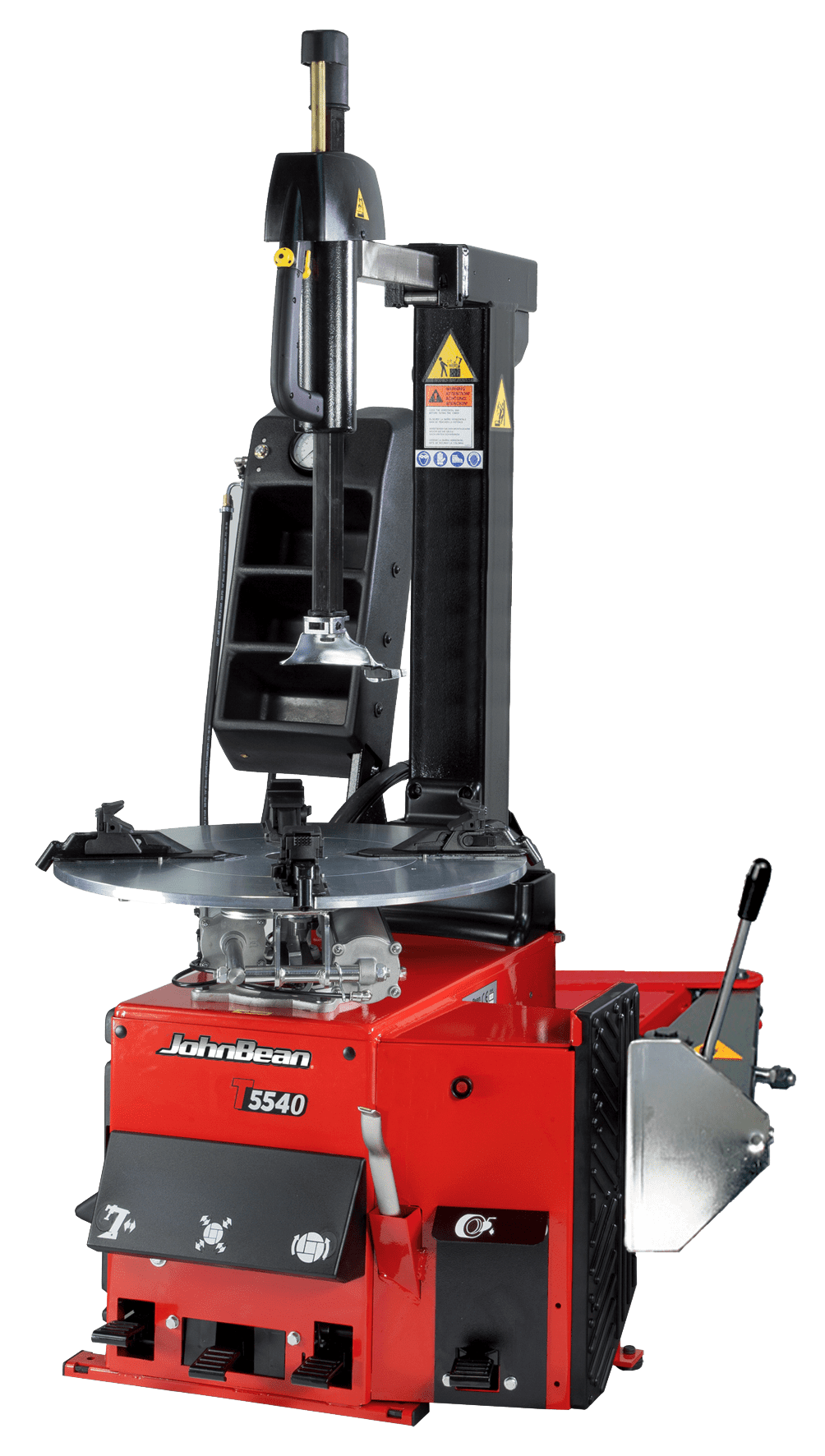

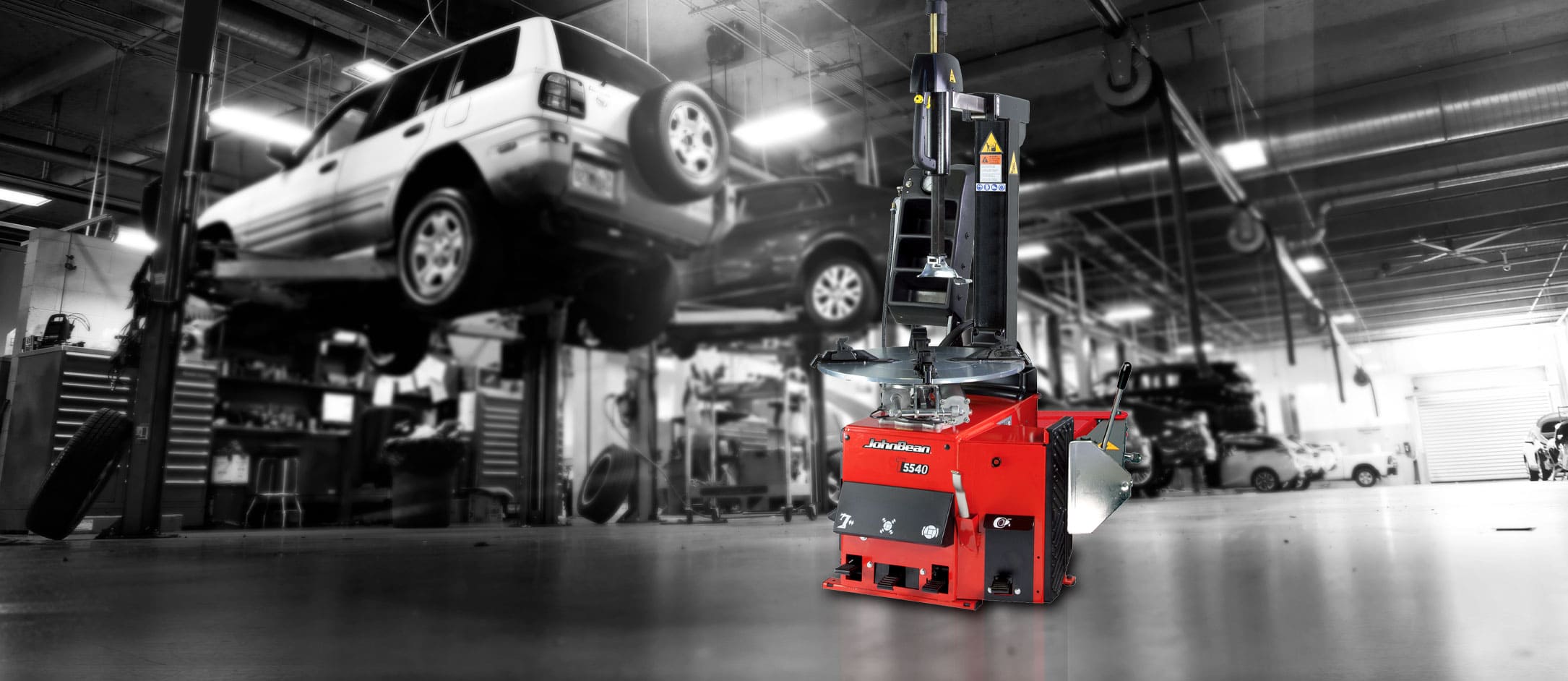

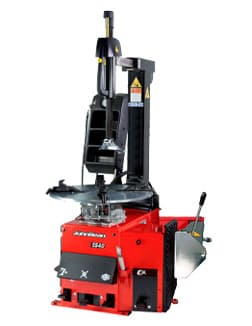

T5540T TILT-TOWER TIRE CHANGER

Boost productivity with features that allow technicians to get more work done in less time; the John Bean® T5540T is the ideal mix of design and innovation.

The tilt-tower design provides maximum operational clearance and self-centering jaws with three manual adjustment positions securely clamp the wheel with the proper setup range, the pneumatic vertical arm provides quick and efficient positioning of the mounting head while the exclusive PROspeed™ system automatically measures torque and manages speed during crucial tire-changing operations. Quickly break beads on all tire types with the ergonomically located pedal-controlled on-floor bead breaker.

To keep everything needed on hand to get the job done right, the T5540T includes a toolbox with an integrated pressure gauge and four shelves for easy storage of tools and accessories.

The T5540T tire changer is ready to boost your shop’s productivity day after day.

Features

TILT-TOWER

The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

ADDITIONAL FEATURES

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

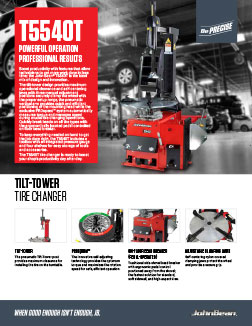

DOWNLOADS

TECH SPECS

Part Number

EEWH573AEE

Max Rim Diameter

24″  |  61cm

Max Tire Width

15″  |  38cm

Max Rim Width

14″  |  35cm

Max Wheel Diameter

39″  |  100cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

64″x66″x49″  |  162x169x126cm

ACCESSORIES

STANDARD

5 kg Lube Bucket Holder
Lube Brush
Plastic Tire Protector
Plastic Caps for Clamping Jaws - Front & Rear
Wave Lever PLUS
Wave Plus Lever Protector
Plastic Protectors for Mounting Head
Jaw Protectors - Front & Rear
Rim Protection and String
Bead Breaker Blade Protector

optional

Quick Exchange Device with Mounting Head
Bead Breaker Blade for Off-Road Wheels
Wheel Lift
MH Tractor Kit
4-inch Jaw Adaptors for Center Type Sliding Jaws
Light Truck Adaptor for Center Type Sliding Jaws
26-inch Motorcycle Adaptor Kit for Center Type Sliding Jaws
Motorcycle Mounting Head
Motorcycle Bead Breaker Blade
Slip-on Shoe
Extension Bead Breaker Arm for Extra-Large Wheels
Roller Board
