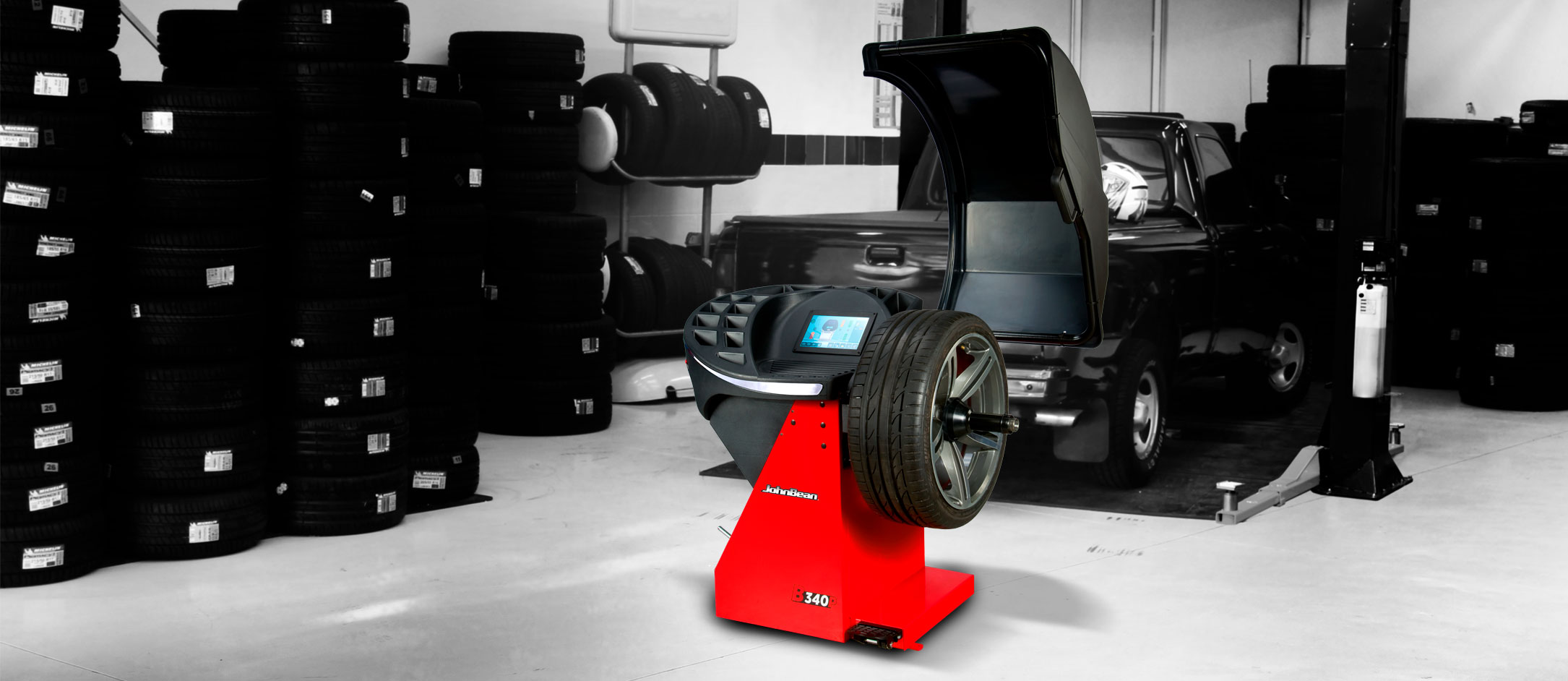

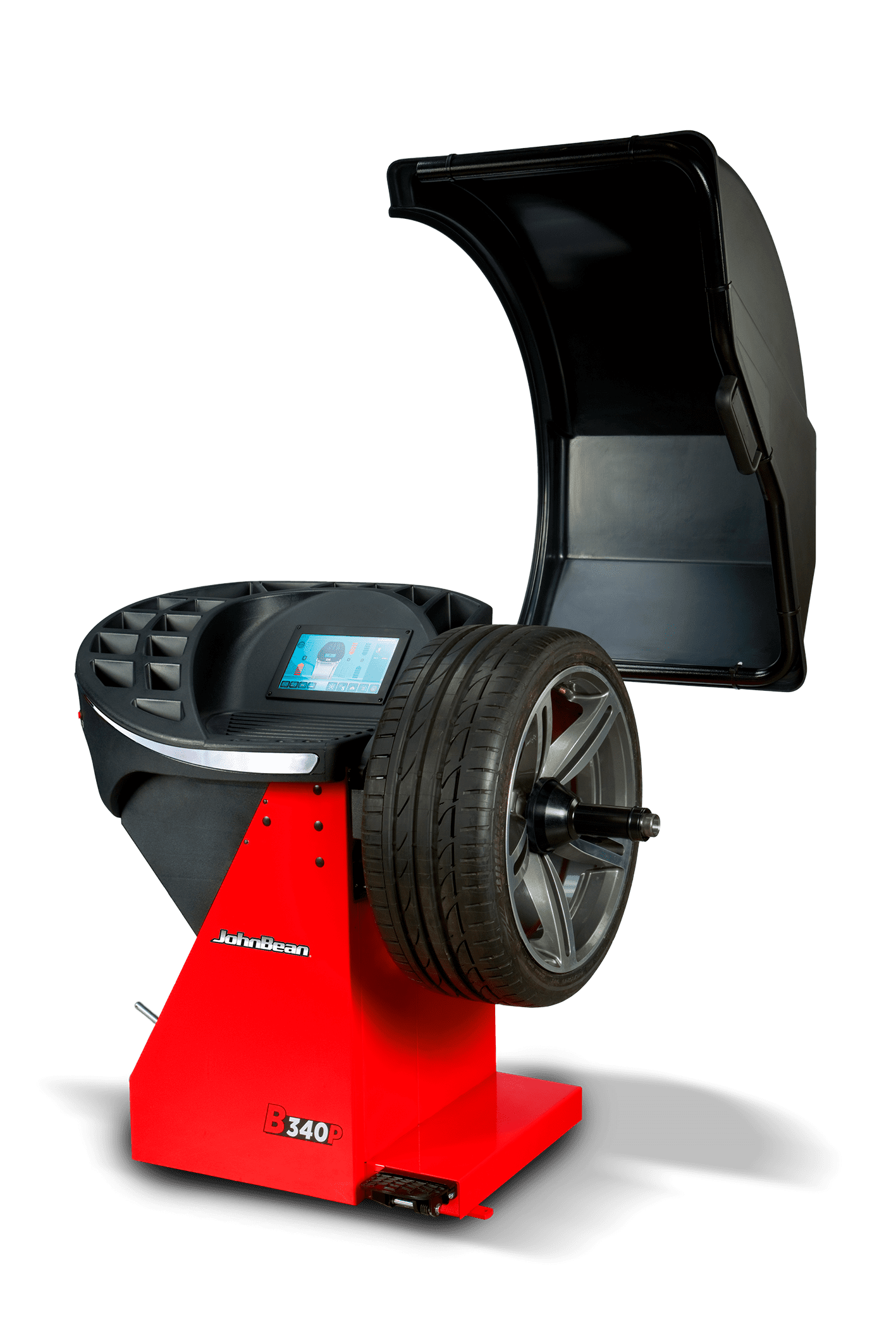

B340P Semi-Automatic Touchscreen Wheel Balancer

The John Bean® B340P wheel balancer combines a user-friendly interface and productivity-enhancing features to help high-volume shops get more jobs done in less time.

Minimizing workflow disruptions and maximizing productivity is challenging for high-volume tire shops, but the B340P is up to the task. This unique system features an integrated weight tray and ergonomic touchscreen monitor with an easy-to-operate user interface.

The software allows for two user configurations, so technicians can take turns while balancing different wheel sets. Productivity enhancing features like smartSonar™, easyWeight™, easyALU™, and Power Clamp™ allow users to move through the wheel balancing process with increased speed and with the highest level of accuracy.

The B340P wheel balancer from John Bean is the perfect addition to shops looking for premium balancing results to increase wheel service profitability.

Features

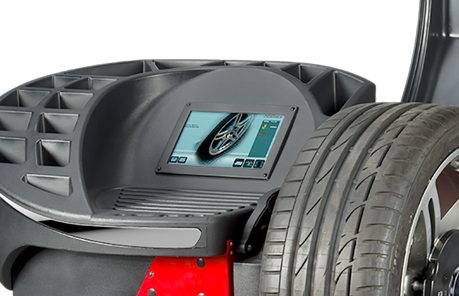

INTEGRATED TOUCHSCREEN MONITOR

This unique design combines the monitor with the weight tray for increased ergonomics and a more convenient wheel balancing operation.

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

POWER CLAMP™

The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.

EASYWEIGHT™

Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.

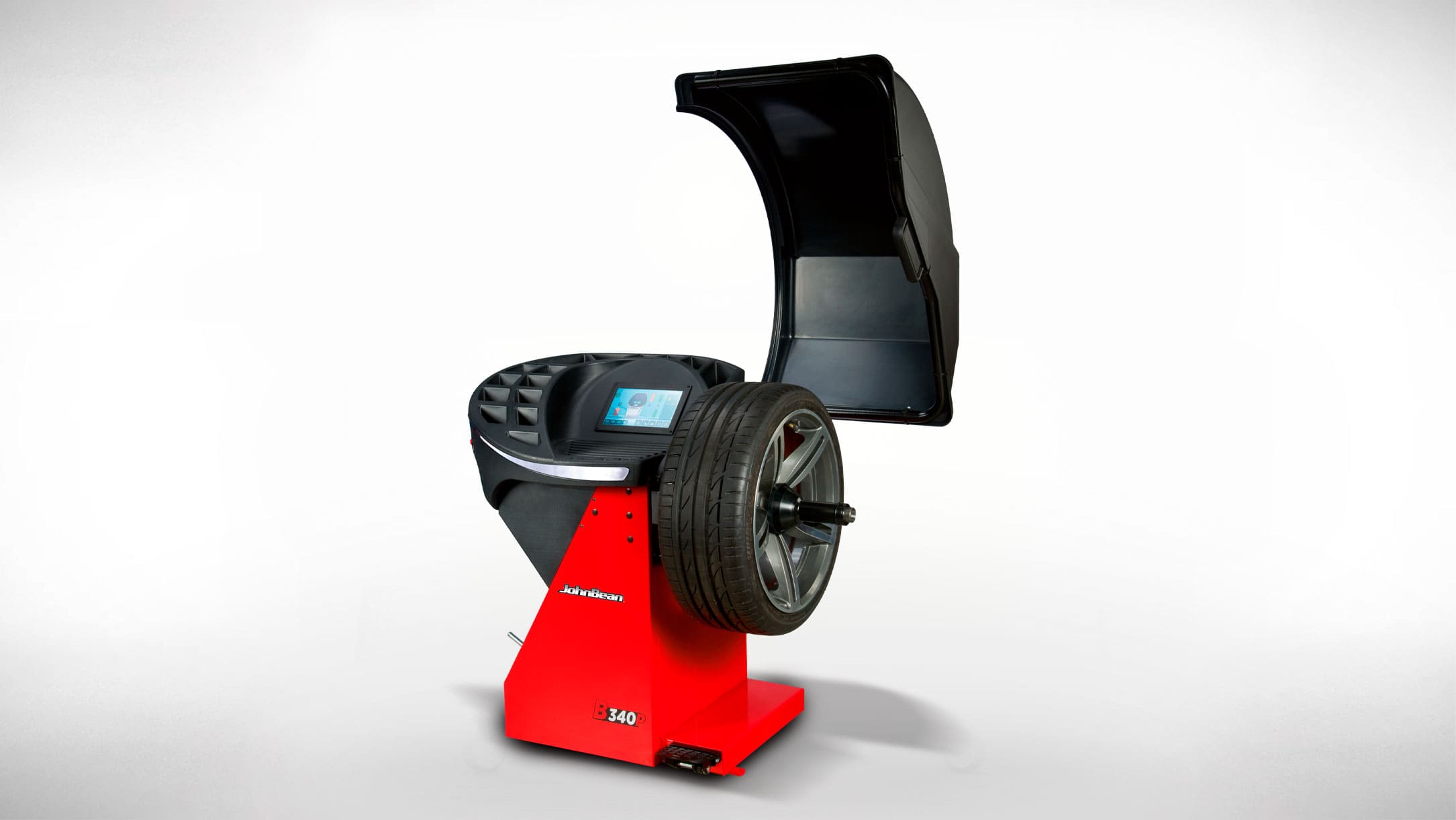

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

STOP IN POSITION

Touch the screen to automatically rotate the wheel to the weight application position.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

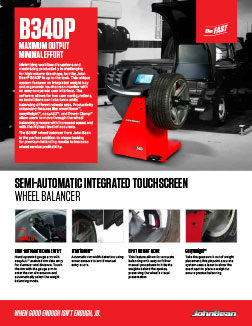

DOWNLOADS

TECH SPECS

Part Number

EEWB581APE7

Wheel Clamping

Power Clamp™

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

SAPE Working Range

1.3″-13″  |  3-33cm

Manual Rim Diameter Range

8″ – 32″  |  20-81cm

Manual Offset Range

1″ – 20″  |  3-51cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

74″x34″x52″  |  188x87x133cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Pegs
Four Cone Set
Weight Pliers
Rim Width Caliper

OPTIONAL

Power Clamp Medium Duty Kit
Standard Tooling Kit
Nine Collet Set
Basic Light Truck Cone Kit
