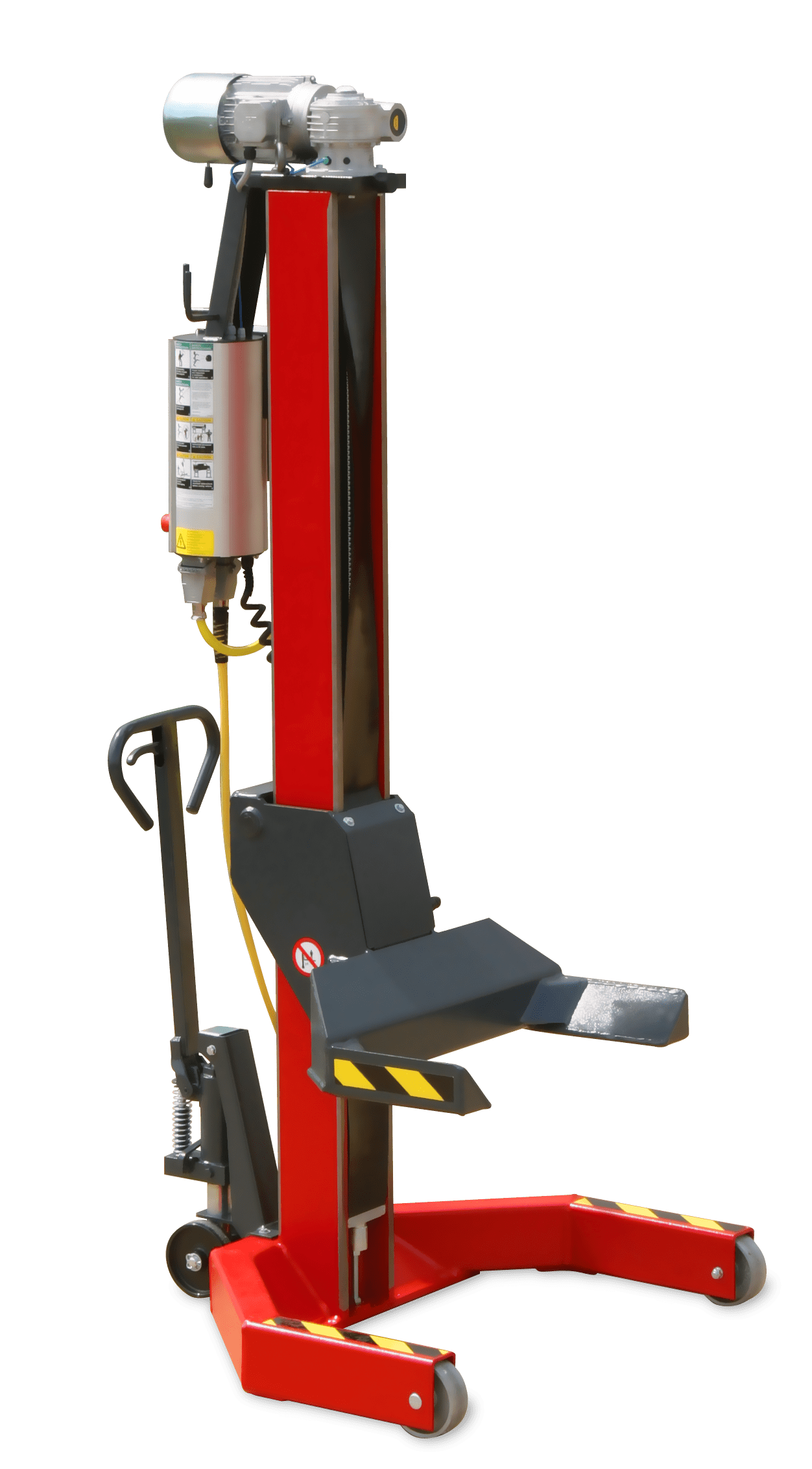

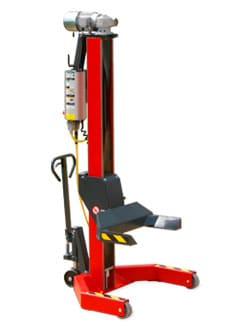

Heavy Duty Mobile Column Lift
The John Bean® Mobile Column Lift System is a powerful, compact, and versatile solution for technicians to work on the most heavy-duty vehicles without a standard work bay.
Designed for easy operation to perform under the extreme demands required by heavy-duty vehicles, the John Bean Mobile Column Lift System is the ideal lift solution for transport fleets, schools, government, and military applications.
Our heavy-duty Mobile Column Lifts support the vehicle to a height of six feet, allowing mechanics to work comfortably, eliminating the risks of standing or lying in uncomfortable positions. The adjustable universal carriage accommodates wheels up to 59-inches in diameter without additional accessories.
The sleek and efficient MCL design provides optimal space for technicians to work around the columns, and each set of Mobile Column Lifts can be conveniently stored in a small area when not in use. Our solid steel I-Beam design can safely hold substantial weight without bending and is easier to move than bulky hydraulic columns.
Every column has additional safety features that go above and beyond certification requirements, equipped with a redundant safety system that includes a wedge lock (the same locking device used on elevators) and an industrial-strength emergency brake. The John Bean Mobile Column Lift System offers heavy-duty lifting in a range of environments to safely and effectively suit the needs of your business.
Comes in sets of two, up to six columns, to provide a lifting capacity up to 108,000 lbs.
Comes in sets of two, up to eight columns, to provide a lifting capacity up to 144,000 lbs.
Comes in sets of two, up to six columns, to provide a lifting capacity up to 96,000 lbs.
Comes in sets of two, up to eight columns, to provide a lifting capacity up to 128,000 lbs.
Comes in sets of two, up to six columns, to provide a lifting capacity up to 72,000 lbs.
Comes in sets of two, up to eight columns, to provide a lifting capacity up to 96,000 lbs.

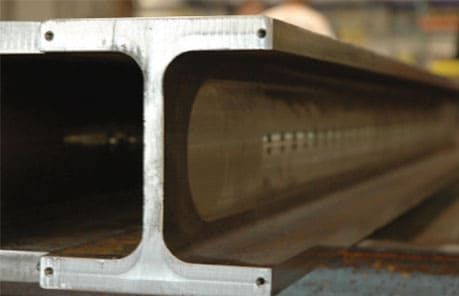

STRONG AND SOLID I-BEAM SUPPORT COLUMN
Our main support column is the only true solid, one-piece I-Beam on the market. Unlike other manufacturers who form and/or weld their columns, our I-Beam column guarantees no welding seams, therefore increasing rigidity and stability by eliminating any risk of weak points or mechanical failure.

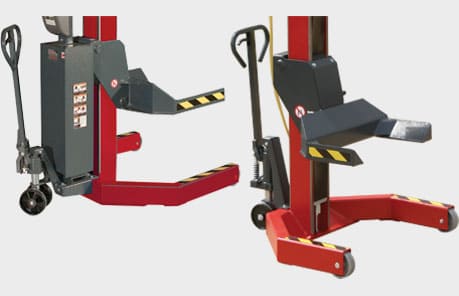

HYDRAULIC JACK TROLLEY
The hydraulic jack trolley allows users to position the Mobile Column in just minutes, resulting in a faster turnaround time.
UNPARALLELED SAFETY FEATURES
Our back-up safety systems give users an added measure of security at all times. In addition to meeting all requirements for certification, our MCL is built with a redundant safety system, each column is fully equipped with a wedge lock and industrial strength brakes. This ensures the lift will never lower in the event of an unlikely primary system failure.
EASY TO OPERATE
LED display with auto diagnostics makes the Mobile Column Lift simple to operate. No master column is needed, with three operation modes. Built-in automatic synchronization feature keeps lifts level and secure at all times.

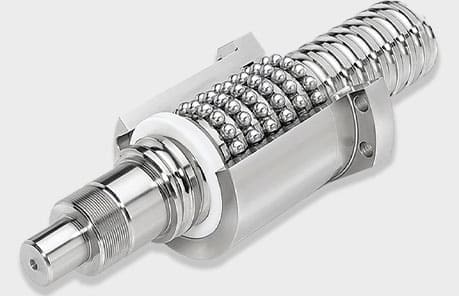

STAINLESS STEEL RE-CIRCULATING BALL-SCREW
Unlike any other Wireless Mobile Column Lift, these mobile lifts operate by the extraordinary power of a stainless steel, re-circulating ball-screw. This unique operating approach eliminates all hydraulics and maintains a natural unison between columns while operating at constant speed.
MCLN182UCB 18k Standard (2 columns) / MCLWRL182UCB Wireless
MCLN184UCB 18k Standard (4 columns) / MCLWRL184UCB Wireless
MCLN186UCB 18k Standard (6 columns) / MCLWRL186UCB Wireless
MCLWRL188UCB 18k Wireless (8 columns)
MCLN162UCB 16k Standard (2 columns) / MCLWRL162UCB Wireless
MCLN164UCB 16k Standard (4 columns) / MCLWRL164UCB Wireless
MCLN166UCB 16k Standard (6 columns) / MCLWRL166UCB Wireless
MCLWRL168UCB 16k Wireless (8 columns)
MCLN122UCB 12k Standard (2 columns) / MCLWRL122UCB Wireless
MCLN124UCB 12k Standard (4 columns) / MCLWRL124UCB Wireless
MCLN126UCB 12k Standard (6 columns) / MCLWRL126UCB Wireless
MCLWRL128UCB 12k Wireless (8 columns)
Lifting Capacity per Column
18,000 lbs. / 16,000 lbs. / 12,0000 lbs. | 8,165 kg / 7,257 kg / 5,443 kg
Standard: Wired / Wireless: 24V Rechargeable Battery
97.5″ | 250cm
Max Lifting Height
69″ | 175cm
Length of Standard Fork
13″ | 33cm
Carriage Adjustment Range
22″-59″ | 56-150cm
up to 59″ | 150cm
Full Cycles at Full Capacity
Standard: N/A / Wireless: 25 Strokes
Full Cycles and 50% Capacity
Standard: N/A / Wireless: 45 Strokes
Complete Charge Cycle
Standard: N/A / Wireless: 8 hours
2HP 208-230V or 440-480V 60 Hz 3Ph
Air Supply Required
Weight Per Column
Standard: 1,042 lbs. | 473 kg / Wireless: 1,250 lbs. | 567kg
