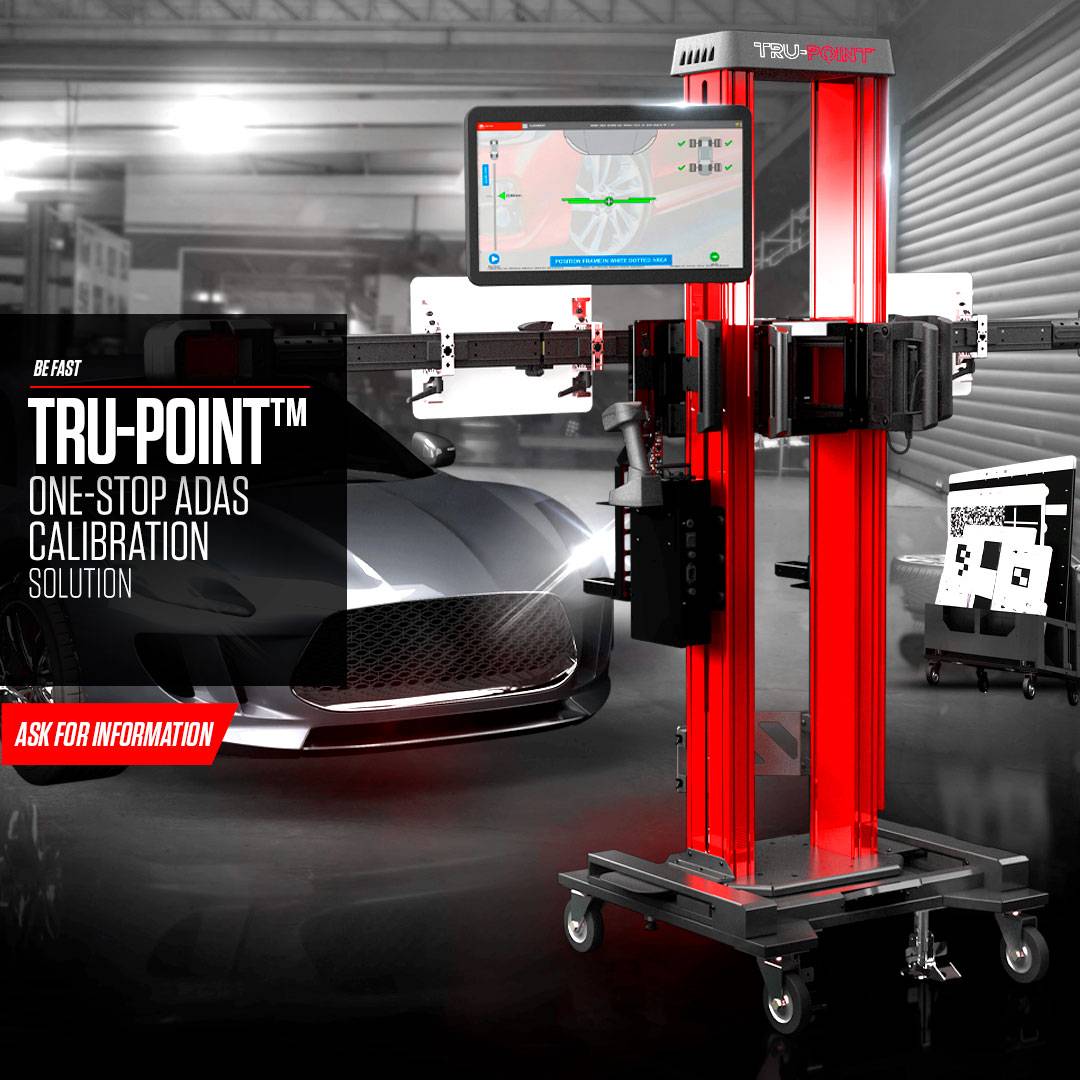

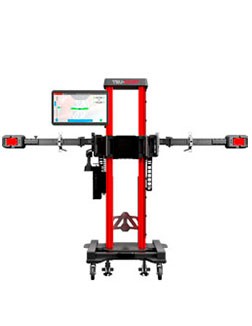

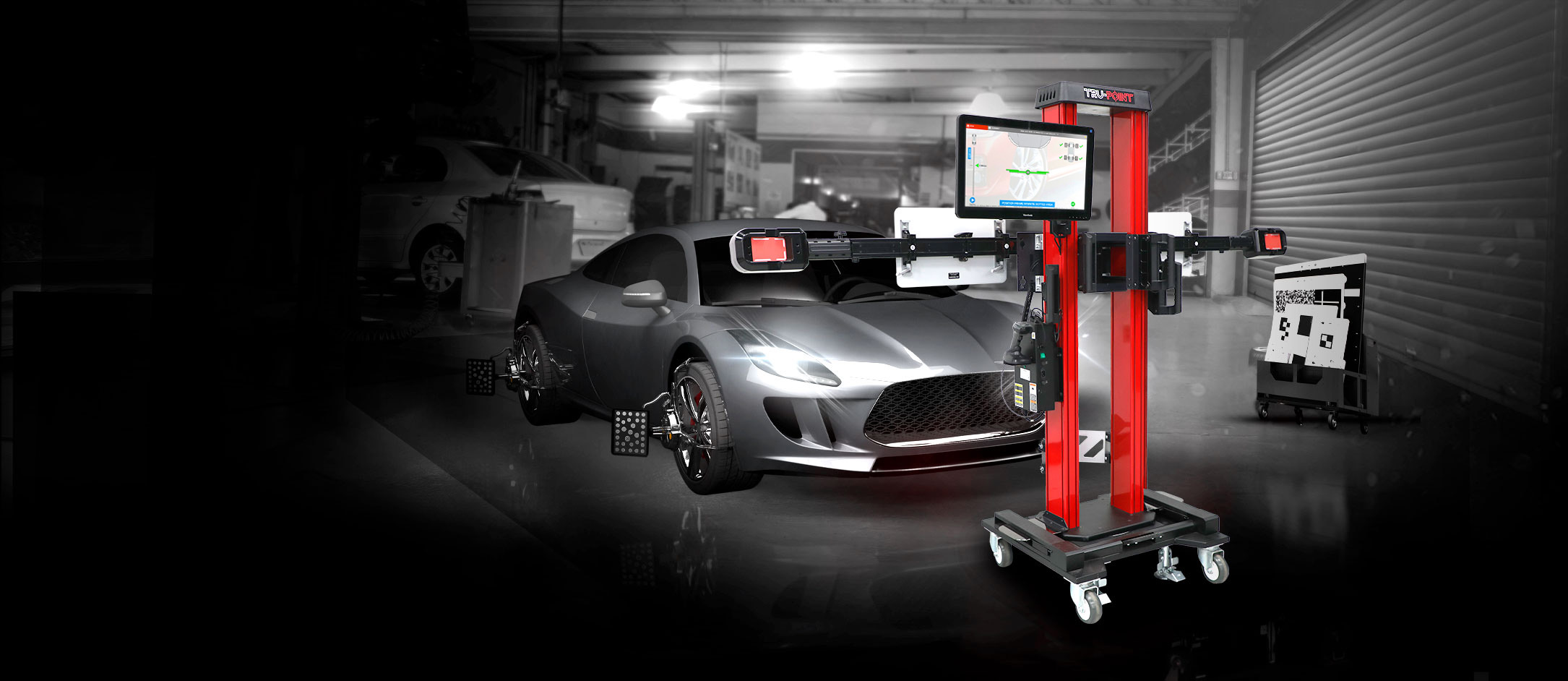

Tru-Point One-Stop ADAS Calibration Solution

Tru-Point™ is the one-stop solution for all of your ADAS calibration needs.

Utilising state-of-the-art camera technology, easy-to-place targets, and advanced software; Tru-Point quickly checks for any alignment issues so your technicians can perform accurate ADAS calibration with ease. Tru-Point advanced technology also eliminates the need for a completely level shop floor and removes the guesswork of manual measurements to allow your technicians the ability to accurately place ADAS targets with ease. Calibrate and prove by combining Tru-Point with any ADAS-capable scan tool to complete calibration, and receive proof of calibration in an easy-to-read report. This is the ultimate in easy ADAS calibration, with the validation you and your customers are looking for.

CHECK
Tru-Point uses highly advanced camera technology to create a 3D image of a vehicle and verify alignment in under a minute. This helps your technicians waste less time performing ADAS calibration for vehicles that do not meet OEM alignment specifications.

PLACE
Streamline the process of placing targets at precise OEM-required locations with Tru-Point technology. Think you need tape measures and a level floor to get the job done? Tru-Point makes this process seamless and guides this process automatically without the need for manuals, guides, or manual inputs.

CALIBRATE
Designed to make life just a little bit easier, Tru-Point works with any ADAS-capable scan tool to complete the calibration process. Worried about constantly changing requirements and servicing newer vehicles? Tru-Point offers on-screen diagnostic tools to ensure you’re able to work on the latest vehicles.

PROVE
Once Tru-Point validates the alignment of the vehicle, placement of the targets, and compliance with OEM specifications; it will generate an easy-to-use report that clearly shows compliance. This ensures that you are putting a safe vehicle back on the road and provides proof to your customer that will put their mind at rest.

Download the Augmented Reality App to see Tru-Point in your shop:

Features

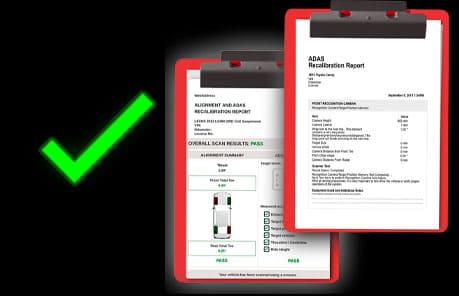

OEM COMPLIANT

Perform a precise recalibration according to the OEM specifications

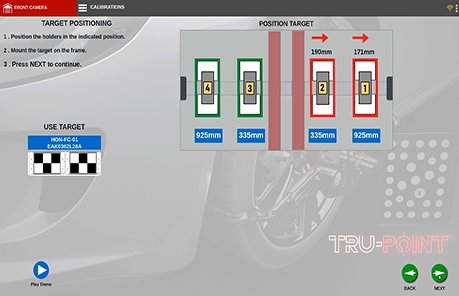

PRECISE TARGET PLACEMENT

A simple colour-coded system allows you to easily identify the exact location for target placement going from red to green.

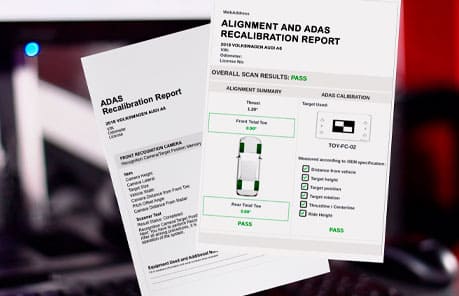

VALIDATION REPORT

Tru-Point™ validates the alignment of the vehicle, placement of the targets, and compliance with OEM specifications.
Thrust Line / Centerline
Distance from Vehicle
Target Rotation
Target Position
Target Height
Ride Height
Alignment
Steering Angle

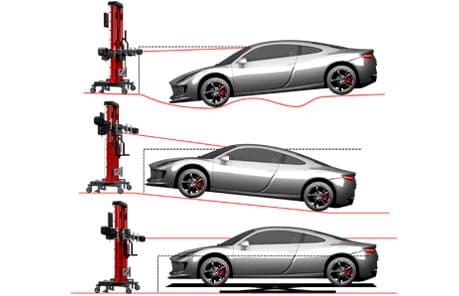

FLOOR COMPENSATION (LEVEL FLOOR NOT REQUIRED)

While most systems function by referencing the height of the vehicle from the shop floor, our system measures the height of the targets from the tyre contact patch of all four wheels, allowing for the vehicle to be calibrated anywhere in the shop; even on an alignment rack.

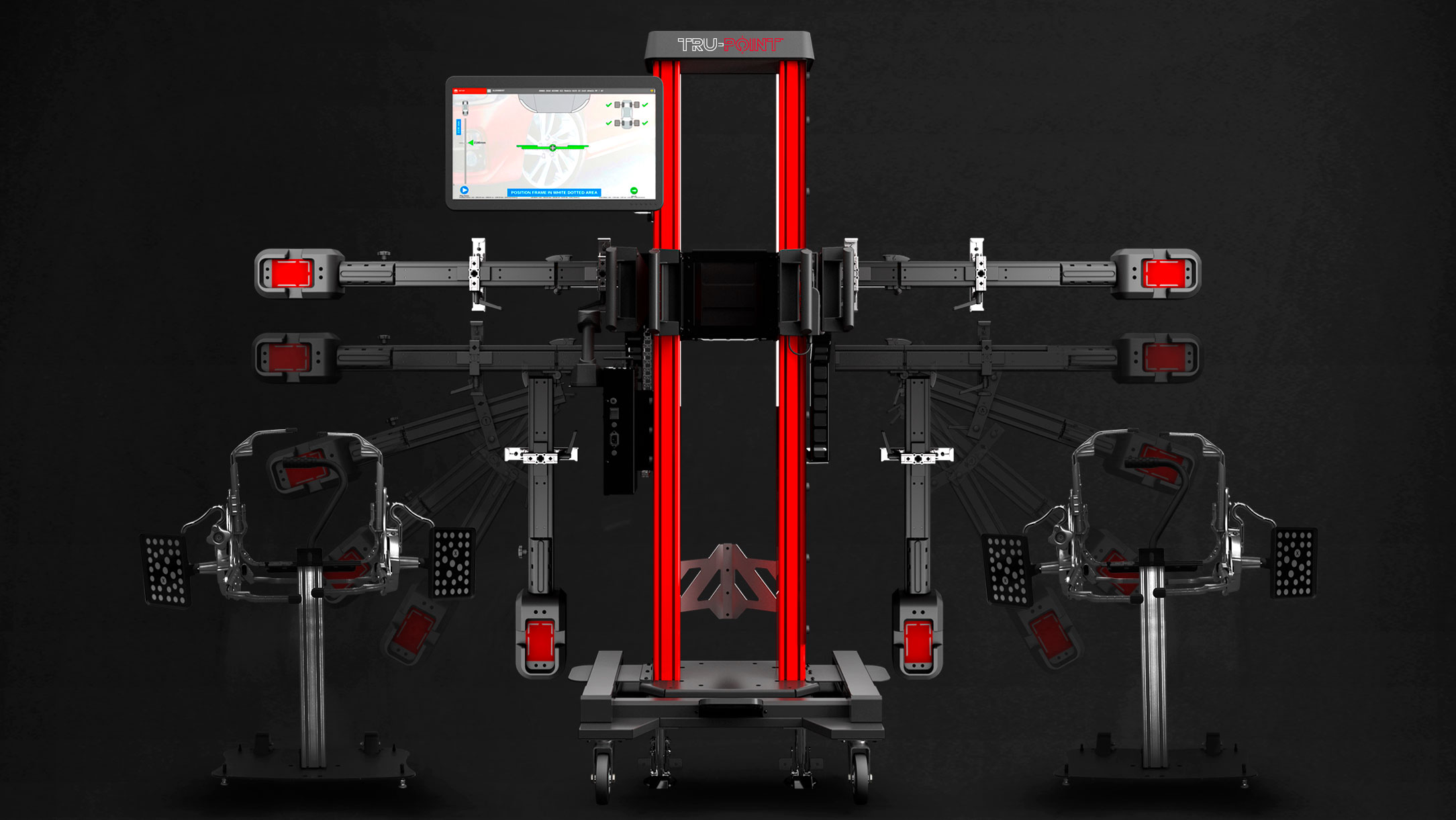

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES

CAMERA SYSTEM

3D modeling capabilities allow the system to replace lasers and tape measures

.

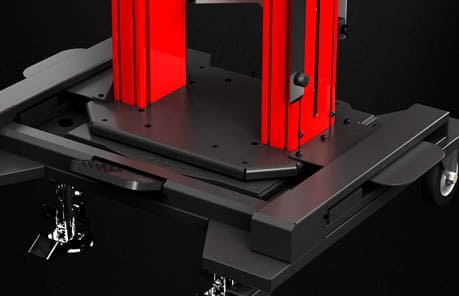

PRECISION BEAM ADJUSTMENT

Integrated with a turntable allowing you to easily perform the fine adjustment on the targets without extra effort

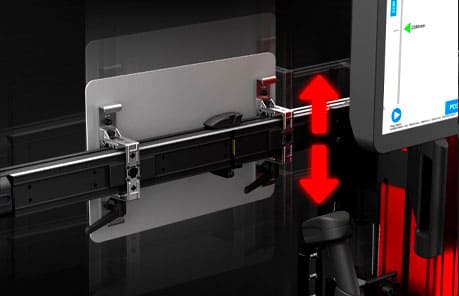

HEIGHT ADJUST

Squeeze trigger on handles and freely move the beam up and down for target height

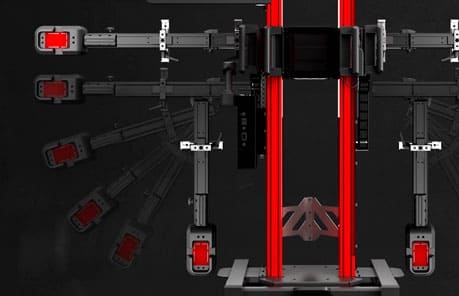

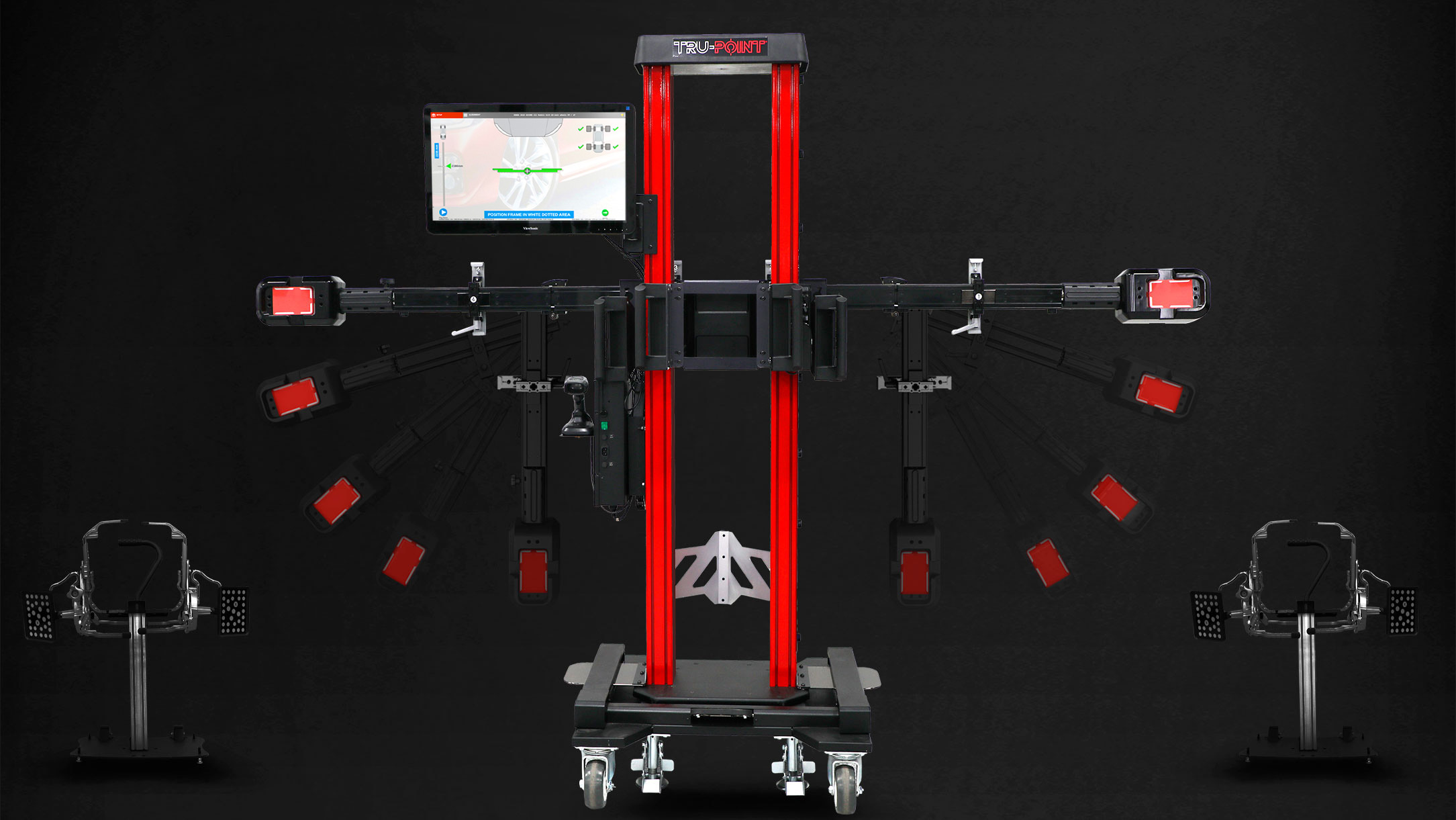

FOLDING ARMS

Provides you with a more compact system that’s easy to store and delivers greater mobility

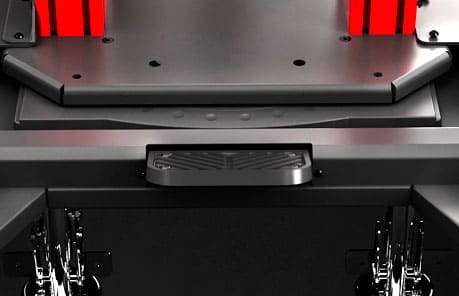

FOOT PEDAL

Allows you to move the beam back and forth without having to move the entire system

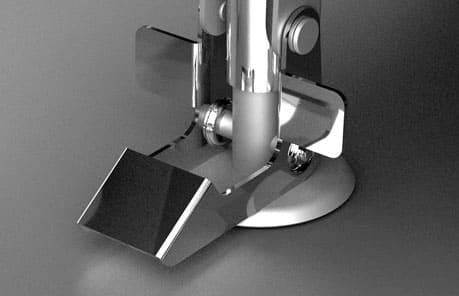

LOCKS

Push down on the locking mechanism, to provide extra stabilization and anchor the base to the floor

RESOURCES

DOWNLOADS

TECH SPECS

Part Number

EESEEU505B

Tyre Size (AC400)

19”-39” | 48.3cm – 99.1cm

Dimensions

82″x113″x30″ | 208x287x76cm – Extended

82″x53″x30″ | 208x135x76cm – Folded

Weight

512 lbs. | 232.2 kg – Shipping

376 lbs. | 170.5 kg – Equipment

Power requirements

100-240V

Display

24” TFT

ACCESSORIES

STANDARD

2x-Wheel-Chock
Two Wheel Chocks
AC400 Clamps
ez adas
EZ-ADAS
