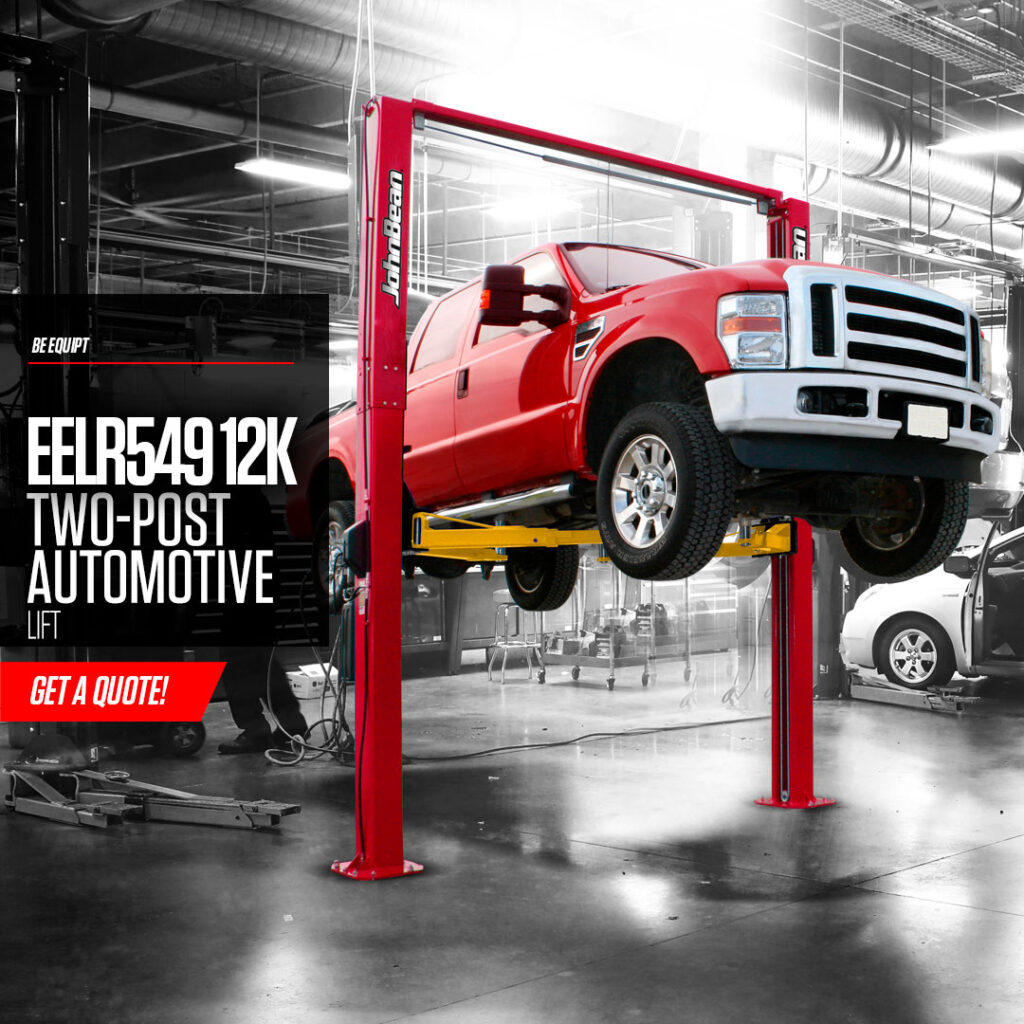

EELR549 12K Two-Post Automotive Lift

For shops that work on various cars and trucks, looking for the ultimate power and precision in a superior two-post design, the John Bean® EELR549 12k Two-Post Lift can stand up to the demand.

Ready to handle loads of 12,000 pounds, the John Bean EELR549 12k Two-Post Lift can handle a wide variety of light to medium-duty applications for today’s modern shop, providing symmetric lifting capability with adjustable height for higher profile vehicles. Heavy-duty two-stage front and rear arms work with a standard set of screw pads and adapters to lift most vehicles in mere seconds. A padded overhead shut-off bar instantly stops the lift to protect the vehicle from damage, and rubber guards on the columns provide additional protection for car doors.

The John Bean EELR549 12k Two-Post Lift will get the job done, day in and day out.

Features

TWO-STAGE ARMS

Heavy-duty two-stage arms enable a wide range of symmetric lifting.

ADJUSTABLE HEIGHT EXTENSION

Increase your service capability to work on taller vehicles, including the largest trucks, SUVs, and cargo vans, with our two-foot column height extension.

SHUT-OFF BAR

The safety shut-off bar prevents damage to the top of a vehicle, immediately stopping the lift when it is touched.

ADJUSTABLE URETHANE SCREW PADS

Heavy-duty polyurethane pad provides ample surface area to the vehicle frame and the telescoping feature provides simple access to factory-recommended lift points.

ADDITIONAL FEATURES

VEHICLE PROTECTION

Standard dual-integrated rubber door guards help protect vehicle panels from inadvertent damage.

ALI CERTIFIED

Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.

DOWNLOADS

TECH SPECS

Part Number

EELR549AB

Lifting Capacity

12,000 lbs.  |  5,443 kg

Configuration

Symmetric

Overall Width

140″  |  356cm

Overall Height

Standard: 166″-175″  |  421-445cm

Max Lifting Height

Surface Mount: 78″  | 198cm

Lifting Time

61 seconds

Power Requirements

2HP 208-230V 60 Hz 1Ph

Air Supply Required

90-120 PSI  |  6-8 BAR

Shipping Weight

Standard:

Minimum Recommended Bay Size WxL

Standard: 14′ x 24′  |  427 x 732cm
