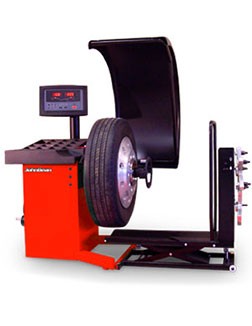

9800 Heavy-Duty Wheel Balancer
The John Bean® 9800 is a heavy-duty wheel balancer designed to handle truck and bus wheels and tire assemblies. It includes a robust pneumatic wheel lift that reduces the chance of injury and minimizes operator fatigue. A semi-automatic data entry arm detects the rim offset and wheel diameter measurements.
To fit a wide variety of heavy-duty wheels, the 9800 also comes with adapters that offer hub-piloted wheels and professional four and five-star centering arms.
If you work on heavy-duty vehicles, the 9800 wheel balancer from John Bean is the workhorse you need to get the job done right.
Features
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/quick-nut-feature.png)
QUICK NUT WHEEL CLAMP OPTIONAL
An easy-to-use manual clamping device that allows a fast and secure attachment of the wheel to the balancer shaft.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/semi-automatic-data-entry.png)
SEMI-AUTOMATIC PARAMETER ENTRY
Optimize the assembly of the tire on the rim and reduce the amount of necessary weight.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/09/SPLIT-WEIGHT-MODE.jpg)
SPLIT WEIGHT MODE
This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/07/Self-Calibration.png)
SELF-CALIBRATION
The self-calibration feature allows users the ability to recalibrate the machine in just two steps, avoiding costly service calls.
ADDITIONAL FEATURES
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/monitor-with-digital-led-display-B9800.png)
MONITOR WITH DIGITAL LED DISPLAY
Raised monitor with intuitive LED display and control panel.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/pneumatic-loading-device-B9800.png)
PNEUMATIC LOADING DEVICE
This lift helps facilitate the clamping of heavy truck wheels and offers ample storage space for cones, centering stars, and wing nuts.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/03/Gauge-arm-with-weight-clamp-1024x657.png)
GAUGE ARM WITH WEIGHT CLAMP
The gauge arm guides the technician to the correct position inside the rim and is equipped with a patented wheel weight clamp to hold the weight in the correct position during weight placement.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/08/9800-picture-in-the-middle.jpg)
TECH SPECS
Part Number
EEWB543AW
Wheel Clamping
Quick Nut
SAPE Rim Diameter Range
8″-26″ | 20-66cm
SAPE Rim Width Range
2″-20″ | 20-51cm
Max Wheel Diameter
51″ | 130cm
Max Wheel Weight
550 lbs. | 250 kg
Power Supply
230V 50/60Hz
Dimensions HxWxL
76″x55″x54″ | 193x140x137cm
Net Weight
525 lbs. | 238 kg
