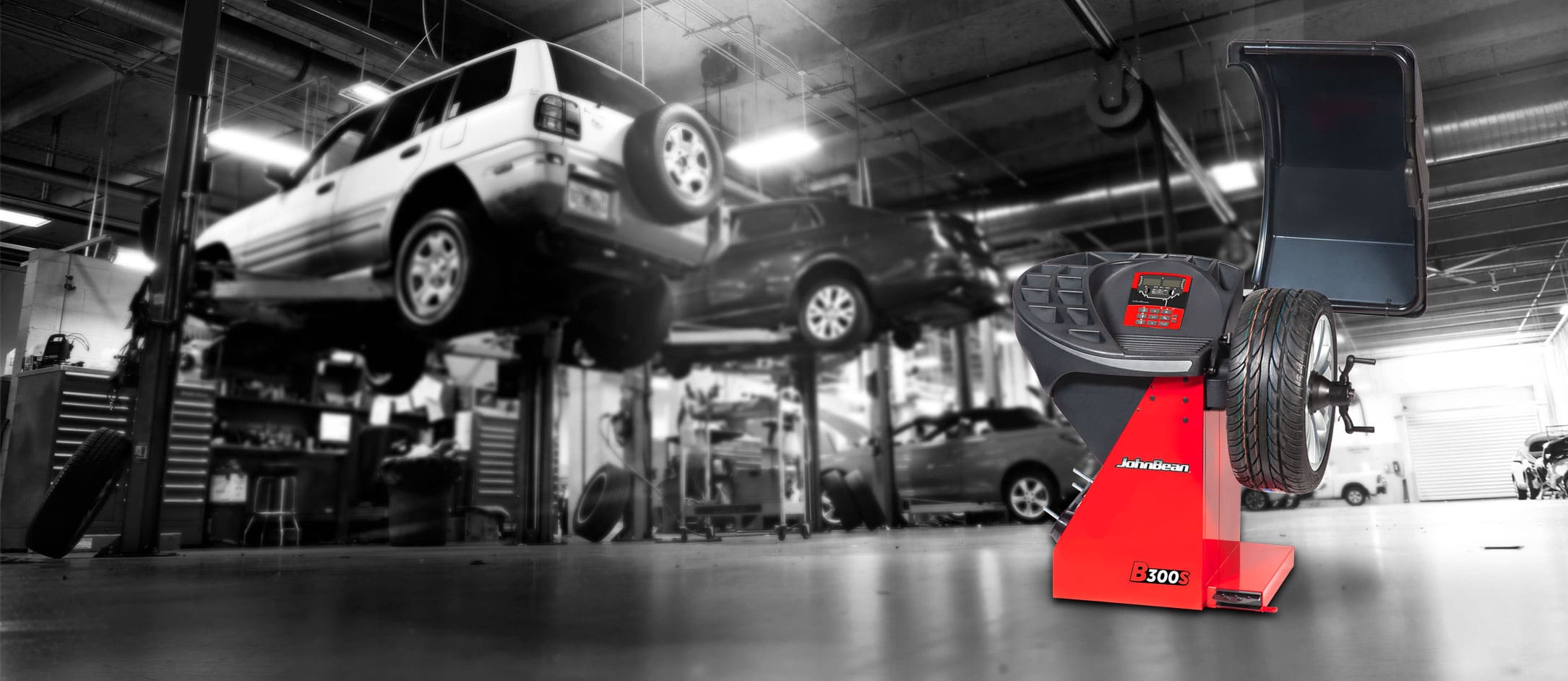

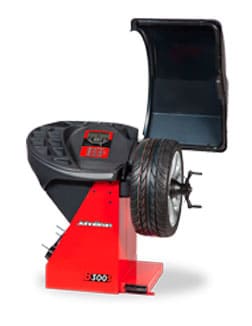

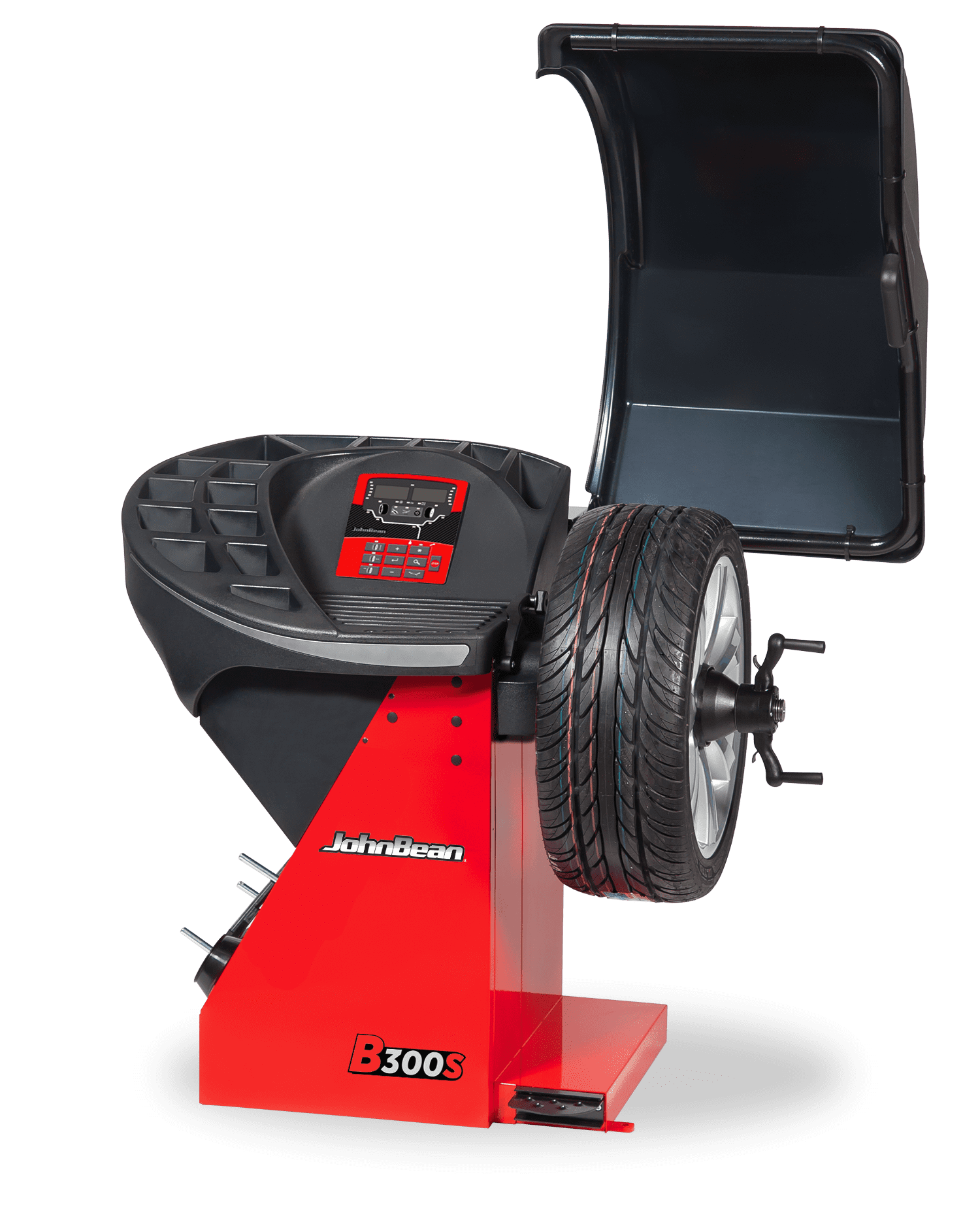

Semi-Automatic Integrated Digital Display Wheel Balancer

The B300S wheel balancer from John Bean® is a semi-automatic wheel balancing machine that is ready to get the job done.

With an LED display and control panel integrated into the weight tray, the B300S provides accurate results in an uncomplicated machine. The B300S makes the balancing process easier with smartSonar™ technology which identifies the width of the wheel and automatically enters it into the system.

Keep your shop equipped and get more wheel service jobs done, increase your profits with the John Bean B300S wheel balancer.

Features

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

QUICK NUT WHEEL CLAMP

An easy-to-use manual clamping device that allows a secure attachment of the wheel to the balancer shaft.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

ADDITIONAL FEATURES

INTEGRATED DIGITAL LED DISPLAY

Ergonomic weight-tray-integrated touchpad operation with intuitive LED display.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

DOWNLOADS

TECH SPECS

Part Number

EEWB566AS

Wheel Clamping

Quick Nut

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

SAPE Working Range

1.3″-13″  |  3-33cm

Manual Rim Diameter Range

8″ – 32″  |  20-81cm

Manual Offset Range

1″ – 20″  |  3-51cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

72″x34″x52″  |  183x87x131cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Three Centering Cone Set 42-116mm
Weight Pliers
Weight Remover
Clamping Cone with Rubber Cushion
Calibration Weight
4 Storage Pegs
Quick Nut

OPTIONAL

Light Truck Kit - Spacer and Cone 122-172mm
Nine Collet Set
External Insulation Transformer
