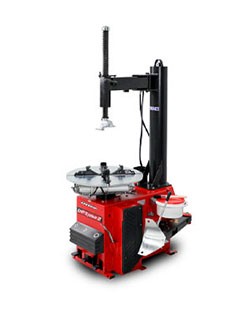

System II-E Swing Arm Tire Changer
Keep high-revenue tire business in-house and work faster without compromising safety or wheel protection by adding the John Bean® System II-E swing-arm tire changer to your shop.
Today’s modern cars, trucks, and SUVs come with a wide variety of hard-to-service wheel and tire combos, but the John Bean System II-E swing-arm tire changer is up to the task.
The System II-E allows you to work on a wide range of tires, up 12 inches in width and 40 inches in diameter. An ergonomic pedal-operated on-floor bead breaker allows technicians to work with tires all the way up to 13 inches with ease.
Powered by twin cylinders, nylon-covered clamping jaws make quick work of holding large wheels in place on the turntable while minimizing the chance of damage.
Big features, packed in a shop-friendly footprint – the System II-E is the workhorse you need.
The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.
ADJUSTABLE CLAMPING JAWS
Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.
ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)
Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.
COLUMN-INTEGRATED AIR TANK
Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.
TABLETOP BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
Max Rim Diameter
24″ | 61cm
Max Tire Width
13″ | 33cm
Max Rim Width
12″ | 31cm
Max Wheel Diameter
40″ | 100cm
Wheel Lift Capability
154 lbs. | 70 kg
115V 1ph 60Hz 12A
Air Pressure Required
116-174 PSI | 8-12 bar
Manual Rim Diameter Range
8″ – 32″ | 20-81cm
71″x45″x55″ | 180x114x140cm
