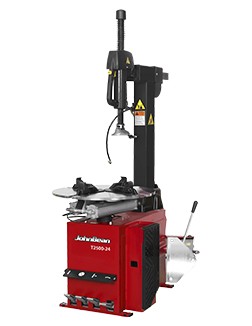

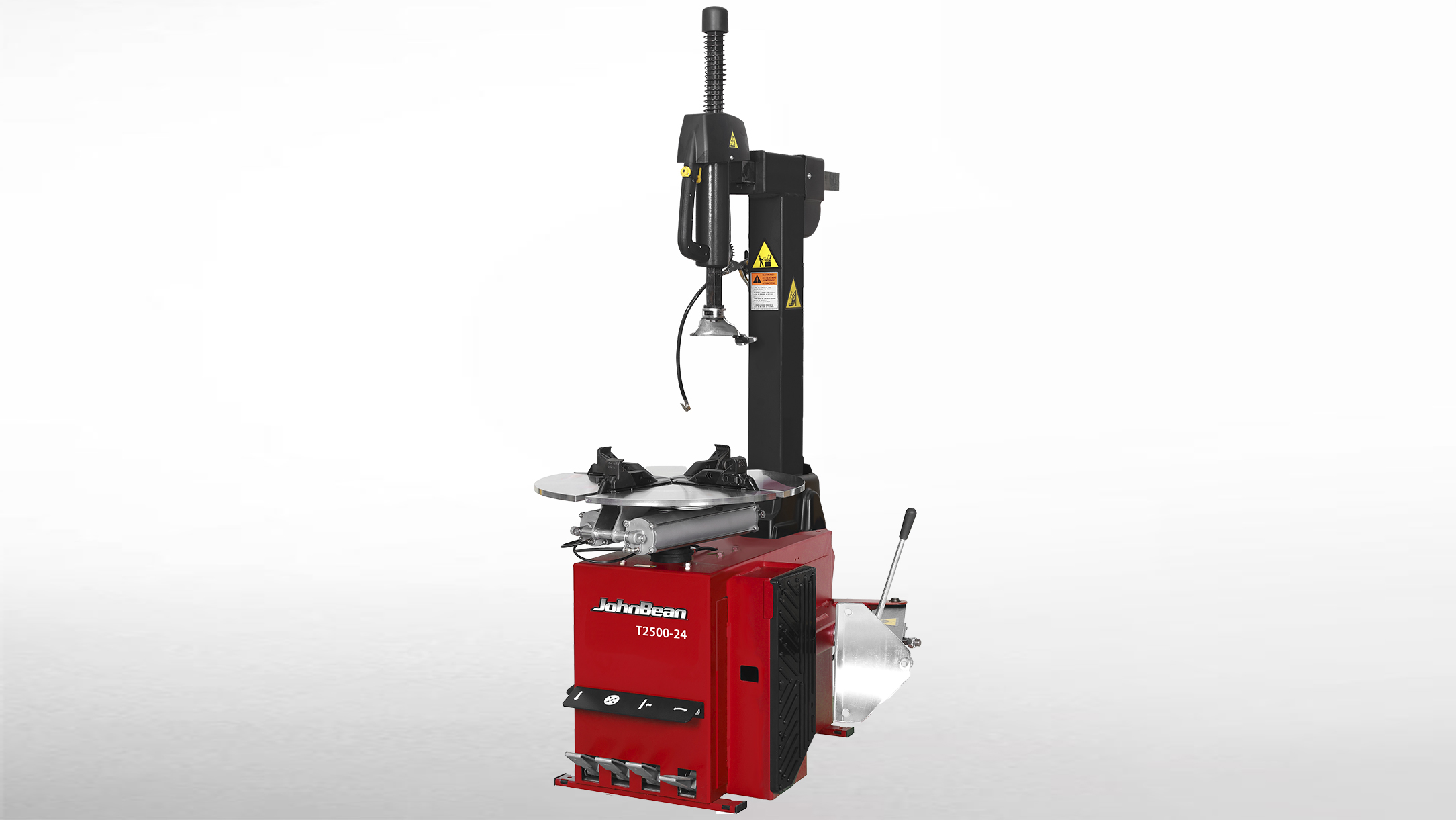

T2500-24 Tilt-Tower tire changer

The T2500-24 from John Bean® brings dependable power and ergonomic design to busy automotive workshops.

Its rugged tilt-back post design delivers consistent torque and reduced stress, even when working with stubborn or hard-sidewall tires. Plastic-protected mount and demount tools safeguard alloy wheels, while the self-centering four-jaw turntable—driven by twin clamping cylinders—ensures a secure hold every time.

Built with technician safety in mind, the T2500-24 features a strategically positioned bead breaker pedal that reduces the risk of accidental activation. A pressure limiter, integrated air filter, and oil reservoir maintain performance and extend machine life.

With its durable construction, smart safety features, and operator-friendly controls, the T2500-24 is a strong, reliable solution for modern tire service needs.

Features

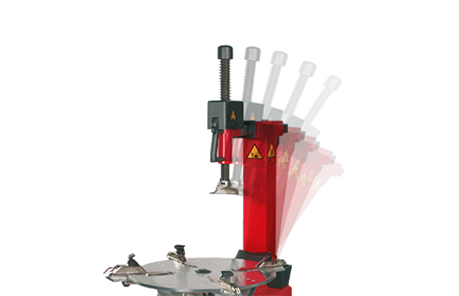

Tilt-Tower

The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.

Pneumatic Vertical Arm

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

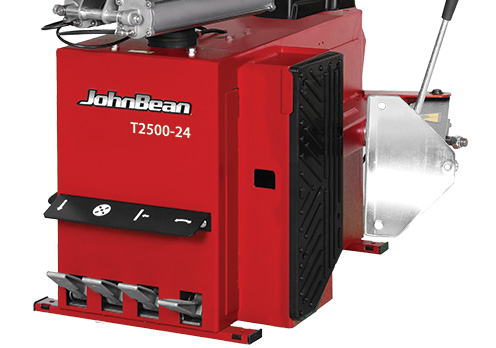

On-Floor Bead Breaker (Pedal-Operated)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

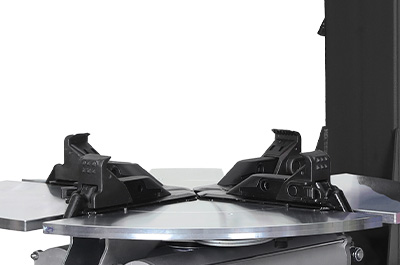

Adjustable Clamping Jaws

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

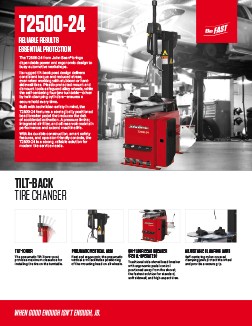

DOWNLOADS

TECH SPECS

EEWKS543DC3 T2500-24

Max Tire Diameter
39″ | 1,000mm

Max Tire Width
13″ | 330mm

Max Rim Width
12″ | 304mm

Outer Clamping Range
10″ – 24″ | 254 – 609mm

Inner Clamping Range
12″ – 24″ | 304 – 609mm

Chuck Speed
6.5rpm

Compressed Air Supply
8 – 12 bar | 110 – 170 psi

Power Supply
230V, 1Ph, 50/60Hz, 1kW
400V, 3Ph, 50Hz, 0.5kW

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Plastic Rim Protector
