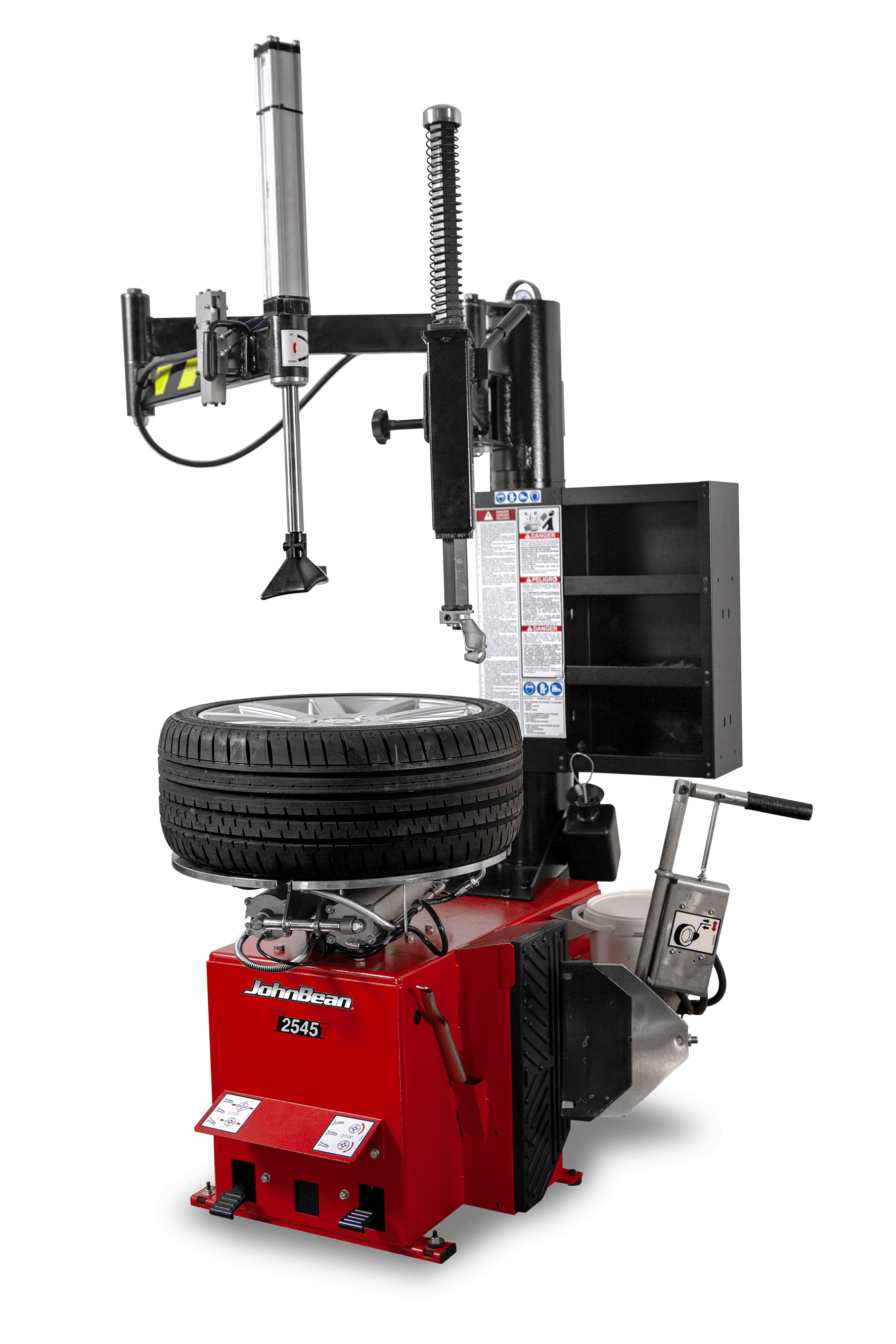

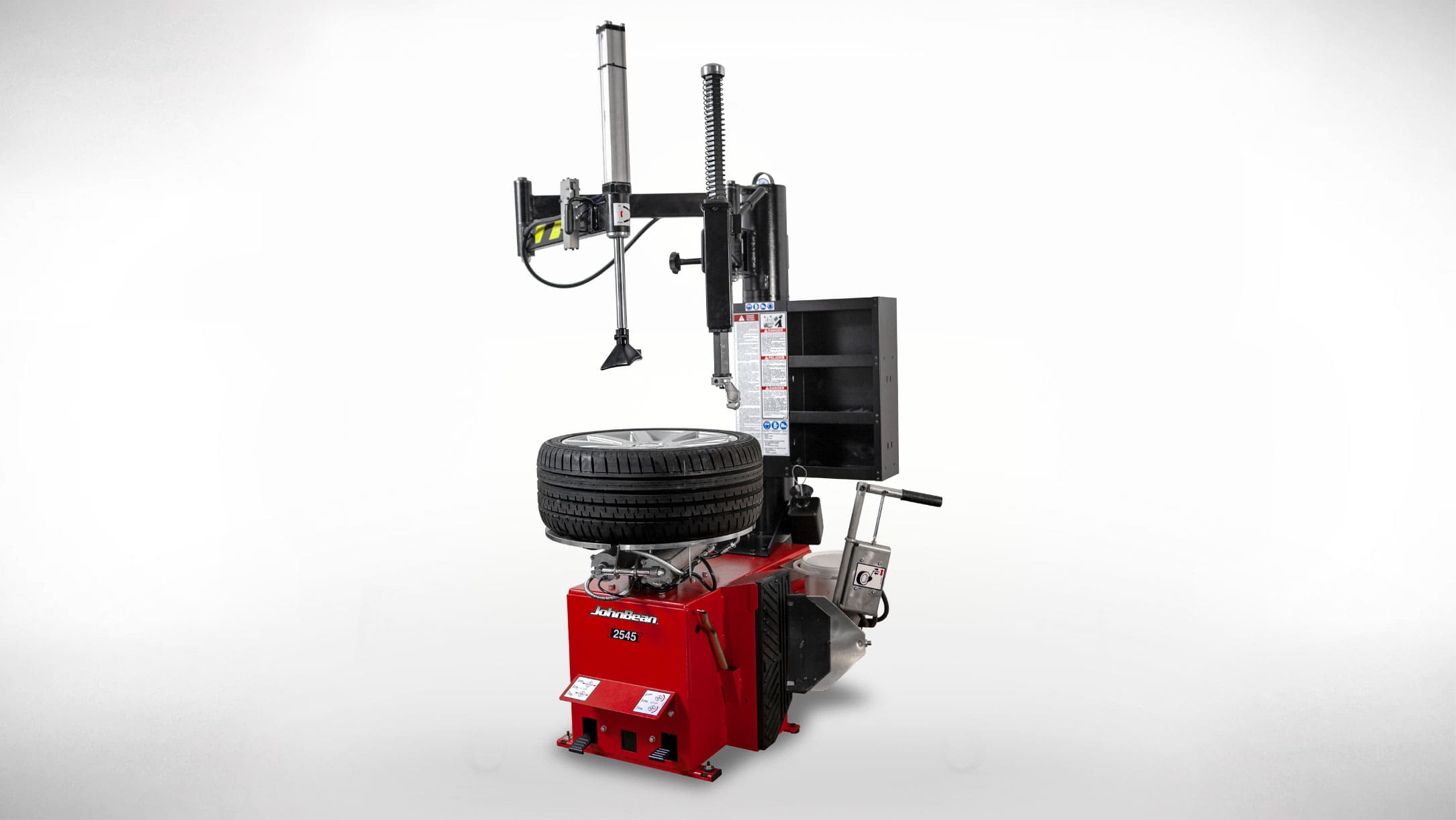

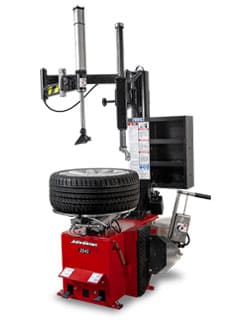

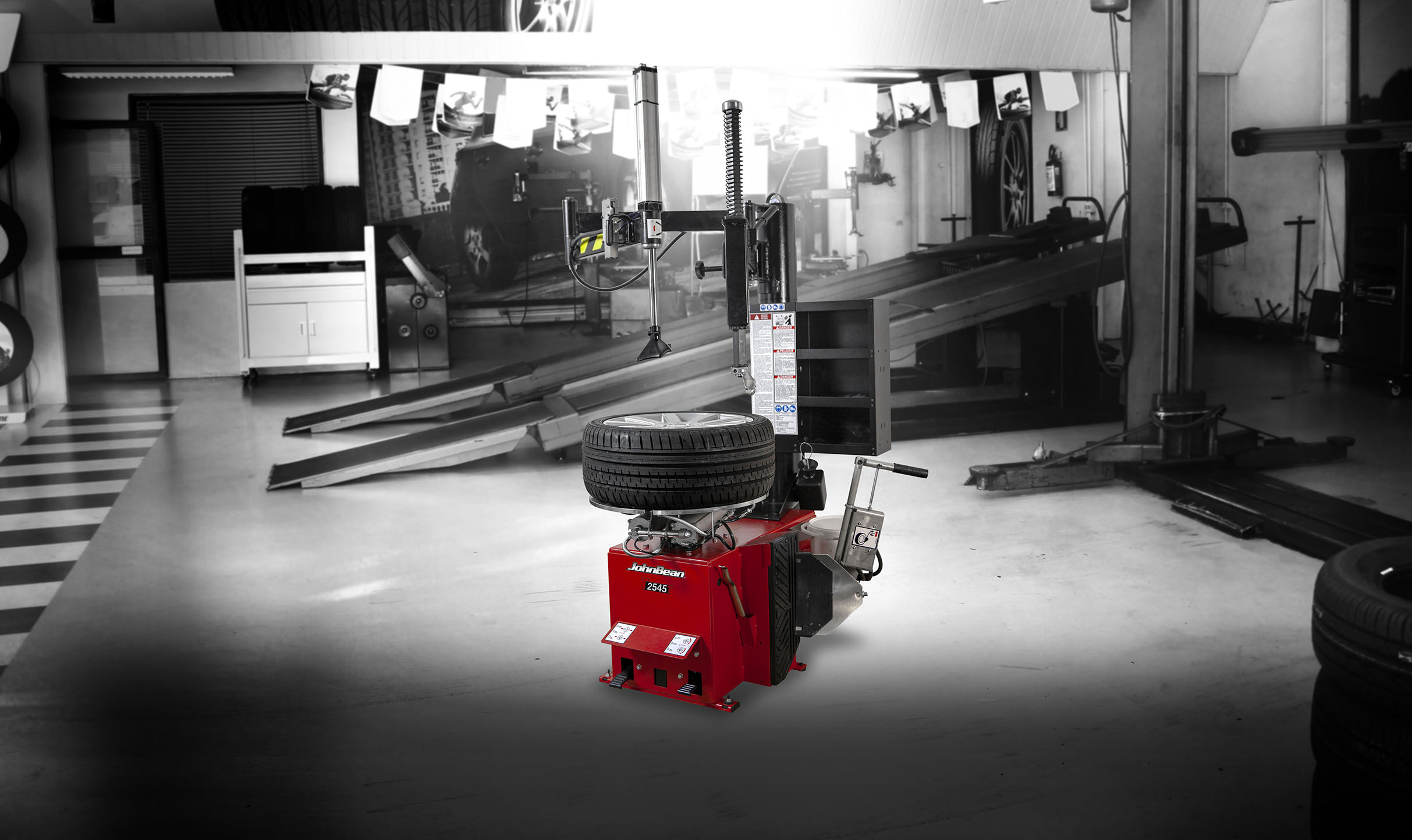

T2545T Swing-Arm Tire Changer
A swing-arm tire changer with robust and durable construction, the John Bean® T2545T pairs traditional design with modern, productivity-boosting features.
Whether you regularly work on passenger cars or light truck assemblies; the John Bean T2545T can help you get the job done quickly and easily. The compact swing-arm design allows for ergonomic placement of wheels and a quick setup time.
Easily break even the toughest beads with the integrated, hand-operated on-floor bead breaker that prevents technicians from having to straddle the wheel. Once the tire is on the turntable, the self-adjusting four-jaw clamp secures the wheel with twin-cylinder clamping force.
PROspeed™ optimizes the rotational speed of the turntable, automatically reducing the risk of tire damage and speeding up the overall tire changing process.
Get it done right and get it done fast with the John Bean T2545T.
T2545T Single Speed (EEWH584CU2):
This version does not include PROspeed™
The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.
The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

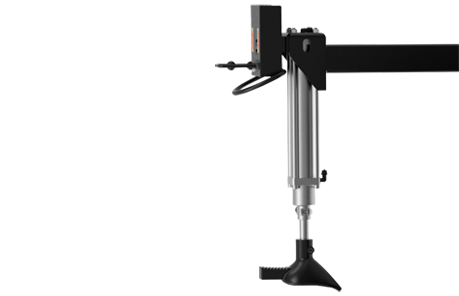

PNEUMATIC BEAD PUSHER
The Pneumatic Bead Pusher assists in the mounting process of the upper bead. Its dual-purpose design offers a reverse-side hook to help lift heavy tires.
TABLETOP BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
ADJUSTABLE CLAMPING JAWS
Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.
COLUMN-INTEGRATED AIR TANK
Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

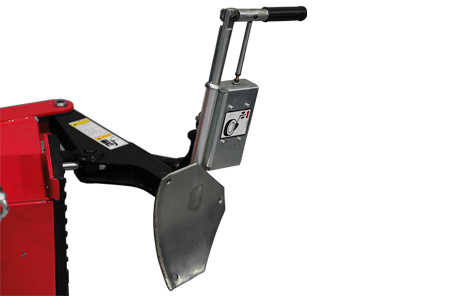

ON-FLOOR BEAD BREAKER (HAND-CONTROLLED)
Pneumatic assist control handle prevents shovel bounce-back with this on-floor bead breaker; the fastest solution for standard, soft sidewall, and high-aspect tires.

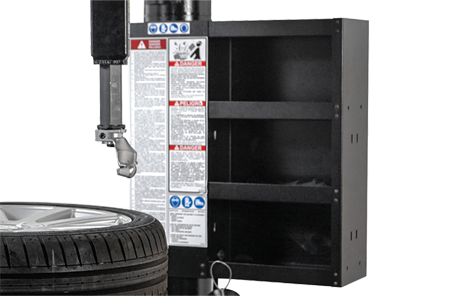

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories.
EEWH584CU1 – T1545T with PROspeed™
EEWH584CU2 – T1545T Single Speed
Max Rim Diameter
24″ | 61cm
Max Tire Width
15″ | 38cm
Max Rim Width
14″ | 36cm
Max Wheel Diameter
53″ | 135cm
Wheel Lift Capability
154 lbs. | 70 kg
230V 1ph 50-60Hz 16A
Air Pressure Required
116-174 PSI | 8-12 bar
84″x66″x55″ | 213x168x140cm
