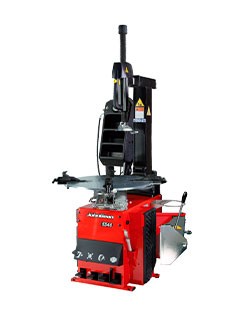

T5340T TILT-TOWER TIRE CHANGER
Loaded with productivity-enhancing features packed into a well-known design, the John Bean® T5340T tire changer is ideal for high-volume shops.
The tilt-tower design makes it easy to load tires onto the work table. Our exclusive PROspeed™ technology ensures that the optimum wheel speed is maintained during operation, while the ergonomically positioned, pedal-operated on-floor bead breaker makes quick work of breaking beads on high-aspect tires.
The T5340T utilizes self-centering jaws with three manual adjustment positions that securely clamp the wheel with the proper setup range. For day-to-day operational convenience, the T5340T also includes a handy toolbox with an integrated pressure gauge and four convenient shelves to store tools and accessories.
The T5340T is a workhorse tire changer that’s ready to become a key part of your shop’s daily workflow.
Features
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/Tilt-Tower-Tire-Changer.png)
TILT-TOWER
The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/08/prospeed.png)
PROSPEED™
The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/on-floor-bead-breaker-pedal-operated-T5340T.png)
ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)
Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/Adjustable-Clamping-Jaws.png)
ADJUSTABLE CLAMPING JAWS
Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.
ADDITIONAL FEATURES
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/tabletop-bead-seater-bk2.png)
TABLETOP BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/10/Toolbox-with-air-pressure-gauge-1.png)
TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE
The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/T5340T-action-pic.jpg)
TECH SPECS
Part Number
EEWH572AEI
Max Rim Diameter
24″ | 61cm
Max Tire Width
13″ | 33cm
Max Rim Width
12″ | 31cm
Max Wheel Diameter
39″ | 100cm
Wheel Lift Capability
154 lbs. | 70 kg
Power Supply
230V 1ph 50-60Hz 16A
Air Pressure Required
116-174 PSI | 8-12 bar
Dimensions HxWxD
63″x73″x45″ | 160x185x115cm
ACCESSORIES
STANDARD
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/5-kg-Lube-Bucket-Holder.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Lube-Brush.jpg)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Wave-Lever-Plus-1.jpg)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/Bead-lever-protector-plus.png)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Plastic-Rim-Protector-Clip-on-Type.jpg)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Bead-Breaker-Blade-Protector-2.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Alloy-Rim-Protector-Kit-for-Center-Type-Sliding-Jaws-Front-Rear.jpg)
OPTIONAL
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Plastic-Tyre-Protector-Clip-on-Type.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Smart-Bead-Spacer-Tail.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Bead-Clamp.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Bead-Press-Tool-MX.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Bead-Pressing-Roller-for-M-D-Tool.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Quick-Exchange-Device-with-Mounting-Head-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Wheel-Lift-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/MH-Tractor-Kit-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/6-inch-Jaw-Adaptors-for-Centre-Type-Jaws.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Light-Truck-Adaptor-for-Centre-Type-Sliding-Jaws-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Motorcycle-Adaptor-Kit-for-Centre-Type-Jaws.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Motorcycle-Mounting-Head-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Motorcycle-Bead-Breaker-Blade-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Slip-on-Shoe-1.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/05/Roller-Board-1.jpg)
