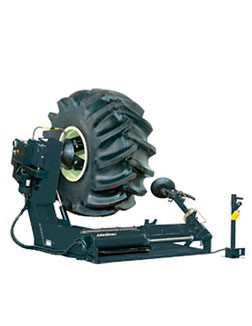

T8056 Heavy-Duty Tire Changer

True, one-operator capability makes the John Bean® T8056 the productivity workhorse you need if you regularly work on heavy-duty tubeless, tube type, single or multi-piece, Budd, and Dayton wheels.

Utilizing a remote-control console, the John Bean T8056 allows a single technician to work on tires and OTR wheels up to 92.5 inches in diameter and 32 inches or 56 inches wide, with optional accessories, safely and easily.

The two-speed, self-centering, four-jaw, hydraulically operated chuck grips wheels with authority.

We’ve designed the T8057 with an all-in-one bead breaker, mount/demount head assembly that makes quick work of even the toughest tires.

For heavy-duty wheels and tires this is the ultimate in productivity, safety, and precision.

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tire changing operations.

NON-RETURN VALVE

A non-return valve prevents the chuck from opening in case of a sudden hydraulic pressure drop.

BEAD BREAKER

The bead breaker disk is equipped with a special tilting system to assist bead breaking and ensure the disk is in the optimum position.

CHUCK

The self-centering hydraulic chuck is of solid design to accomodate wheels up to 3,300 pounds (1,500 kg).

DOWNLOADS

TECH SPECS

Part Number

EEWHT8056230

Max Rim Diameter

32”  |  81cm

Max Tire Width

43″  |  110cm

Max Rim Width

42”  |  107cm

Max Wheel Diameter

92″  |  235cm

Max Wheel Weight

3,300 lbs.  |  1,500 kg

Power Supply

208V 3Ph 60Hz

Dimensions HxWxD

58″x83″x83″ | 148x210x210cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Long Tire Lever
Standard Tire Lever: 20" | 50cm
Mounting Clamp
Jaw Protection Kit

OPTIONAL

Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Tubeless Roller
