OEM TRUSTED EQUIPMENT: VOLVO

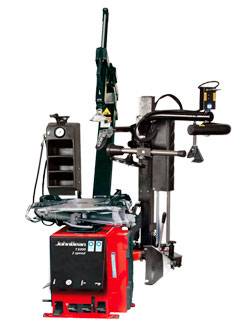

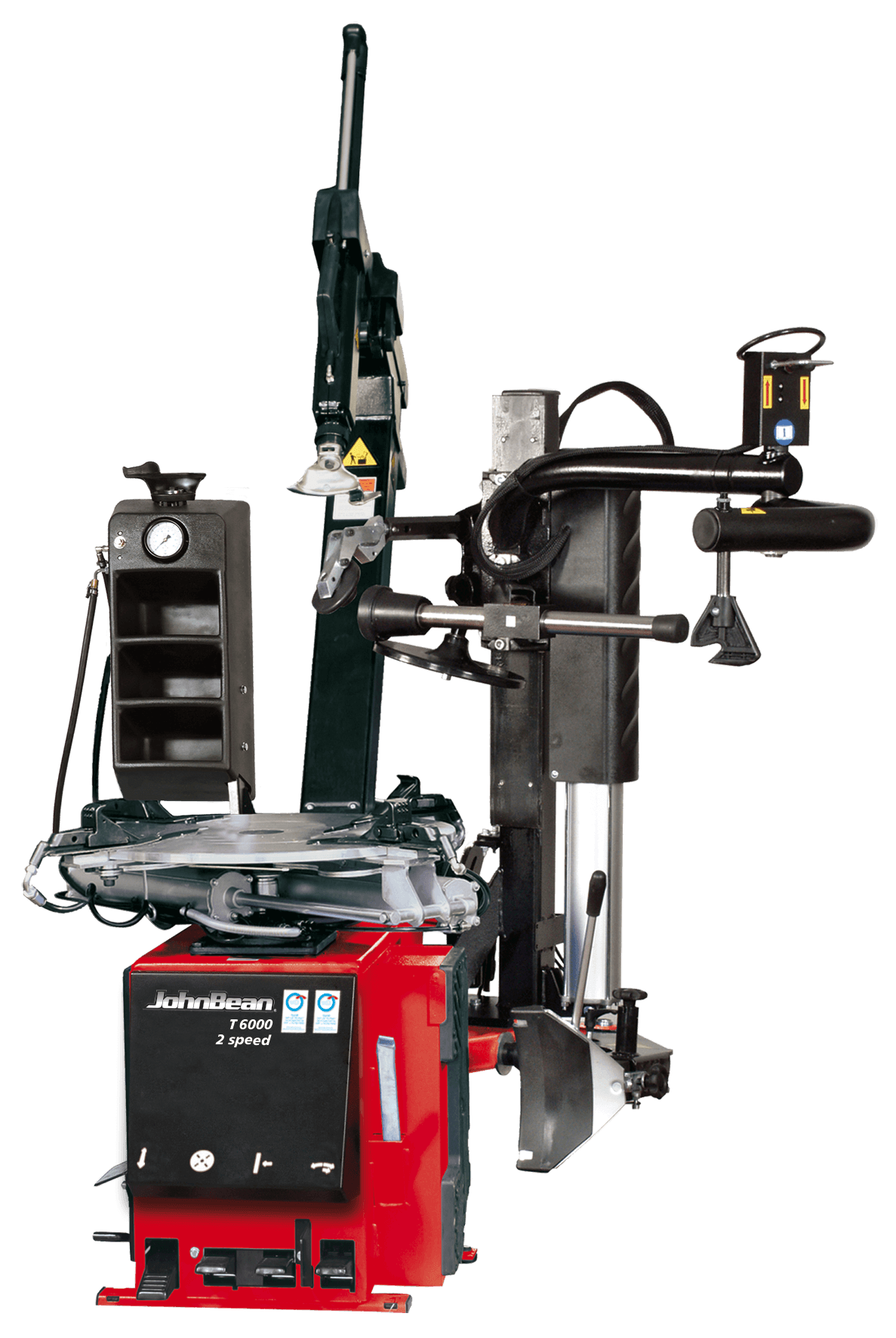

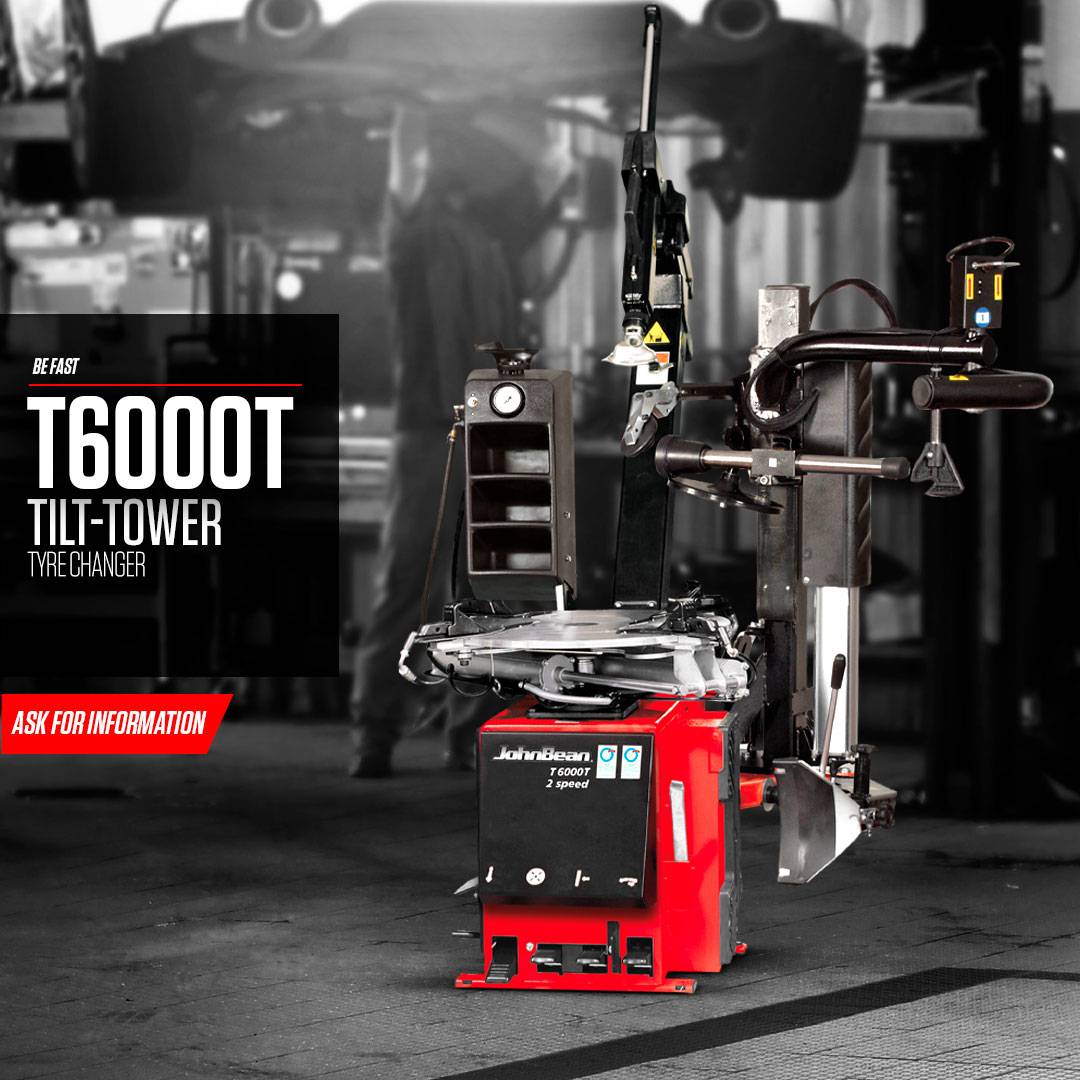

Tilt-Tower Tyre Changer T6000T

Utilising a proven tilt-tower design, the John Bean® T6000T is packed full of productivity-boosting features that help technicians get more work done with less effort.

With the tilt-tower design, easily and seamlessly load a wide variety of tyre sizes onto the turntable, PROspeed™ technology ensures that optimum torque and speed is applied to the wheel at all times during the tyre changing process. Demounting and mounting tyres is a snap with an ergonomic, pedal-operated bead breaker and our advanced, three-piece pneumatic bead assist that makes mounting and demounting low profile tyres quick and simple.

Self-centring jaws with three manual adjustment positions securely clamp the wheel with the proper setup range. The pneumatic vertical arm provides quick and efficient positioning of the mounting head and the top-side bead seater quickly sets the bead with a high-speed blast of air. The T6000T also includes a toolbox with an integrated air pressure gauge and four useful shelves for easy storage of everything needed to get the job done right.

WDK certified, and ready to become a crucial part of your shop’s operations; the John Bean T6000T is designed to allow technicians to work smarter, not harder.

Features

TILT-TOWER

The pneumatic Tilt-Tower post provides maximum clearance for installing the tyre on the turntable.

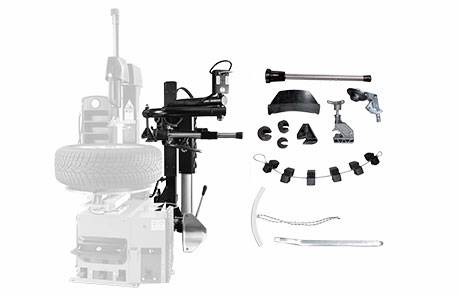

“PLUS” CONFIGURATION

Certified by WDK, the “Plus” models are equipped with Pneumatic Bead Assist and the “Plus” Accessories Kit to enable the correct mounting and demounting of UHP and run-flat tyres.

PROspeed™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

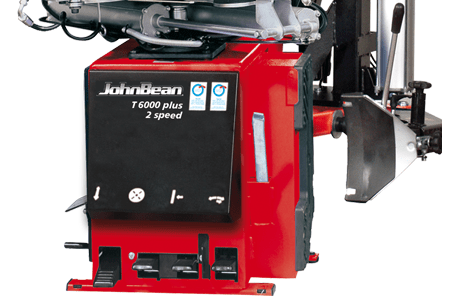

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

 Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tyres.



ADDITIONAL FEATURES

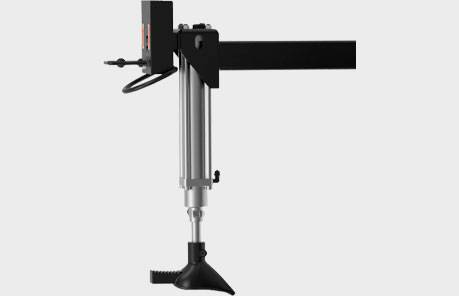

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tyres.

ADJUSTABLE CLAMPING JAWS

Self-centring nylon-covered clamping jaws protect the wheel and provide a secure grip.

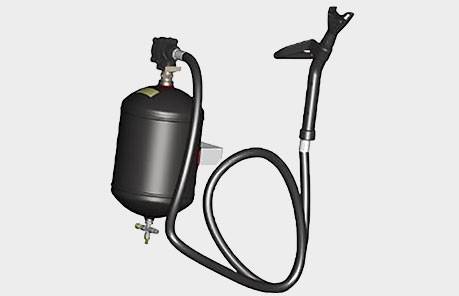

TOP-SIDE BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

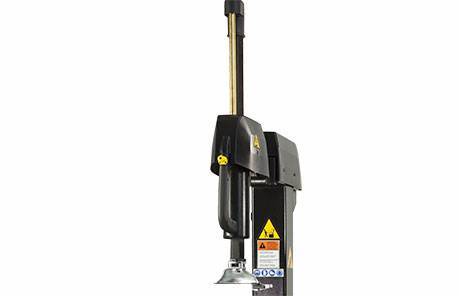

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

WDK CERTIFIED

Our tyre changers are approved and certified according to the strict and rigorous guidelines provided by the prestigious Wirtschaftsverband daer deutschen Kautschukindustrie e.V. (WDK), a German Rubber Manufacturers Association leading organisation of German manufacturers of tyres and technical elastomers.

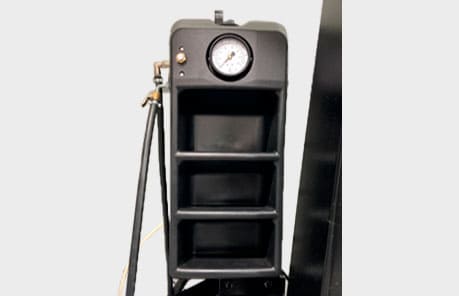

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

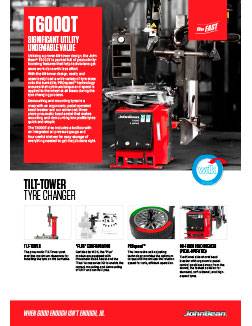

DOWNLOADS

TECH SPECS

Part Number

EEWH529AEF – T6000T

Max Rim Diameter

16″ | 40cm

Max Tyre Width

17″ | 43cm

Max Rim Width

16″ | 40cm

Max Wheel Diameter

47″ | 120cm

Wheel Lift Capability

154 lbs. | 70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI | 8-12 bar

Dimensions HxWxD

76″x89″x68″ | 192x226x172cm

ACCESSORIES

STANDARD

Wave Lever Plus
Wave Lever Plus Protector
Bead Breaker Blade Protector
5 kg Lube Bucket Holder
Lube Brush
Plastic Protectors for Mounting Head
Jaw Protectors - Front & Rear
Plastic Tyre Protector
Rim Protection and String
Bead Breaker Blade Protector
Quick Exchange Device with Mounting Head
"Plus" Kit

optional

Wheel Lift
MH Tractor Kit
'4-inch Jaw Adaptors for Off-Centre Sliding Jaws
Light Truck Adaptor for Off-Centre Sliding Jaws
8-inch Motorcycle and ATV Adaptors for Off-Centre Sliding Jaws
Motorcycle Mounting Head
Motorcycle Bead Breaker Blade
Slip-on Shoe
Roller Board
