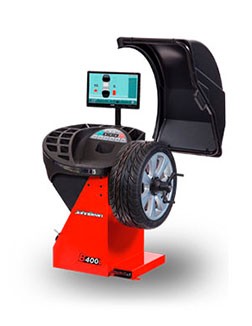

B400L Semi-Automatic LASER Monitor Wheel Balancer

Offering robust construction and an intuitive user interface, the John Bean® B400L wheel balancer offers a whole suite of easy-to-use features that help equip any shop with all it needs to get the job done the right way.

The B400L is a semi-automatic wheel balancer designed to guide technicians throughout the entire balancing process with a conveniently raised monitor with a clear display. Our smartSonar™ technology quickly detects the rim width data and automatically inputs the value into the system, speeding up the overall balancing cycle time and reducing possible measurement errors that can delay the technician.

Our easyWeight™ technology quickly and accurately shows the location of wheel weights with laser-guided precision, while our easyALU™ hand-operated gauge arm allows for quick and easy wheel diameter and distance measurement and with automatic input.

The B400L wheel balancer from John Bean is the workhorse you need to push more work through your shop in less time.

Features

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

EASYWEIGHT™

Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

ADDITIONAL FEATURES

MONITOR AND INTEGRATED TOUCHPAD

Raised monitor and weight-tray-integrated touchpad for convenient operational control.

.

QUICK NUT WHEEL CLAMP

An easy-to-use manual clamping device that allows a secure attachment of the wheel to the balancer shaft.

RIM LIGHTING

Bright LED lighting system that facilitates rim cleaning and aids in the weight positioning process.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

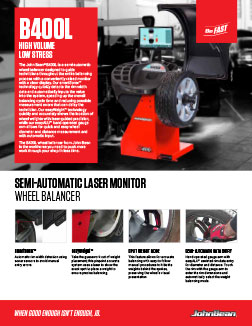

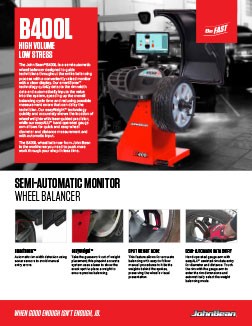

DOWNLOADS

TECH SPECS

Part Number

EEWB562AL – 115V

EEWB562AL230 – 230V

Wheel Clamping

Quick Nut

Automatic Rim Diameter Range

N/A

Automatic Rim Width Range

N/A

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

Manual Rim Diameter Range

8″-32″  |  20-81cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

115V 1ph 60Hz 12A – EEWB562AL

230V 1ph 50-60Hz 16A – EEWB562AL230

Dimensions HxWxL

72″x34″x52″  |  183x87x131cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Weight Remover Tool
Four Cone Set
Weight Pliers
Rim Width Caliper

OPTIONAL

Medium Duty Kit
Standard Tooling Kit
Nine Collet Set
Basic Light Truck Cone Kit
