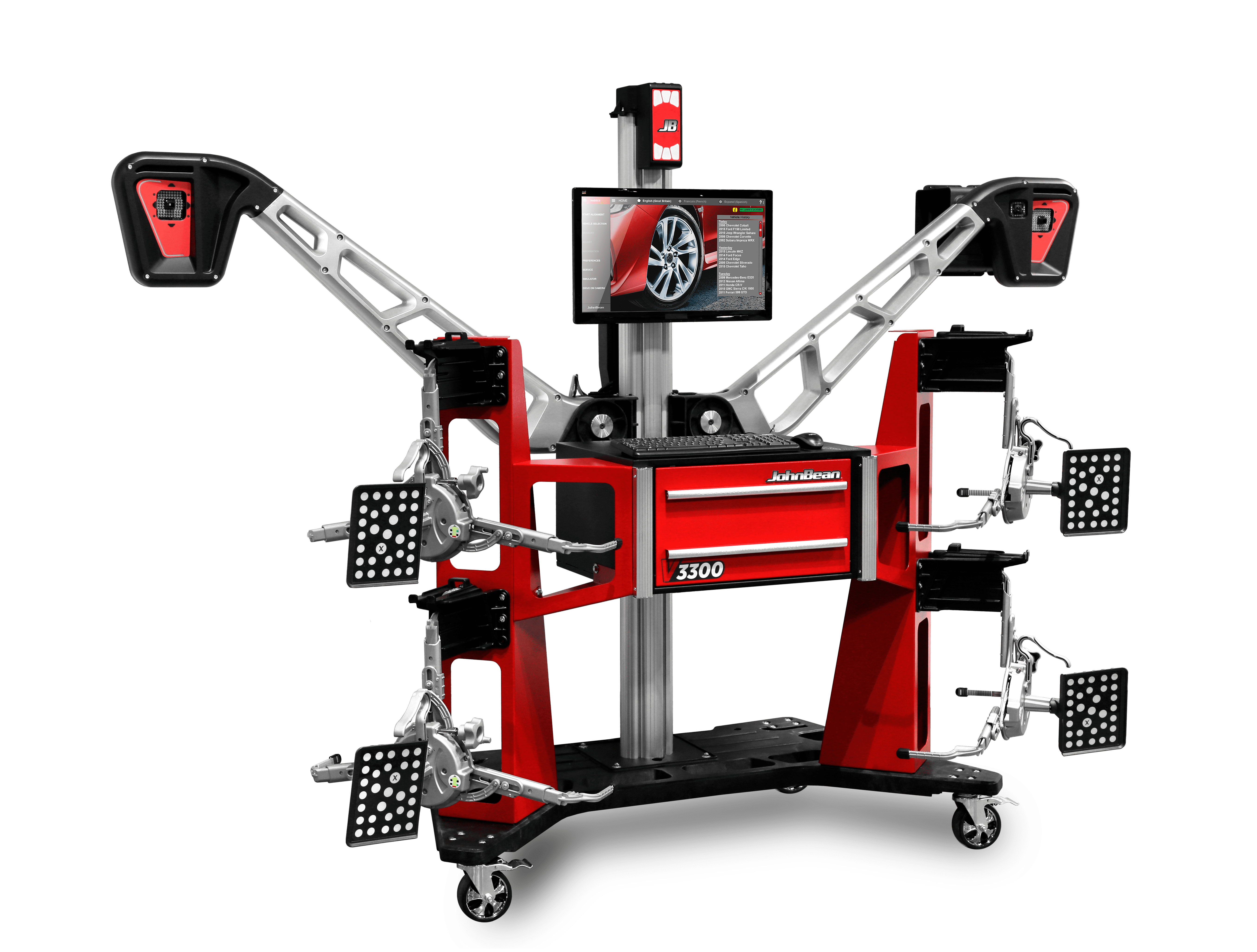

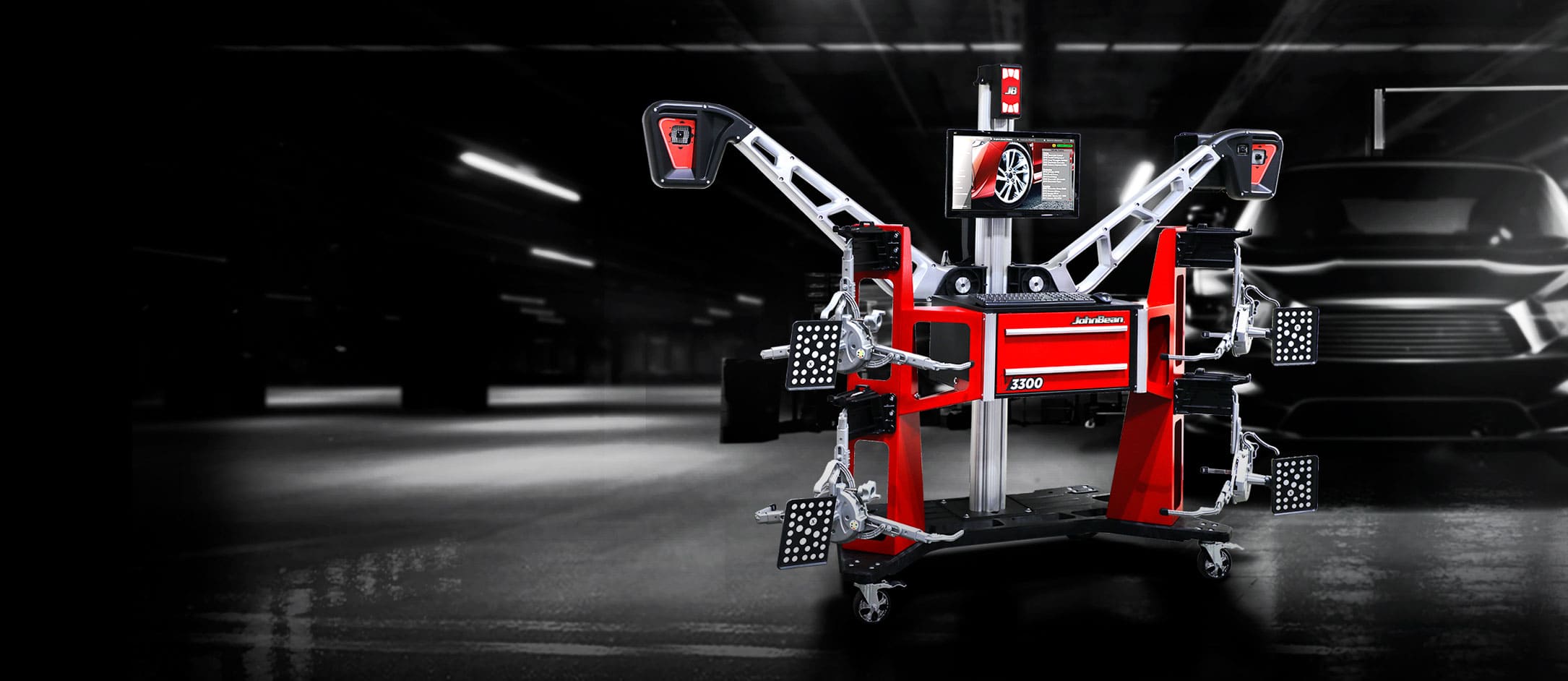

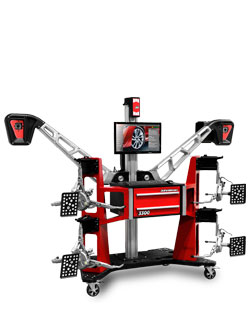

V3300 Diagnostic Wheel Alignment System
Work faster and smarter with the John Bean® V3300 Diagnostic Wheel Aligner.
The V3300 is a stand-alone wheel alignment system that utilizes advanced technology to guide technicians of all skill levels through the wheel alignment process. We’ve combined the fastest camera system ever offered by John Bean with advanced notification alerts and clever software flow to reduce alignment errors, as well as decrease overall alignment time.
This means you can push more alignments through with fewer errors; drastically increasing your productivity and boosting your revenue. The V3300 is the ultimate in wheel-alignment technology.
The advanced notification system on the V3300 instantly recognizes any error made during the alignment process and allows technicians to instantly correct the error during the alignment operation procedure. From suspension stress to uneven rack surfaces and loose components; the V3300 eliminates alignment errors and speeds up the entire alignment process.
Looking for real-time support? The V3300 goes beyond wheel alignment to offer critical, real-time data from OEM’s such as repair information, TSBs, recalls, and TPMS reset procedures. This means less time searching for resources to get the job done right and more time pushing alignments through your shop.
ADAS calibration is a consistent reality for modern shops that perform alignment procedures on their customer’s vehicles. Performing ADAS calibration accurately can be a constant source of productivity issues due to the sheer variety of procedures and the ever-changing OEM calibration requirements. The V3300 makes this task easy with real-time information on vehicle-specific ADAS procedures. Combine the V3300 with the John Bean Tru-Point™ recalibration system for ultimate productivity.
V3300 AC400 (EEWA552BV2):
This version includes the AC400 wheel clamps.
V3300 AC200 (EEWA552HV2):
This version includes the AC200 wheel clamps.
COMPACT CONSOLIDATED DESIGN
FAST COMPENSATION AND OPTIMIZED ALIGNMENT FLOW
Built-in camera that allows the operator to view the vehicle as it being driven onto the lift, ensuring proper loading for alignment procedures.
ADVANCED NOTIFICATION SYSTEM
The advanced notification system provides critical information without slowing down the alignment process, automatically detecting and compensating suspension stress issues or environmental errors, only notifying the technician when necessary to provide additional information for corrective action.

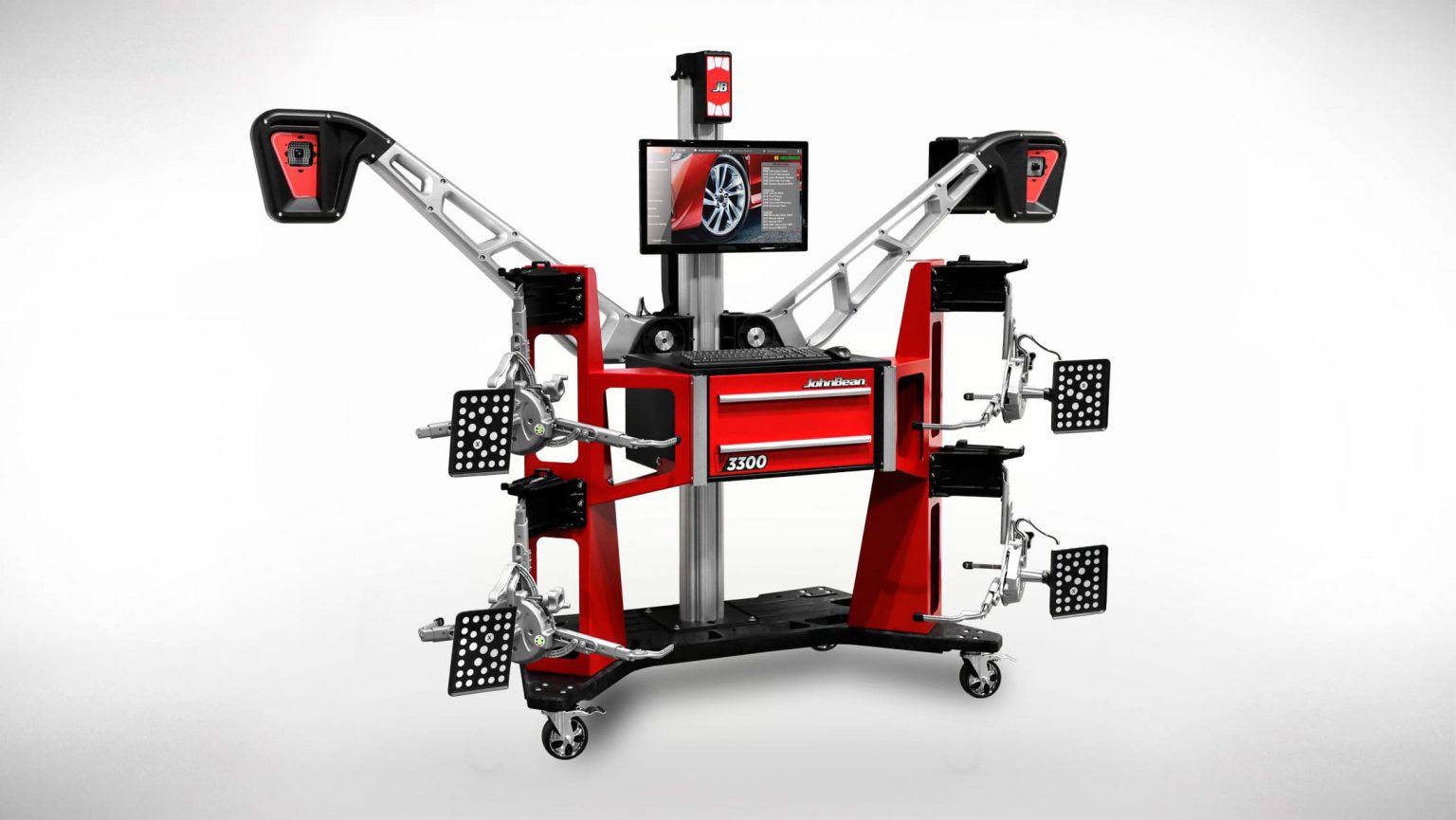

VIDEO: SEE IT IN ACTION
Quickly uncover extra service opportunities with alignment audit reports. This report includes measurement of track width, front and rear toe, camber, wheelbase, wheel diameter, and cross dimensions.
Automatic camera tracking eliminates the need to readjust the camera after raising the lift, while a continuously calibrating third camera retains ultimate accuracy.
Eliminate manual data entry, speed up measuring, and increase accuracy using our specially designed, optional Ride Height Targets.
Our exclusive Vehicle Orientation Directional Indicator (VODI) guides technicians through the measurement process when the monitor is not in view, with simple, easy-to-follow red and green LED lighting; reducing the amount of time spent walking back and forth from the vehicle to the aligner.
The aligner is network-connected, allowing technicians to access alignment repair information from Mitchell1 in just a few clicks.
XD CAMERA TECHNOLOGY
Video speed cameras constantly monitor the alignment and immediately detect common environmental conditions or vehicle problems that can cause maladjustments.
OEM AFTERMARKET PROCEDURES
The software provides the OEM recommended workflow for accurate wheel alignment in the aftermarket segment.
Our advanced software makes it easy to quickly and accurately measure toe angle, allowing technicians to turn the wheel to access challenging adjustment points without using a steering wheel holder.
Advanced vehicle dimensioning, including Cross Dimensions measurements to identify frame or structural damage before alignment adjustments are made, and Wheel Diameter to identify mismatched tire sizes, a potential cause of vehicle pulling and drive train damage.
Easily share service reports with your customers via email or print from anywhere in the shop.
The clamp attaches to the tire with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.
Fast and easy to use with self-centering design, two-sided claws provide reliable clamping, even over hub caps.
