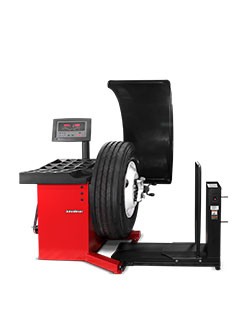

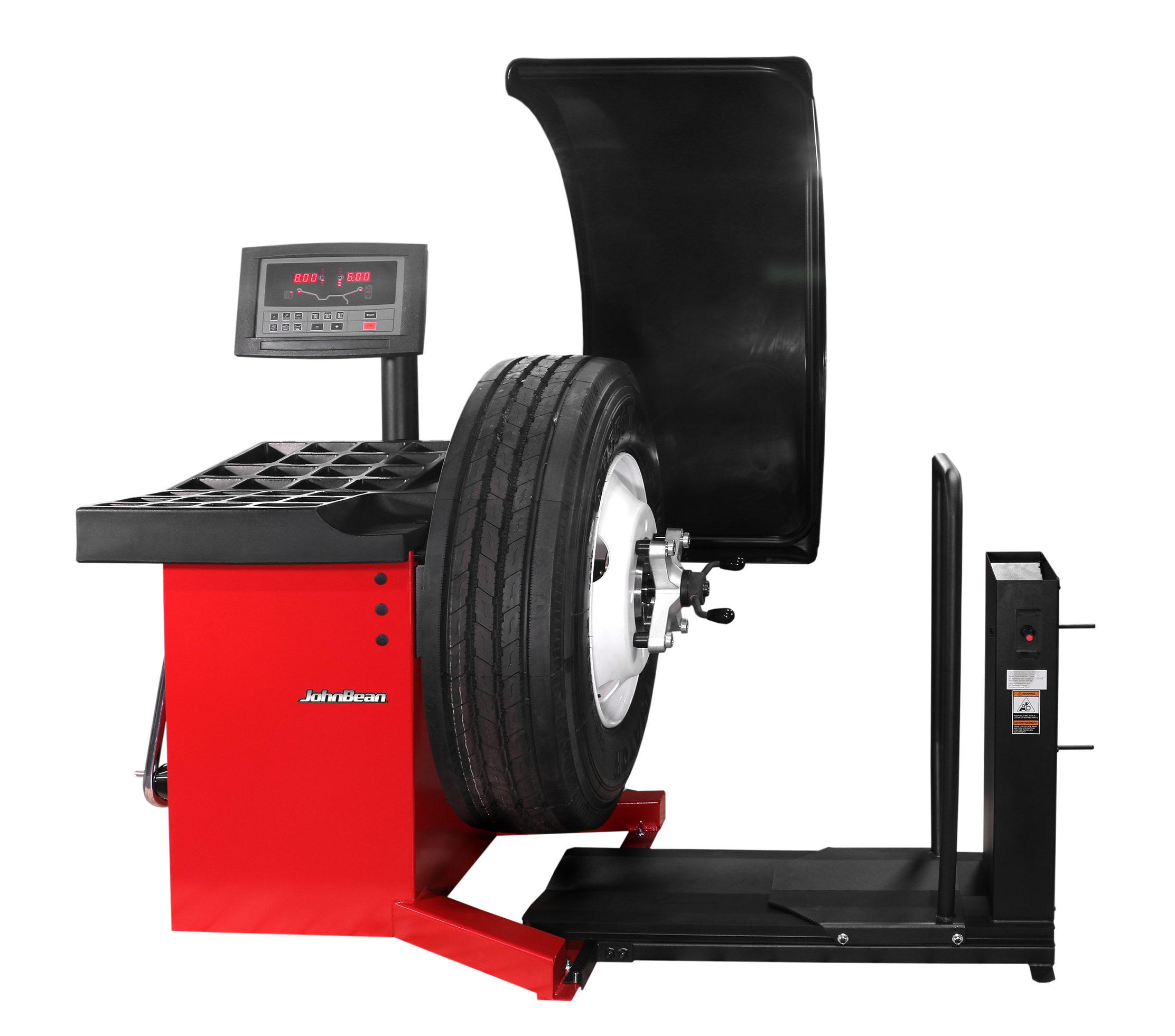

9800 Heavy-Duty Wheel Balancer

The John Bean® 9800 is a heavy-duty wheel balancer designed to handle truck and bus wheels and tire assemblies. It includes a robust pneumatic wheel lift that reduces the chance of injury and minimizes operator fatigue.

A semi-automatic data entry arm detects the rim offset and wheel diameter measurements.

To fit a wide variety of heavy-duty wheels, the 9800 also comes with adapters that offer hub-piloted wheels and professional four and five-star centering arms.

If you work on heavy-duty vehicles, the 9800 wheel balancer from John Bean is the workhorse you need to get the job done right.

Features

QUICK NUT WHEEL CLAMP OPTIONAL

An easy-to-use manual clamping device that allows a fast and secure attachment of the wheel to the balancer shaft.

SEMI-AUTOMATIC PARAMETER ENTRY

Optimize the assembly of the tire on the rim and reduce the amount of necessary weight.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

SELF-CALIBRATION

The self-calibration feature allows users the ability to recalibrate the machine in just two steps, avoiding costly service calls.

ADDITIONAL FEATURES

MONITOR WITH DIGITAL LED DISPLAY

Raised monitor with intuitive LED display and control panel.

PNEUMATIC LOADING DEVICE

This lift helps facilitate the clamping of heavy truck wheels and offers ample storage space for cones, centering stars, and wing nuts.

GAUGE ARM WITH WEIGHT CLAMP

The gauge arm guides the technician to the correct position inside the rim and is equipped with a patented wheel weight clamp to hold the weight in the correct position during weight placement.

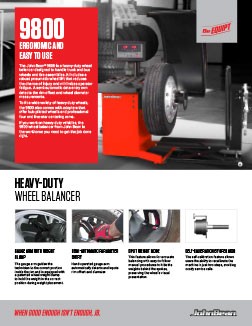

DOWNLOADS

TECH SPECS

Part Number

EEWB543AW

Wheel Clamping

Quick Nut

Automatic Rim Diameter Range

N/A

Automatic Rim Width Range

N/A

Automatic Scanner Offset Range

N/A

SAPE Rim Diameter Range

8″-26″  | 20-66cm

SAPE Rim Width Range

2″-20″  |  20-51cm

SAPE Working Range

N/A

Manual Rim Diameter Range

N/A

Manual Offset Range

N/A

Manual Rim Width Range

N/A

Max Wheel Diameter

51″  |  130cm

Max Wheel Weight

550 lbs.  |  250 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

76″x55″x54″  |  193x140x137cm

Net Weight

525 lbs.  |  238 kg

ACCESSORIES

STANDARD

Basic Light Truck Cone Kit
Heavy-Duty Wheel Lift
4/5 Arm Star Adapter
Heavy-Duty Accessories
