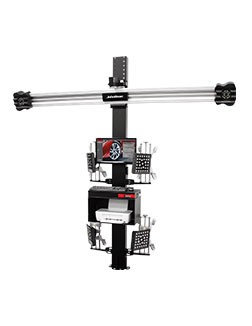

V2100 Tilt Beam Imaging Wheel Alignment System

Small in size but not in features, the John Bean® V2100 offers a host of productivity-focused features with a minimal footprint and easy installation options.

It can be challenging to fit an advanced wheel aligner into a shop with a compact footprint, but the John Bean V2100 is up for the task. We’ve packaged the V2100 to take up minimal room in your shop, with a console-integrated post and beam design. Use your tablet as a wireless secondary display for the ultimate flexibility and ease of use.

V2100 can be easily updated via a network connection, ensuring the most up-to-date information is always readily available at your fingertips.

Combine these features with our advanced software that includes fast compensation and optimized alignment flow, and you have the ultimate solution for independent shops looking to take advantage of lucrative alignment services.

Features

REMOTE CONTROLLED TILT BEAM

A simple remote control allows technicians to tilt the beam quickly and easily.

FAST COMPENSATION AND OPTIMIZED ALIGNMENT FLOW
Enhance productivity and cut down on unnecessary steps with an intelligent, predictive alignment workflow that simplifies the alignment process.
ADVANCED NOTIFICATION SYSTEM

The advanced notification system provides critical information without slowing down the alignment process, automatically detecting and compensating suspension stress issues or environmental errors, only notifying the technician when necessary to provide additional information for corrective action.

SMALL FOOTPRINT

Maximize shop floor space with a small console that takes up minimal shop space with easy storage for the printer and targets.

ADDITIONAL FEATURES

MITCHELL1®

The aligner is network-connected, allowing technicians to access alignment repair information from Mitchell1 in just a few clicks.

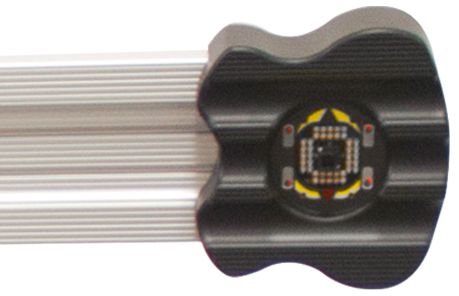

VODI™

Our exclusive Vehicle Orientation Directional Indicator (VODI) guides technicians through the measurement process when the monitor is not in view, with simple, easy-to-follow red and green LED lighting; reducing the amount of time spent walking back and forth from the vehicle to the aligner.

XD CAMERA TECHNOLOGY

Video speed cameras constantly monitor the alignment and immediately detect common environmental conditions or vehicle problems that can cause maladjustments.

AC200 CLAMPS

Fast and easy to use with self-centering design, two-sided claws provide reliable clamping, even over hub caps.

ADJUSTMENTS

MEASUREMENTS

DOWNLOADS

TECH SPECS

Part Number

EEWA541G

Tire Diameter (AC400)

N/A

Wheel Diameter (AC200)

12″-24″  |  30-61cm

Track Width

48″-96″  |  122-244cm

Wheelbase

79″-180″ | 201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor

OPTIONAL

VIN Scanner
4" Extension Kit
Low Profile Tire Adapter
2" Wheel Hub Extension
Quick Clamp Kit
AC200 Wheel Clamp Floor Stand
Wheel Clamp Floor Stand Mobility Kit
Alignment Stand with Set Bridges
