V2380 Imaging Diagnostic Wheel Alignment System

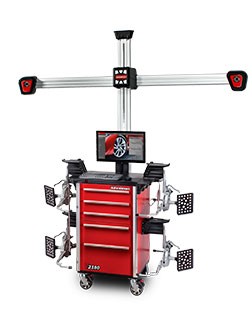

The John Bean® V2380 wheel aligner combines a classic post and beam design with the ultimate productivity-boosting technology to give shop owners the edge they need to perform efficient wheel alignment services.

If your shop is looking to perform accurate alignment services at a fast pace, the John Bean V2380 is designed to get the job done with fast compensation and optimized alignment flow. Work quickly and accurately without slowing down critical alignment procedures by using our advanced notification system that instantly alerts the technician of suspension stress issues or other errors. Smart features like fast compensation and instant error notifications allow technicians to quickly move through optimized alignment steps.

If technicians hit a snag while performing alignment services, Mitchell1® on-demand gives access to an extensive online, real-time database to work through nearly any alignment problem. Productivity boosting features like automatic camera tracking, EZ-Toe, and our exclusive AC400 wheel clamps help you drive more alignments through your shop.

VERSIONS

V2380 AC400 (EEWA545TBV3):
This version includes the AC400 wheel clamps.

V2380 AC200 (EEWA545THV3):
This version includes the AC200 wheel clamps.

Features

FAST COMPENSATION AND OPTIMIZED ALIGNMENT FLOW

Streamline workflow with fast measurement compensation and an optimized alignment flow that enhances productivity by eliminating unnecessary steps in the alignment process.

ADVANCED NOTIFICATION SYSTEM
The advanced notification system provides critical information without slowing down the alignment process, automatically detecting and compensating suspension stress issues or environmental errors, only notifying the technician when necessary to provide additional information for corrective action.
AUDIT MODE
Quickly uncover extra service opportunities with alignment audit reports. This report includes measurement of track width, front and rear toe, camber, wheelbase, wheel diameter, and cross dimensions.
AUTO CAMERA TRACKING

Automatic camera tracking eliminates the need to readjust the camera after raising the lift, while a continuously calibrating third camera retains ultimate accuracy.

ADDITIONAL FEATURES

RIDE HEIGHT

Eliminate manual data entry, speed up measuring, and increase accuracy using our specially designed, optional Ride Height Targets.

MOBILITY KIT

The optional kit allows you to mount the cross-beam to the cabinet for flexible installation and usage, enabling you to move the system around the shop freely and out of the way as needed.

MITCHELL1®

The aligner is network-connected, allowing technicians to access alignment repair information from Mitchell1 in just a few clicks.

VODI™

Our exclusive Vehicle Orientation Directional Indicator (VODI) guides technicians through the measurement process when the monitor is not in view, with simple, easy-to-follow red and green LED lighting; reducing the amount of time spent walking back and forth from the vehicle to the aligner.

XD CAMERA TECHNOLOGY

Video speed cameras constantly monitor the alignment and immediately detect common environmental conditions or vehicle problems that can cause maladjustments.

OEM AFTERMARKET PROCEDURES

The software provides the OEM-recommended workflow for
accurate wheel alignment in the aftermarket segment.

EZ-TOE

Our advanced software makes it easy to quickly and accurately measure toe angle, allowing technicians to turn the wheel to access challenging adjustment points without using a steering wheel holder.

CLOUD SERVICES

Easily share service reports with your customers via email or print from anywhere in the shop. Easily share service reports with your customers via email or print from anywhere in the shop.

ADVANCED DIMENSIONS

Advanced vehicle dimensioning, including Cross Dimensions measurements to identify frame or structural damage before alignment adjustments are made, and Wheel Diameter to identify mismatched tire sizes, a potential cause of vehicle pulling and drive train damage.

AC400 CLAMPS

The clamp attaches to the tire with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

AC200 CLAMPS

Fast and easy to use with self-centering design, two-sided claws provide reliable clamping, even over hub caps.

ADJUSTMENTS

MEASUREMENTS

DOWNLOADS

TECH SPECS

Part Number

EEWA545TBV3 – V2380 w/AC400

EEWA545THV3 – V2380 w/AC200

Tire Diameter (AC400)

19″-39″  |  48-99cm

Wheel Diameter (AC200)

12″-24″  |  30-61cm

Track Width

48″-96″  |  122-244cm

Wheelbase

79″-180″  |  201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor

OPTIONAL

VIN Scanner
AC400 Dually Adapter
4" Extension Kit
Low Profile Tire Adapter
2" Wheel Hub Extension
Mobility Kit
Quick Clamp Kit
AC200 Wheel Clamp Floor Stand
AC400 Wheel Clamp Floor Stand (2 stands required)
Wheel Clamp Floor Stand Mobility Kit
Alignment Stand with Set Bridges
Console Docking kit
Wheels Off Hub Adapter
