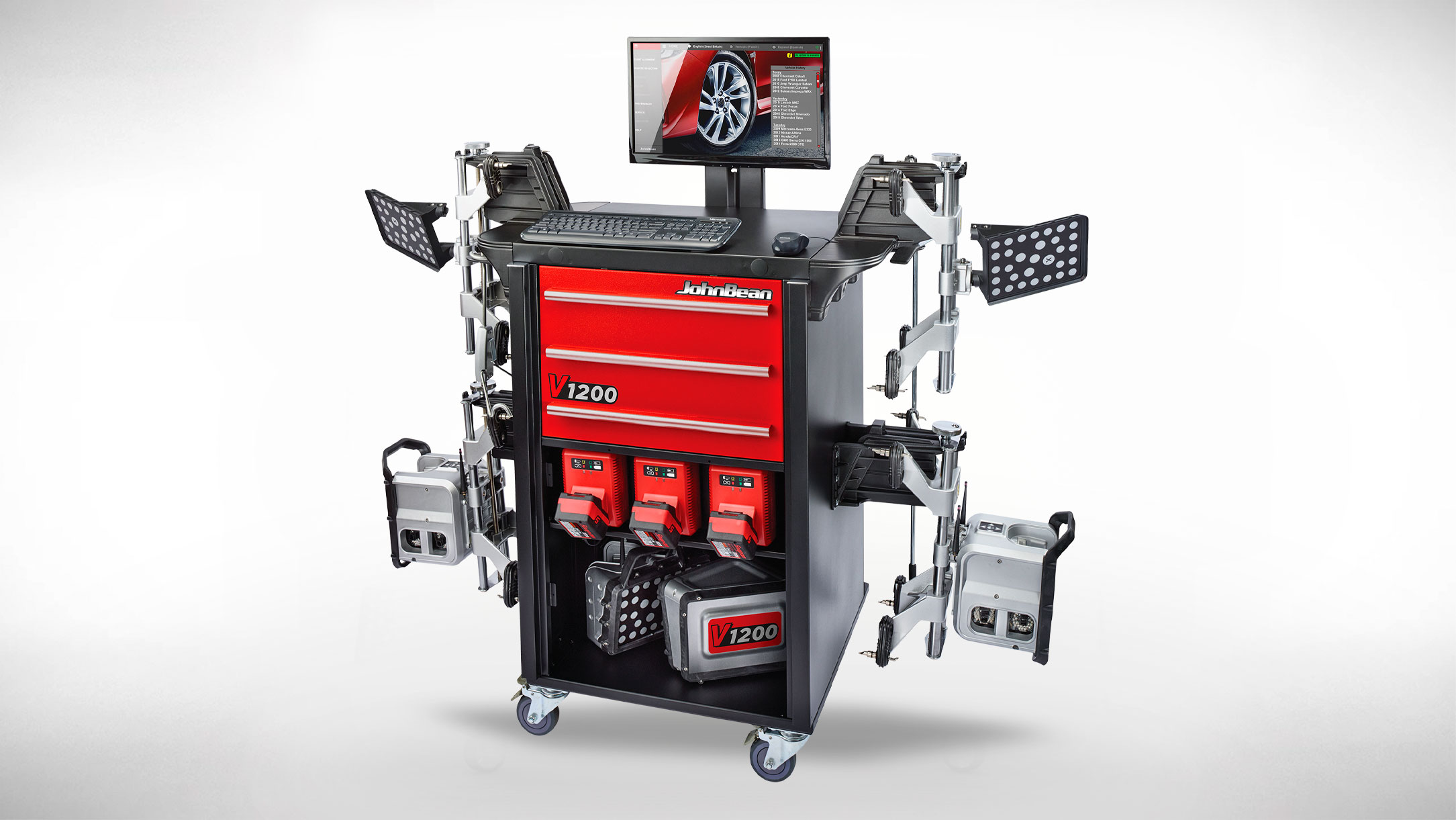

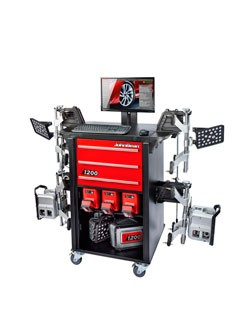

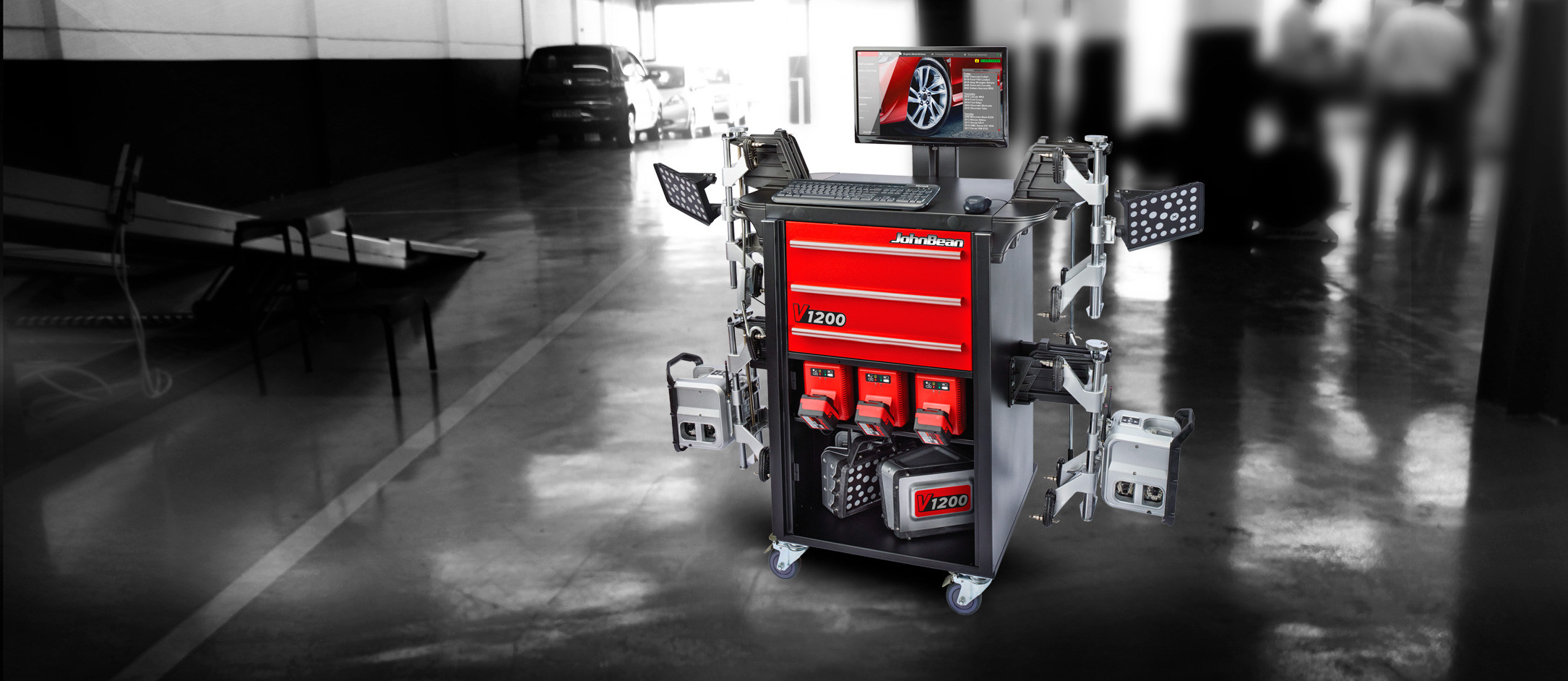

V1200 Portable Imaging Wheel Alignment System

Break the barriers of your alignment space with the John Bean® V1200 wheel aligner, featuring a compact mobile solution that allows flexibility to perform wheel alignments in a smaller area. The V1200 comes with the same productivity-boosting software and features found in our conventional cross-beam alignment systems.

The V1200 lift-mounted reference pods, XD wheel targets and camera pods provide shops with a versatile alignment solution for precision service in a limited space. Our unique quick-release clamps attach to nearly any type of lift and the V1200 requires no room in front of the lift to perform services. For greater flexibility, a secondary screen option allows operators to use a compatible tablet while performing adjustments under the vehicle. Our advanced software can assist even the least experienced technician through the alignment procedure, providing a dependable, accurate, and reliable wheel alignment service.

Compact and complete, the V1200 allows you to keep the alignment business in-house and boost your profits.

Features

ON-RACK AND ON-CAR

XD camera pods utilize quick-release hardware that easily attaches to nearly any style of lift for the ultimate flexibility.

COMPLETELY MOBILE

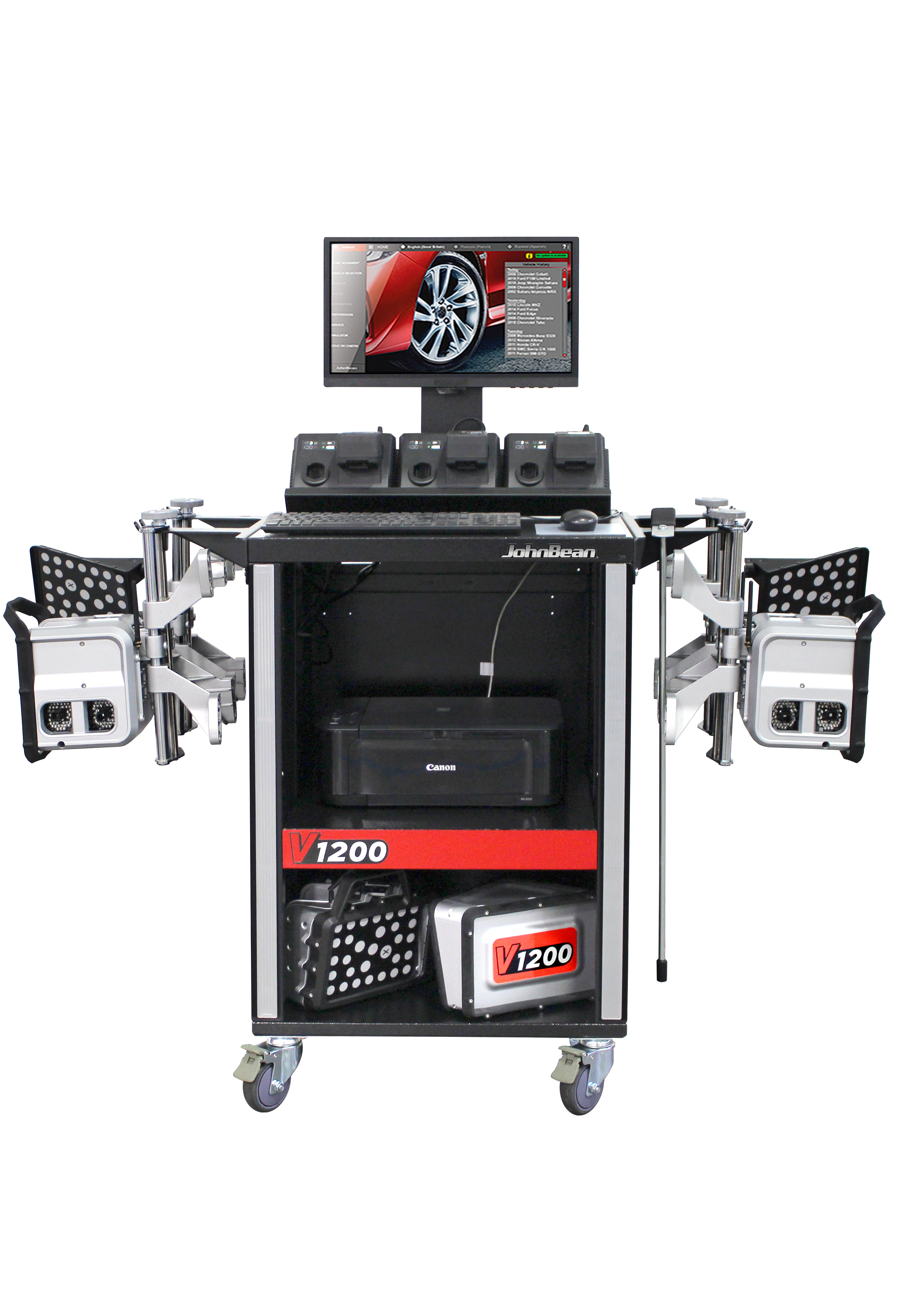

Easily move the V1200 to anywhere in your shop with a console that doubles as a viewing and charging station.

DURABLE CAMERA PODS

Built to stand the rigors of a working shop, these camera pods don’t require special handling and can handle a hard day of work.

SMALL FOOTPRINT

Maximize shop floor space with a small console that takes up minimal shop space with easy storage for the printer and targets.

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES

MITCHELL1®

The aligner is network-connected, allowing technicians to access alignment repair information from Mitchell1 in just a few clicks.

RECHARGEABLE BATTERIES

On-cart, integrated battery charger stores the batteries while not in use, ensuring they remain charged and ready.

WIRELESS TECHNOLOGY

Space-saving XD camera pods communicate via Wi-Fi and are easily stored right on the cart when not in use; no beams or cables.

ADVANCED NOTIFICATION SYSTEM

The advanced notification system provides critical information without slowing down the alignment process, automatically detecting and compensating suspension stress issues or environmental errors, only notifying the technician when necessary to provide additional information for corrective action.

CLOUD SERVICES

Easily share service reports with your customers via email or print from anywhere in the shop.

EZ-TOE

Our advanced software makes it easy to quickly and accurately measure toe angle, allowing technicians to turn the wheel to access challenging adjustment points without using a steering wheel holder.

AC700 CLAMPS

Lightweight, durable AC700 wheel clamps fit rims from 11″-22″.

ADJUSTMENTS

MEASUREMENTS

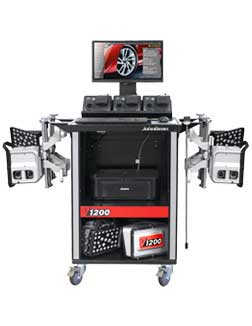

DOWNLOADS

TECH SPECS

Part Number

EEWA551H

Wheel Diameter (AC200)

12″-24″ | 30-61cm

Track Width

48″-96″ | 122-244cm

Wheelbase

60″-180″ | 152-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

VIN Scanner
4" Extension Kit
Low Profile Tire Adapter
2" Wheel Hub Extension
AC700 Wheel Clamp Floor Stand
Wheel Clamp Floor Stand Mobility Kit
Pod Floor Mount Kit
Alignment Stand with Set Bridgees
Console Docking kit
