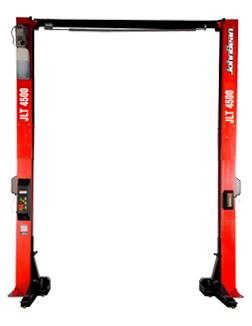

JLT 4500 S Two-Post Automotive Lift

The John Bean® JLT 4500 Two-Post Lift provides versatility and convenience for service and repairs on vehicles up to 4,500 kilograms. This two-post lift is equipped with Versymmetric® technology to combine symmetric and asymmetric lift adjustments into one piece of equipment, bringing flexibility to any service bay and maximizing efficiency and shop space.

The JLT 4500 ensures the safe lifting of a wide range of vehicles, from passenger cars to light commercial trucks. And Versymmetric technology gives you the freedom to service all of these vehicles from the same service bay.

VERSIONS

JLT 4500 TALL (EELS514A): Extended Height

Features

THREE-STAGE ARMS

Front and rear three-stage arms always allow perfect access to the pick-up points of the vehicle.

VERSYMMETRIC® TECHNOLOGY

Combining the advantages of an asymmetric and symmetric lift, Versymmetric Technology improves ergonomics when placing the arms to lift the car.

CARRIAGE CLEARANCE

The lifting carriage has a rugged design with integrated grease fitting and optimal door clearance with a rubber guard on the carriage to protect the car door.

FLEXIBLE INSTALLATION

The lift is available in two versions for your choice of height low and high.

ADDITIONAL FEATURES

COMFORT LOWERING

The lift will automatically raise to release the carriage from the safety lock and automatically lower the vehicle.

CONTROLS

Operation controls are in an ergonomic place on the primary column with clear indications of each operation.

SAFETY LOCK

The lock is active during the complete lifting process; simply pressing the lock button, the carriage lock activates as needed.

OPTIMUM SAFETY

An integrated CE stop replaces mechanical foot protectors to ensure technician safety.

SHUT-OFF BAR

The safety shut-off bar prevents damage to the top of a vehicle, immediately stopping the lift when it is touched.

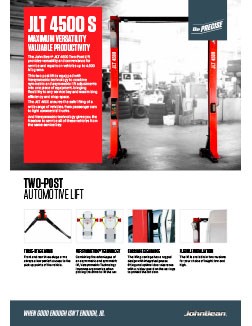

DOWNLOADS

TECH SPECS

Part Number

EELS513A JLT4500 STD
EELS514A JLT4500 TALL

Lifting Capacity

10,000 lbs. | 4,500 kg

Configuration

Versymmetric®

Overall Width

142″ | 360cm

Overall Height

Standard: 156″-169″ | 395-430cm
Extended: 181″-195″ | 460-495cm

Max Lifting Height

Surface Mount: 77.5″ | 197cm

Lifting Time

30 seconds

Power Requirements

400-415V 50Hz 3Ph

Minimum Recommended Bay Size WxL

Standard: 11’x19′ | 335x578cm

ACCESSORIES

OPTIONAL

Secondary-Control-Box
Secondary Control Box
Holder-for-Pick-Up-Pad-Adaptors
Holder for Pick-Up Pad Adaptors
Pick-Up-Pad-Extensions-3'-7.5cm
Pick-Up Pad Extensions 3" | 7.5cm
Energy-Station-Air-Supply-1-Phase-230-Volt
Energy Station Air Supply - 1 Phase 230 Volt
