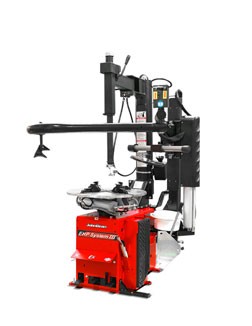

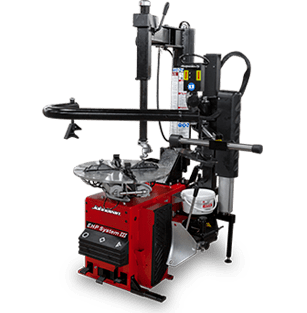

System III-E Swing-Arm Tire Changer

Looking to keep high-revenue tire business in house? Work faster without compromising safety or wheel protection with the John Bean® System III-E swing-arm tire changer.

If you regularly work on OEM or larger wheels and tires that are common on today’s modern performance cars and SUVs, the John Bean System III-E swing-arm tire changer is a fantastic addition to your shop.

The System III-E allows you to work on tires up to 15 inches in width and 42 inches in diameter, which covers a range of vehicles. An ergonomic, pedal-operated on-floor bead breaker allows technicians to work with tires all the way up to 15 inches wide with ease. Powered by twin cylinders, the nylon-covered clamping jaws make quick work of holding large wheels in place on the turntable while minimizing the chance of damage.

Big features packed in a compact footprint – the System III-E is the workhorse you need.

VERSIONs

System III (EEWH513BC2): With pneumatic bead assist.

System III (EEWH513BC): Without pneumatic bead assist.

Features

SWING-ARM

The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

ADDITIONAL FEATURES

COLUMN-INTEGRATED AIR TANK

Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

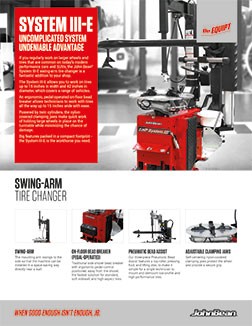

DOWNLOADS

TECH SPECS

Part Number

EEWH513BC2 – with pneumatic bead assist

EEWH513BC – without pneumatic bead assist

Max Rim Diameter

24″  |  61cm

Max Tire Width

15″  |  38cm

Max Rim Width

14″  |  36cm

Max Wheel Diameter

50″  |  127cm

Wheel Lift Capability

N/A

Power Supply

115V 1ph 60Hz 12A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

82″x49″x52″  |  208x124x132cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Lube Bucket & Bottle
Lube Brush
Protective Insert for Mount/Demount Head
Bead Breaker Blade Protector
Plastic Jaw Protector
