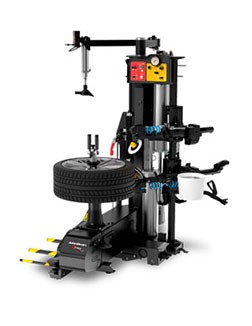

T7700 Leverless Tire Changer

Maximize shop productivity and work on a wide range of specialty, run-flat, low-profile, and high-performance tires with the John Bean® T7700 tire changer. Changing tires on modern vehicles that utilize low-profile or run-flat tires can be a challenge for shops that are not properly equipped, due to the potential for wheel damage.

The John Bean T7700 leverless tire changer provides a comprehensive set of tools that make changing a wide variety of tires quick and easy while minimizing the chance of wheel damage. Easily move tires into position with a pedal-operated wheel lift and secure the wheel with an innovative center post clamp that can accommodate a wide variety of wheels and tires.

The Dynamic Bead Breaker system utilizes two synchronized disks that adjust with pneumatic precision to practically eliminate wheel damage and make short work of removing ultra-high-performance and run-flat tires.

Our powerMONT™ tool makes mounting and demounting tires a snap. For high-volume and specialty shops, this is the ultimate productivity workhorse.

Features

POWERMONT™

Our leverless mounting and demounting tool synchronizes with the dynamic bead breaker location for optimum positioning. Featuring upgraded steel and plastic protection to ensure long-term operation, this innovative system is a perfect tool for RFT, UHP, OEM’s and low-aspect-ratio tires.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

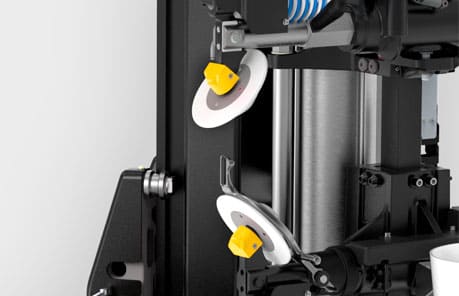

DYNAMIC BEAD BREAKER

The precisely controlled synchronized dual-disk system accurately positions both the upper and lower beads while minimizing the chance of wheel damage. Includes an adjustable tilt for tires with stiff sidewall.

CONTROL PANEL

The color-coded control panel is simple to use with tool-matching operation controls.

ADDITIONAL FEATURES

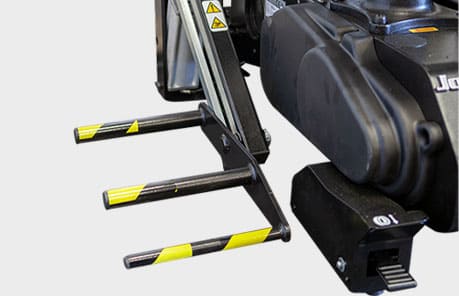

PNEUMATIC WHEEL LIFT

The pedal-operated pneumatic wheel lift assists in lifting heavy wheels to reduce technician fatigue and increase productivity.

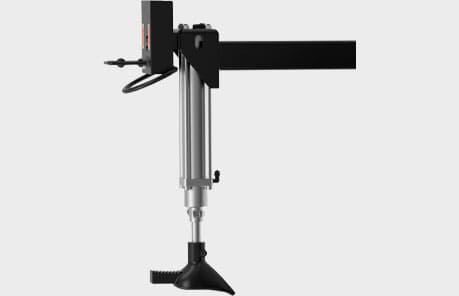

PNEUMATIC BEAD PUSHER

The Pneumatic Bead Pusher assists in the mounting process of the upper bead. Its dual-purpose design offers a reverse-side hook to help lift heavy tires.

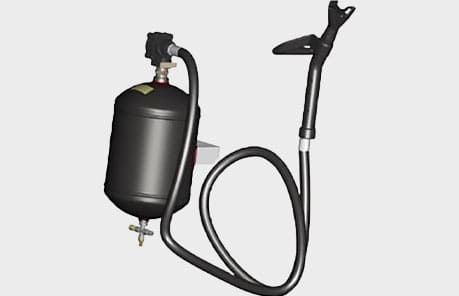

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tire to raise the bead and seat the tire to the rim.

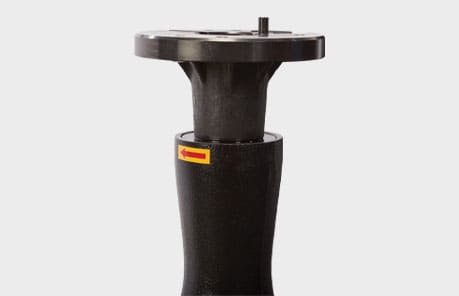

CENTER POST CLAMP

The center-post clamp design has numerous benefits, most important is the drastically reduced risk of wheel damage and less clamping restriction than the turntable design.

DOWNLOADS

TECH SPECS

Part Number

EEWH574AUA

Max Rim Diameter

30″  |  76cm

Max Tire Width

15″  |  38cm

Max Rim Width

13″  |  33cm

Max Wheel Diameter

47″  |  119cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

75″x63″x78″  |  190x160x198cm

ACCESSORIES

STANDARD

Smart Bead Spacer
Plastic Rim Protector
Bead Breaker Tool
Lube Bucket
Lube Brush
Bead Clamp
Reduction Cones
Cone Kit
powerMONT™ Tool Protector


optional

Tool Storage
Universal Reverse Mount Wheel Kit
Light Truck Wheel Kit
19mm Cylindrical Tip Pins
