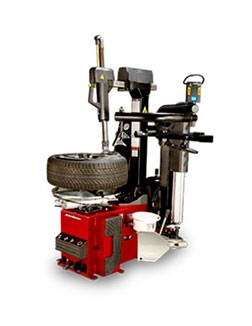

T5745T Tilt-Tower Tire Changer

Traditional tilt-tower design pairs productivity-boosting and damage-avoidance features to make the John Bean® T5745T a must-have for high-volume shops that work on a variety of wheel and tire combos.

If your shop regularly works on low-profile, high-performance tires, the T5745T tilt-tower tire changer from John Bean will be a great addition to your workflow. An integrated bead breaker with an ergonomically located pedal makes breaking even the toughest beads easy and safe.

The pneumatically locking tilt-tower allows ergonomic installation of a variety of wheel sizes. Once the tire is on the turntable, the self-adjusting four-jaw clamp, powered by twin cylinders, secures the wheel. PROspeed™ optimizes the rotational speed of the turntable automatically, reducing the risk of tire damage and speeding up the overall tire change process. Pneumatic bead assist comes standard and provides an additional suite of features that make changing ultra-high-performance and run-flat tires a snap.

This is the pinnacle of tilt-tower tire changer technology.

Features

TILT-TOWER

The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.

ADDITIONAL FEATURES

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

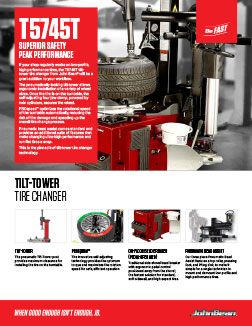

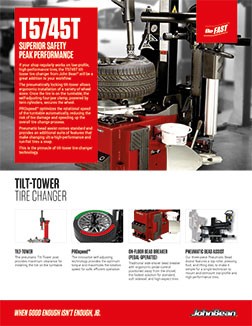

DOWNLOADS

TECH SPECS

Part Number

EEWH554B

Max Rim Diameter

26″  |  66cm

Max Tire Width

17″  |  43cm

Max Rim Width

16″  |  41cm

Max Wheel Diameter

47″  |  119cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

58″x65″x90″  |  147x165x229cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Plastic Rim Protector
Bead Breaker Blade Protector
Lube Bucket
Lube Brush
Offset Mount/Demount Head Kit
Protective Insert for Mount/Demount Head
