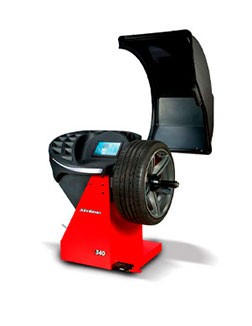

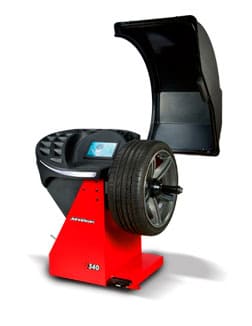

B340P Semi-Automatic Touchscreen Wheel Balancer
The John Bean® B340P wheel balancer combines a user-friendly interface and productivity-enhancing features to help high-volume shops get more jobs done in less time.
Minimizing workflow disruptions and maximizing productivity is challenging for high-volume tire shops, but the B340P is up to the task. This unique system features an integrated weight tray and ergonomic touchscreen monitor with an easy-to-operate user interface. The software allows for two user configurations, so technicians can take turns while balancing different wheels sets. Productivity enhancing features like smartSonar™, easyWeight™, easyALU™, and Power Clamp™ allow users to move through the wheel balancing process with increased speed and with the highest level of accuracy.
The B340P wheel balancer from John Bean is the perfect addition to shops looking for premium balancing results to increase wheel service profitability.
Automatic rim width detection using sonar sensors to avoid manual entry errors.
The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.
Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.
STOP IN POSITION
Touch the screen to automatically rotate the wheel to the weight application position.
VIDEO: SEE IT IN ACTION
INTEGRATED TOUCHSCREEN MONITOR
This unique design combines the monitor with the weight tray for increased ergonomics and a more convenient wheel balancing operation.
SEMI-AUTOMATIC DATA ENTRY
Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.
SPLIT WEIGHT MODE
This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.
Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.
Automatic Rim Diameter Range
Automatic Rim Width Range
Automatic Scanner Offset Range
SAPE Rim Diameter Range
8″-25″ | 20-64cm
SAPE Rim Width Range
3″-15″ | 8-38cm
SAPE Working Range
1.3″-13″ | 3-33cm
Manual Rim Diameter Range
8″-32″ | 20-81cm
Manual Offset Range
1″-20″ | 3-51cm
Manual Rim Width Range
1″-20″ | 3-51cm
Max Wheel Diameter
42″ | 107cm
Max Wheel Weight
154 lbs. | 70 kg
74″x34″x52″ | 188x87x133cm
254 lbs. | 115 kg
