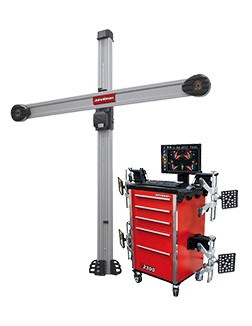

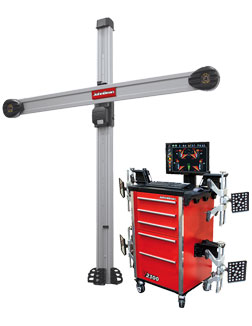

V2300 Imaging Wheel Alignment System

The V2300 brings together a classic, robust design with productivity-boosting software and high-speed camera technology to quickly and accurately align a variety of vehicle types.

We’ve designed the John Bean® V2300 wheel aligner to be an effective solution at the core of your shop’s operations by including advanced dimensions such as wheel diameter, cross dimensions, and aftermarket OEM procedures. We’ve even created an extensive library of on-demand support videos to help technicians solve pesky alignment issues while performing alignment services. High-end features without the high-end price, the V2300 is a perfect balance of old-school quality and new-school tech.

VERSIONS

V2300 TT AC400 (EEWAEU545H4)

V2300 AC100 (EEWAEU545G1)

V2300 Lift AC100 (EEWAEU545G2)

V2300 Lift AC400 (EEWAEU545H2)

V2300 TT AC100 (EEWAEU545G4)

V2300 AC400 (EEWAEU545H1)

Features

ADVANCED DIMENSIONS

Cross Dimensions measurements identify frame or structural damage before alignment adjustments are made. Wheel Diameter identifies mismatched tyre sizes, a potential cause of vehicle pulling and drive train damage.

MODIFIED VEHICLES

Ensure accurate alignment for vehicles that have modified OEM specifications with our advanced alignment software that allows for effortless changes in procedure flow.

OEM PROCEDURES

The software provides the recommended procedures defined by the manufacturer and indicates the correct clamps for an accurate OEM-specified wheel alignment.

WHEELS OFF ADJUSTMENT

Remove the wheel and attach the target directly to a brake rotor for easier access to adjustment.

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES

AC400 CLAMPS

The clamp attaches to the tyre with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

AC100 CLAMPS

Fast and easy to use with self-centring design, two-sided claws provide reliable clamping, even over hub caps.

ADJUSTMENTS

MEASUREMENTS

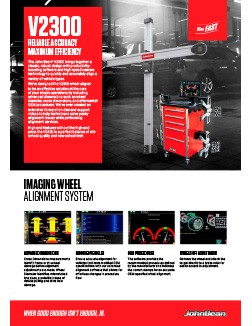

DOWNLOADS

TECH SPECS

Part Number

EEWAEU545G4 – V2300 TT AC100

EEWAEU545H4 – V2300 TT AC400

Tyre Diameter (AC400)

19″-39″ | 48-99cm

Wheel Diameter (AC100)

11″-22″ | 28-56cm

Track Width

48″-96″ | 122-244cm

Wheelbase

79″-180″ | 201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

Turntables
Paddle kit
Slip plates (2x)
AC400 Wheel Clamp Floor Stand (2 stands required)
AC100 Wheel Clamp Floor Stand
Mobility Kit
Wheels Off Hub Adaptor
AC400 Dually Adapter
4" Extension Kit
2" Wheel Hub Extension
Low Profile Tyre Adapter
Quick Clamp Kit
