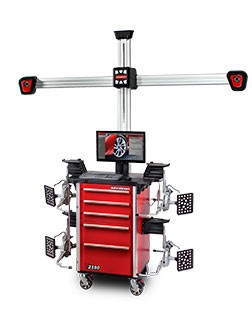

V2380 Imaging Diagnostic Wheel Alignment System

The John Bean® V2380 wheel aligner combines a classic post and beam design with the ultimate productivity-boosting technology to give shop owners the edge they need to perform efficient wheel alignment services.

If your shop is looking to perform accurate alignment services at a fast pace, the John Bean V2380 is designed to get the job done with fast compensation and optimised alignment flow. Work quickly and accurately without slowing down critical alignment procedures by using our advanced notification system that instantly alerts the technician of suspension stress issues or other errors.

Smart features like fast compensation and instant error notifications allow technicians to quickly move through optimised alignment steps.

Productivity boosting features like automatic camera tracking, EZ-Toe, and our exclusive AC400 wheel clamps help you drive more alignments through your shop.

VERSIONS

V2380 Lift (EEWAEU545TB4)

Features

FAST COMPENSATION AND OPTIMISED ALIGNMENT FLOW

Streamline workflow with fast measurement compensation and an optimised alignment flow that enhances productivity by eliminating unnecessary steps in the alignment process.

ADVANCED NOTIFICATION SYSTEM
The advanced notification system provides critical information without slowing down the alignment process, automatically detecting and compensating suspension stress issues or environmental errors, only notifying the technician when necessary to provide additional information for corrective action.
AUDIT MODE
Quickly uncover extra service opportunities with alignment audit reports. This report includes measurement of track width, front and rear toe, camber, wheelbase, wheel diameter, and cross dimensions.
AUTO CAMERA TRACKING

Automatic camera tracking eliminates the need to readjust the cameras after raising the lift, it retains ultimate accuracy while moving the vehicle.

ADDITIONAL FEATURES

RIDE HEIGHT

Eliminate manual data entry, speed up measuring, and increase accuracy using our specially designed, optional Ride Height Targets.

MOBILITY KIT

The optional kit allows you to mount the cross-beam to the cabinet for flexible installation and usage, enabling you to move the system around the shop freely and out of the way as needed.

AC100 CLAMPS

Fast and easy to use with self-centring design, two-sided claws provide reliable clamping, even over hub caps.

AC400 CLAMPS

The clamp attaches to the tyre with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

ADJUSTMENTS

MEASUREMENTS

DOWNLOADS

TECH SPECS

Part Number

EEWAEU545TB4 – V2380 Lift



Tyre Diameter (AC400)

19″-39″ | 48-99cm

Wheel Diameter (AC100)

11″-22″ | 28-56cm

Track Width

48″-96″ | 122-244cm

Wheelbase

79″-180″ | 201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

Turntables
Paddle kit
Slip plates (2x)
AC400 Wheel Clamp Floor Stand (2 stands required)
AC100 Wheel Clamp Floor Stand
Mobility Kit
Wheels Off Hub Adaptor
AC400 Dually Adapter
4" Extension Kit
2" Wheel Hub Extension
Low Profile Tyre Adapter
Quick Clamp Kit
