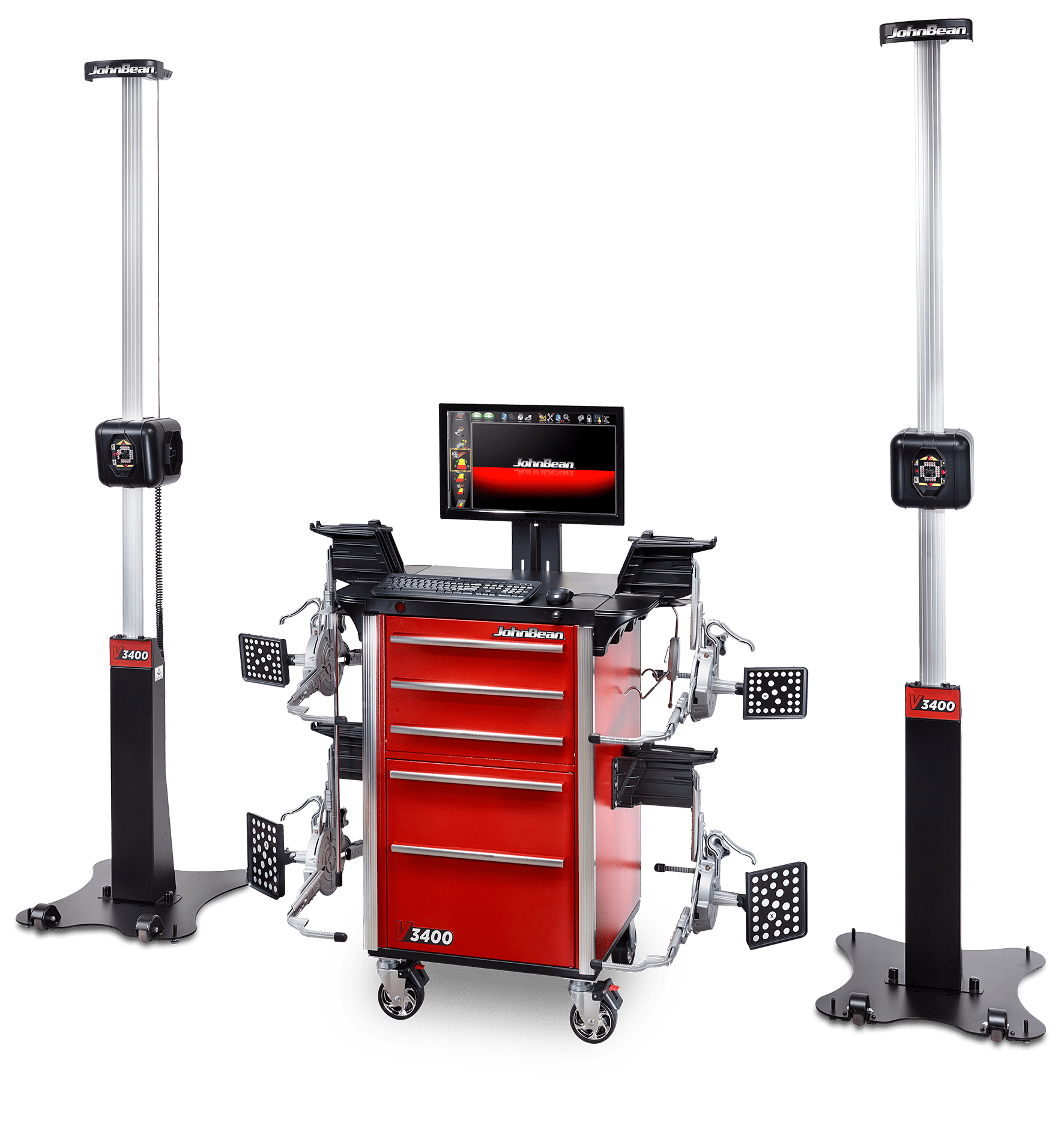

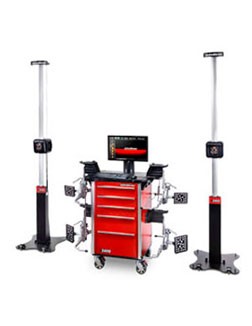

V3400 Wireless Drive-Through Wheel Alignment System

If you’re looking for the ultimate in precision with a high degree of mobility and installation flexibility, look no further than the John Bean® V3400 wheel alignment machine.

The V3400 utilizes a drive-through design with fully wireless Bluetooth® connected camera towers for easy installation in various bay types, especially when paired with the optional mobility kit.

Automatic camera tracking eliminates the need to readjust the camera after raising the lift, while a continuously calibrating third camera retains ultimate accuracy. Touchless AC400 clamps accommodate a full range of tyre sizes and ensure a safe, damage-free attachment without touching the rim while applying limited clamping force. Each step in the alignment procedure has been carefully designed to provide the ultimate precision for every adjustment. Our advanced software features enable technicians to perform specialized vehicle measurements such as scrub radius, caster trail, pro-Ackerman, and more, making the V3400 ideal for top-tier precision and convenience in wheel alignment.

VERSIONS

V3400 w/AC400 (EEWAEU553B1)

V3400 w/AC100 (EEWAEU553H1)

Features

DRIVE-THROUGH DESIGN
The dual-tower design can accommodate larger-width vehicles by allowing the technician to position the towers apart at optimal distances. This also leaves space at the front of the vehicle to perform other tasks such as ADAS recalibration.

MOBILITY KIT

The optional mobility kit allows for easy relocation of the XD camera alignment towers within the shop, giving the ability to move between bays or out of the way, as needed.

OEM PROCEDURES

The software provides the recommended procedures defined by the manufacturer and indicates the correct clamps for an accurate OEM-specified wheel alignment.

AUTOMATIC CAMERA TRACKING

Cameras move automatically up and down following the targets, eliminating manual adjustments of the camera beam.

ADDITIONAL FEATURES

RIDE HEIGHT

Ensure optimal precision even on modified vehicles with optional ride height targets that eliminate the need for manual data entry.

MODIFIED VEHICLE FLOW

Ensure accurate alignment for vehicles that have modified OEM specifications with our advanced alignment software that allows for effortless changes in procedure flow.

AUDIT MODE

Uncover extra service opportunities with precise, and fast alignment audit reports. This report includes measurement of track width, front and rear toe, camber, wheelbase, wheel diameter, and cross dimensions.

CUSTOMISABLE ALIGNMENT PROCEDURES

Easily modify alignment procedure flow by selecting the steps needed to perfectly meet the exact needs of your shop.

AC400 CLAMPS

The clamp attaches to the tyre with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

AC100 CLAMPS

Fast and easy to use with self-centering design, two-sided claws provide reliable clamping, even over hub caps.

ADJUSTMENTS

MEASUREMENTS

DOWNLOADS

TECH SPECS

Part Number

EEWAEU553B1 – V3400 AC400

EEWAEU553H1 – V3400 AC100

Tyre Diameter (AC400)

19″-39″  |  48-99cm

Wheel Diameter (AC100)

11″-22″ | 28-56cm

Track Width

48″-96″  |  122-244cm

Wheelbase

79″-180″  |  201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock-1
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

Turntables
Paddle kit
Slip plates
AC400 Wheel Clamp Floor Stand (2 stands required)
AC100 Wheel Clamp Floor Stand
Quick Clamp Kit
Wheels Off Hub Adapter
AC400 Dually Adapter
4" Extension Kit
2" Wheel Hub Extension
Low Profile Tyre Adapter
