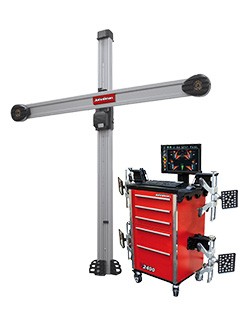

V2400 Imaging Wheel Alignment System

We’ve packaged productivity-enhancing software that’s designed to be flexible along with helpful technology that’s designed to reduce customer comebacks and boost alignment revenue.

The John Bean® V2400 wheel aligner combines advanced software that can be easily customised per alignment procedure to work with modified vehicles or with more traditional designs to easily fit into your shop’s workflow.

Working along with our smallest, lightest XD targets, touchless AC400 wheel clamp system, and high-resolution cameras, our easy-to-use software allows technicians of all skill levels to quickly and accurately perform alignment services even on vehicles with aftermarket wheels and tyres. Features like EZ-Toe and VODI™ instantly boost technician productivity, while advanced measurements ensure that the vehicle is correctly aligned the first time. All this adds up to a wheel aligner that provides speedy, accurate alignments with less potential for customer comebacks.

VERSIONS

V2400 Lift AC400 (EEWAEU546H2)

V2400 Lift AC100 (EEWAEU546G2)

V2400 AC400 (EEWAEU546H1)

V2400 AC100 (EEWAEU546G1)

Features

CUSTOMISABLE ALIGNMENT PROCEDURES

Easily modify alignment procedure flow by selecting the steps needed to perfectly meet the exact needs of your shop.

MODIFIED VEHICLES

Ensure accurate alignment for vehicles that have modified OEM specifications with our advanced alignment software that allows for effortless changes in procedure flow.

OEM PROCEDURES

The software provides the recommended procedures defined by the manufacturer and indicates the correct clamps for an accurate OEM-specified wheel alignment.

MOBILITY KIT

The optional kit allows you to mount the cross-beam to the cabinet for flexible installation and usage, enabling you to move the system around the shop freely and out of the way as needed.

ADDITIONAL FEATURES

RIDE HEIGHT

Eliminate manual data entry, speed up measuring, and increase accuracy using our specially designed, optional Ride Height Targets.

ADVANCED MEASUREMENTS

Measurements designed for advanced suspension troubleshooting and modified suspensions, including advanced ride height entry, pro-Ackerman, graphical caster trail, scrub radius, and SAI.

AC400 CLAMPS

The clamp attaches to the tyre with optimal force without touching the rim; ensuring a safe, fast, and consistent clamping experience.

AC100 CLAMPS

Fast and easy to use with self-centring design, two-sided claws provide reliable clamping, even over hub caps.

ADJUSTMENTS

MEASUREMENTS

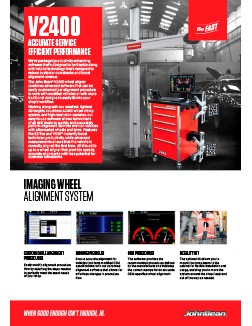

DOWNLOADS

TECH SPECS

Part Number

EEWAEU546G1 (AC 100)

EEWAEU546H1 (AC 400)

Tyre Diameter (AC400)

19″-39″ | 48-99cm

Wheel Diameter (AC100)

11″-22″ | 28-56cm

Track Width

48″-96″ | 122-244cm

Wheelbase

79″-180″ | 201-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

Turntables
Paddle kit
Slip plates (2x)
AC400 Wheel Clamp Floor Stand (2 stands required)
AC100 Wheel Clamp Floor Stand
Quick Clamp Kit
Wheels Off Hub Adaptor
AC400 Dually Adapter
4" Extension Kit
2" Wheel Hub Extension
Low Profile Tyre Adapter
