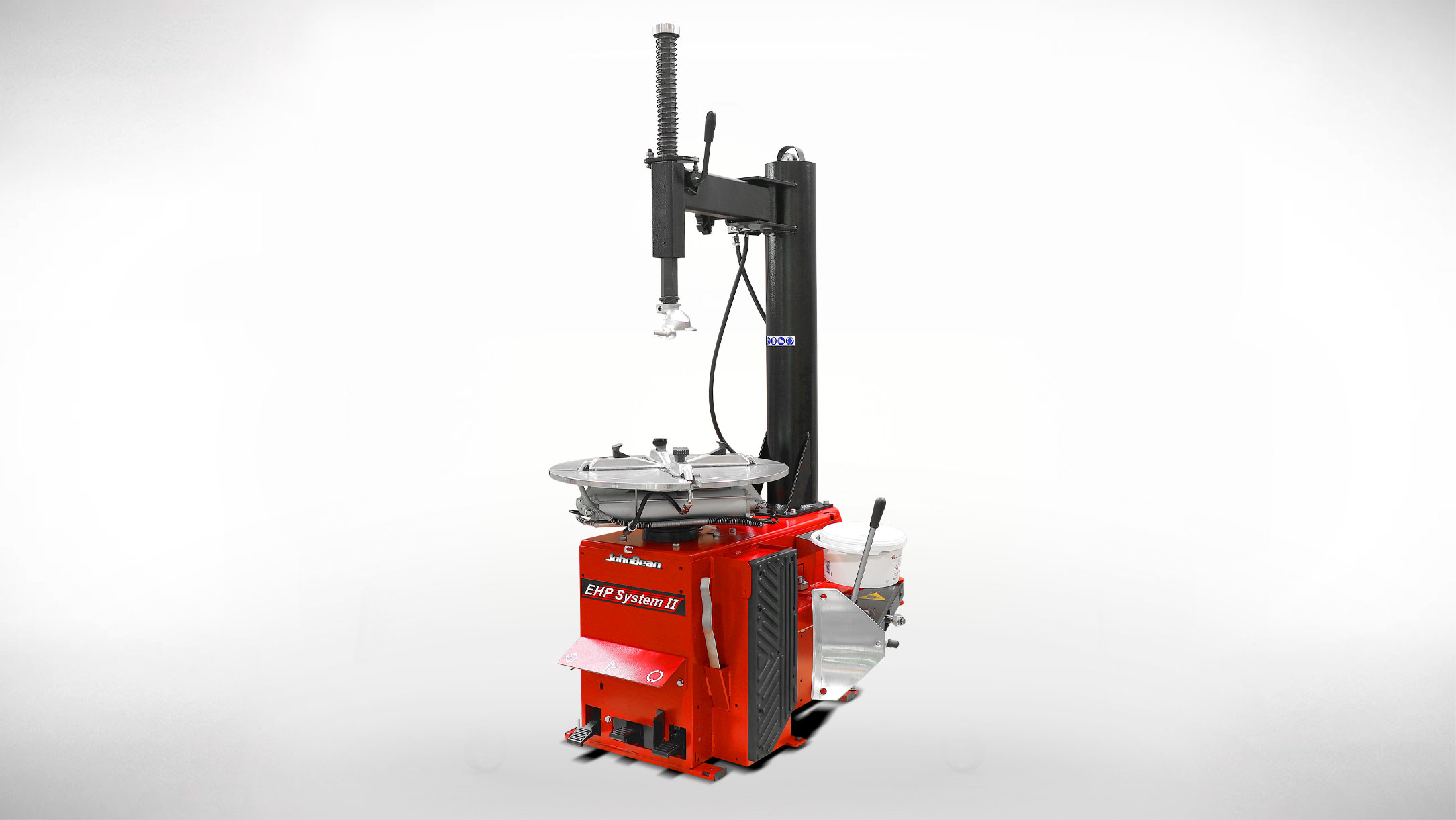

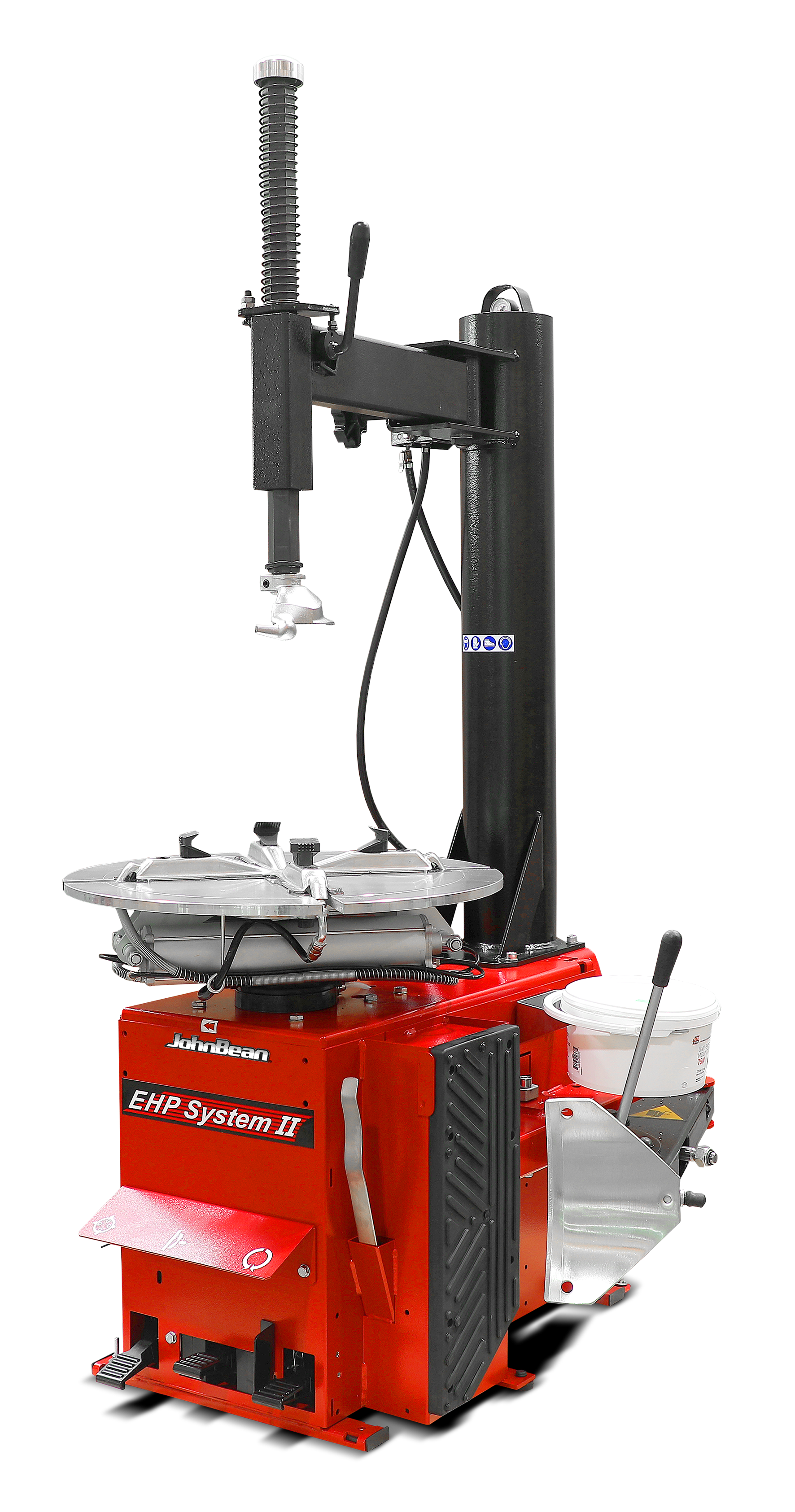

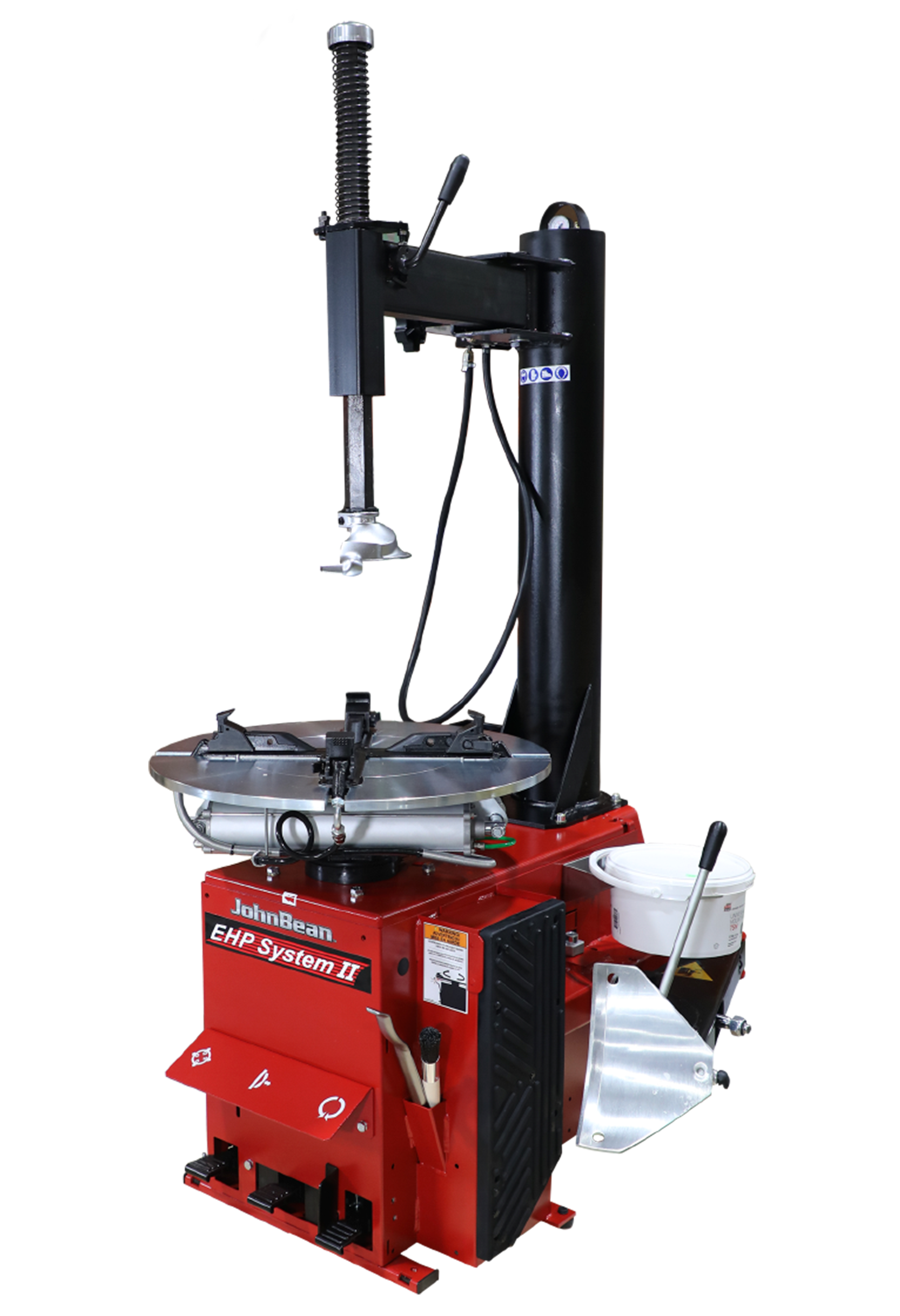

System II-E Swing Arm Tire Changer

Keep high-revenue tire business in-house and work faster without compromising safety or wheel protection by adding the John Bean® System II-E swing-arm tire changer to your shop.

Today’s modern cars, trucks, and SUVs come with a wide variety of hard-to-service wheel and tire combos, but the John Bean System II-E swing-arm tire changer is up to the task.

The System II-E allows you to work on a wide range of tires, up 12 inches in width and 40 inches in diameter. An ergonomic pedal-operated on-floor bead breaker allows technicians to work with tires all the way up to 13 inches with ease.

Powered by twin cylinders, nylon-covered clamping jaws make quick work of holding large wheels in place on the turntable while minimizing the chance of damage.

Big features, packed in a shop-friendly footprint – the System II-E is the workhorse you need.

VERSIONs

System II (EEWH512BU): Fixed clamping jaw and 20″ turntable.

Features

SWING-ARM

The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

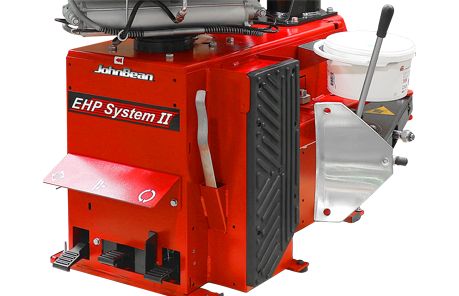

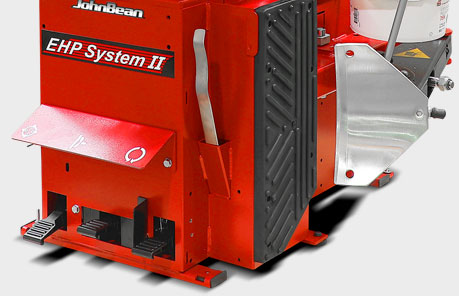

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

COLUMN-INTEGRATED AIR TANK

Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

ADDITIONAL FEATURES

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

ETL CERTIFICATION

This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1

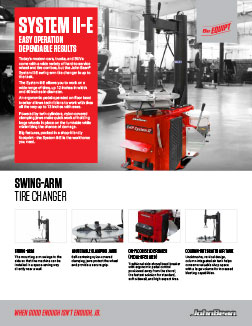

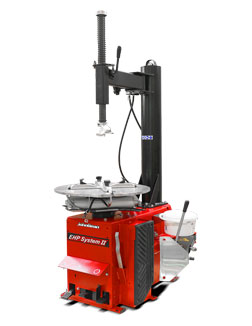

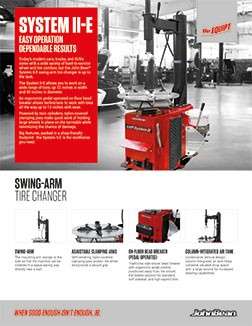

DOWNLOADS

TECH SPECS

Part Number

EEWH512BE

EEWH512BU – fixed clamping jaw

Max Rim Diameter

24″  |  61cm

Max Tire Width

13″  |  33cm

Max Rim Width

12″  |  31cm

Max Wheel Diameter

39″  |  99cm

Wheel Lift Capability

N/A

Power Supply

115V 1ph 60Hz 12A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

71″x45″x55″  |  180x114x140cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Lube Bucket
Lube Brush
Protective Insert for Mount/Demount Head
Plastic Jaw Protector
