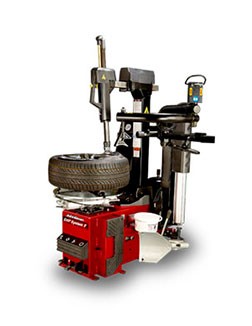

System V Tilt-Tower Tire Changer

Traditional tilt-tower design meets productivity-boosting and damage avoidance features to make the John Bean® System V a solid addition to smaller, independent shops that service a variety of wheel and tire combos.

For high-volume shops that service OEM cars, SUV’s, and light to medium truck applications, the System V is a great addition to your workflow. An on-floor bead breaker with an ergonomically located pedal makes breaking even the toughest beads easy and safe.

The pneumatically locking tilt-tower configuration easily moves out of the way to ergonomically allow placement of small to large wheels. Once the tire is on the turntable, the self-adjusting four-jaw clamp secures the wheel clamps with power from twin cylinders.

Comprehensive pneumatic bead assist comes standard and provides an additional suite of features that make changing ultra-high performance and run-flat tires a snap.

Traditional design, with modern productivity-boosting features, makes the System V a great addition to your shop.

Features

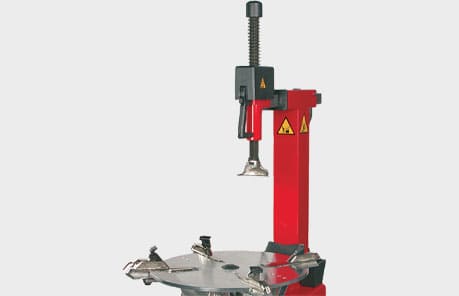

TILT-TOWER

The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

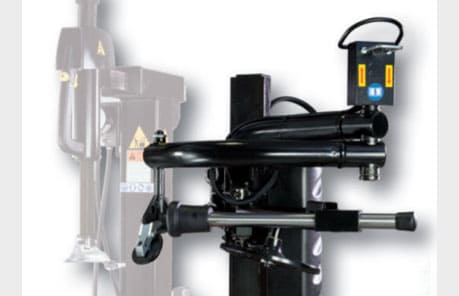

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

ADDITIONAL FEATURES

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

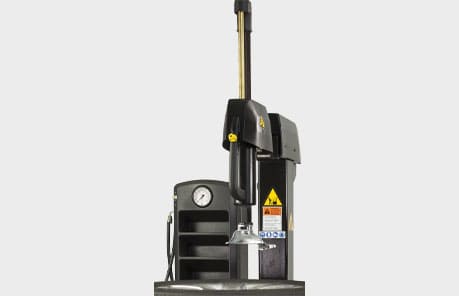

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

ETL CERTIFICATION

This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1

DOWNLOADS

TECH SPECS

Part Number

EEWH591AUA

Max Rim Diameter

26″  |  66cm

Max Tire Width

17″  |  43cm

Max Rim Width

16″  |  41cm

Max Wheel Diameter

47″  |  119cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

115V 1ph 60Hz 12A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

58″x65″x90″  |  147x165x229cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever & Sleeve
Plastic Rim Protector
Bead Breaker Blade Protector
Lube Bucket
Lube Brush
Quick Exchange Device & Mount/Demount Head
Protective Insert for Mount/Demount Head
