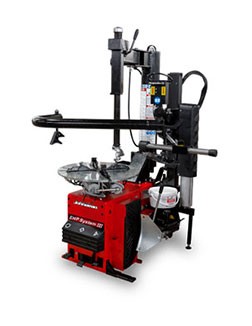

System III-E Swing-Arm Tire Changer
Looking to keep high-revenue tire business in house? Work faster without compromising safety or wheel protection with the John Bean® System III-E swing-arm tire changer.
If you regularly work on OEM or larger wheels and tires that are common on today’s modern performance cars and SUVs, the John Bean System III-E swing-arm tire changer is a fantastic addition to your shop.
The System III-E allows you to work on tires up to 15 inches in width and 50 inches in diameter, which covers a range of vehicles. An ergonomic, pedal-operated on-floor bead breaker allows technicians to work with tires all the way up to 15 inches wide with ease. Powered by twin cylinders, the nylon-covered clamping jaws make quick work of holding large wheels in place on the turntable while minimizing the chance of damage.
Big features packed in a compact footprint – the System III-E is the workhorse you need
System III (EEWH589AUA1): With pneumatic bead assist.
System III (EEWH589AUA): Without pneumatic bead assist.
The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

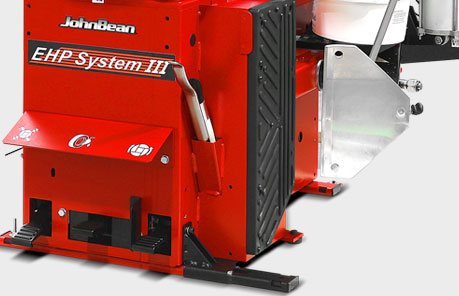

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)
Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

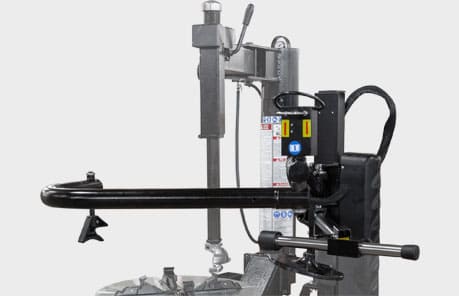

PNEUMATIC BEAD ASSIST
Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.
ADJUSTABLE CLAMPING JAWS
Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

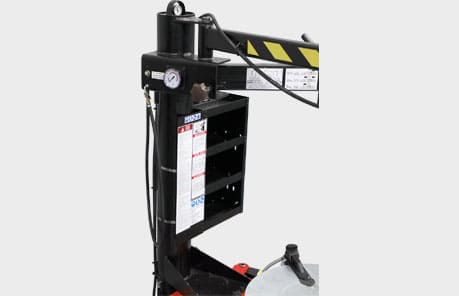

COLUMN-INTEGRATED AIR TANK
Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.
TABLETOP BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1
EEWH589AUA1 – with pneumatic bead assist
EEWH589AUA – without pneumatic bead assist
Max Rim Diameter
24″ | 61cm
Max Tire Width
15″ | 38cm
Max Rim Width
14″ | 36cm
Max Wheel Diameter
50″ | 127cm
Wheel Lift Capability
115V 1ph 60Hz 12A
Air Pressure Required
116-174 PSI | 8-12 bar
82″x49″x52″ | 208x124x132cm
