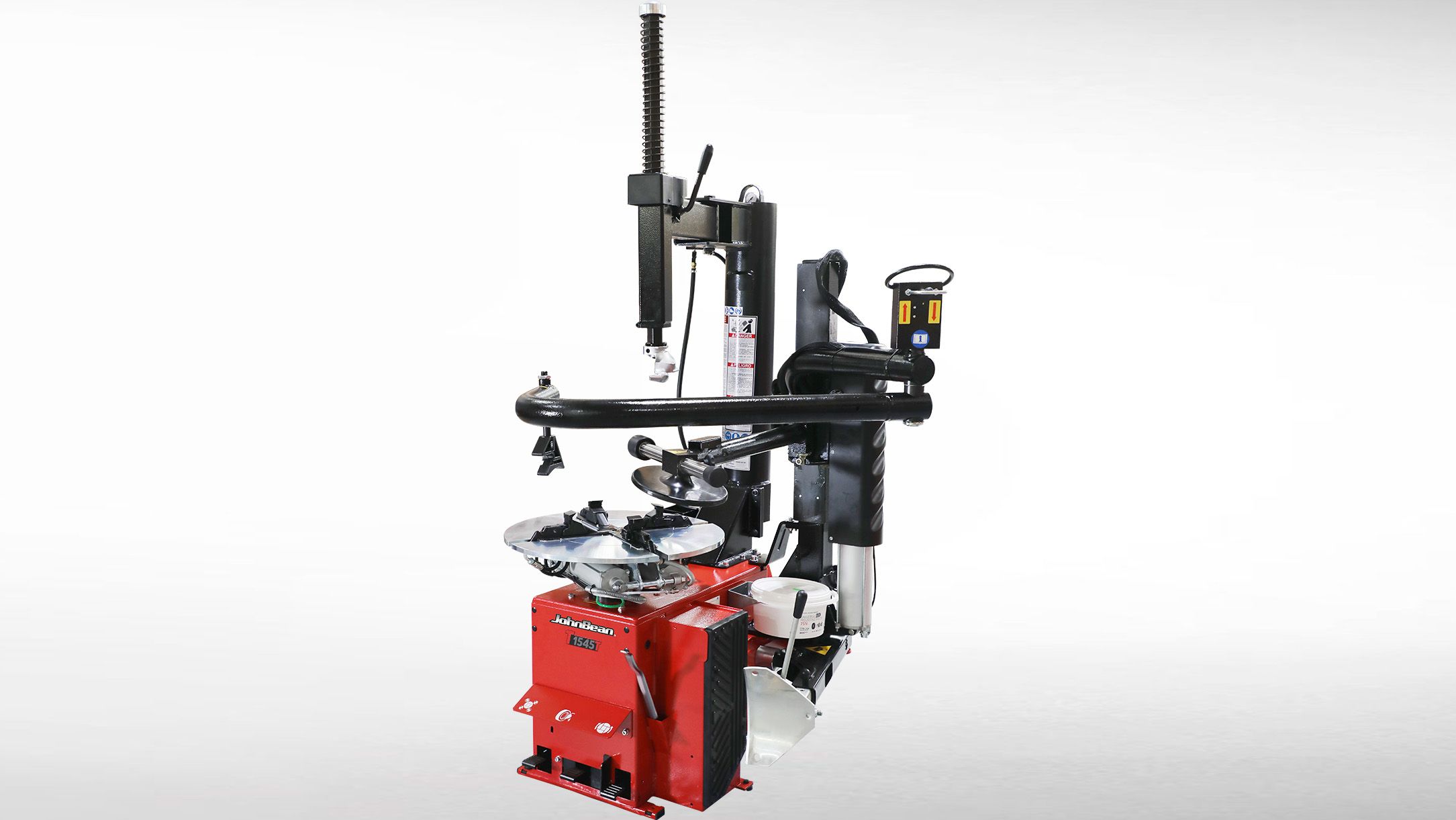

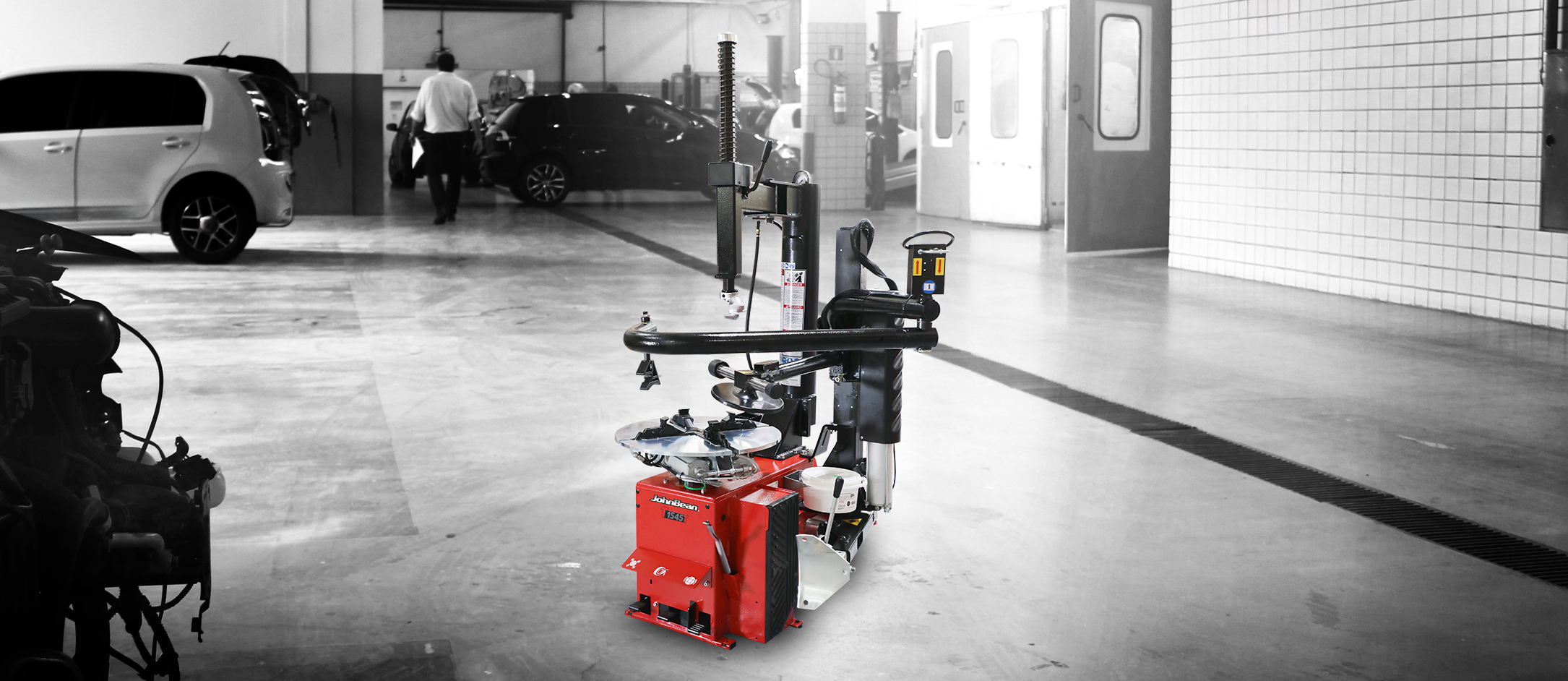

T1545T Swing-Arm Tire Changer

The John Bean® T1545T brings together a classic swing-arm design with a set of productivity-boosting features that are designed to maximize productivity and reduce the chance of wheel damage.

From breaking even the most stubborn beads to quickly and easily mounting a wide variety of tire sizes and styles, the John Bean T1545T has the features you need to get the job done right. The on-floor bead breaker is operated by an ergonomically located pedal placed behind a guard to prevent accidental operation.

The John Bean patented two-cylinder system easily grips a wide variety of wheel sizes with self-centering, nylon-covered clamps. To reduce the risk of overinflation, an integrated pressure monitoring system ensures that tires do not exceed 55 PSI, while PROspeed™ provides optimized torque and RPM during the mounting process.

The John Bean T1545T helps you keep tire business where it belongs – right in your shop.

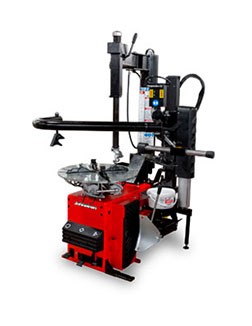

*Pictured with optional pneumatic bead assist.

Features

SWING-ARM

The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

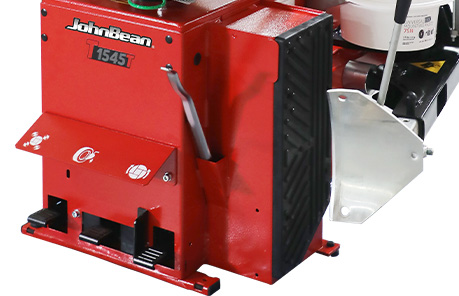

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.

*OPTIONAL Feature on T1545T

ADDITIONAL FEATURES

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

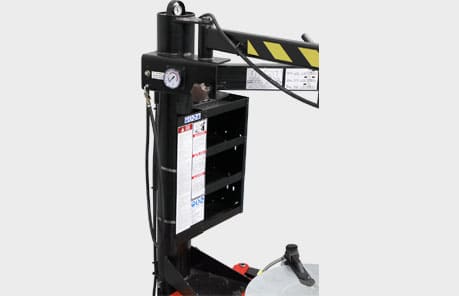

COLUMN-INTEGRATED AIR TANK

Unobtrusive, vertical design, column-integrated air tank helps conserve valuable shop space with a large volume for increased blasting capabilities.

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

ETL CERTIFICATION

This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1

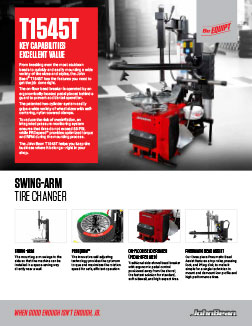

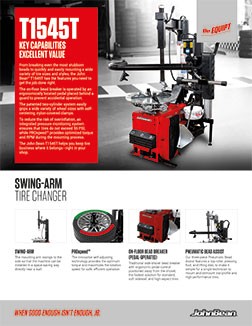

DOWNLOADS

TECH SPECS

Part Number

EEWH589AUB

Max Rim Diameter

24″  |  61cm

Max Tire Width

15″  |  38cm

Max Rim Width

14″  |  36cm

Max Wheel Diameter

50″  |  127cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

82″x49″x52″  |  208x124x132cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Plastic Rim Protector
Bead Breaker Blade Protector
Lube Bucket
Lube Brush
Protective Insert for Mount/Demount Head
