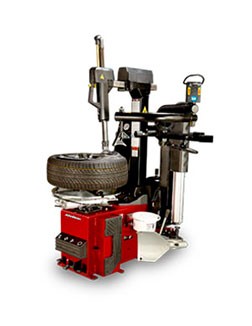

T5745T Tilt-Tower Tire Changer
Traditional tilt-tower design pairs productivity-boosting and damage-avoidance features to make the John Bean® T5745T a must-have for high-volume shops that work on a variety of wheel and tire combos.
If your shop regularly works on low-profile, high-performance tires, the T5745T tilt-tower tire changer from John Bean will be a great addition to your workflow. An integrated bead breaker with an ergonomically located pedal makes breaking even the toughest beads easy and safe.
The pneumatically locking tilt-tower allows ergonomic installation of a variety of wheel sizes. Once the tire is on the turntable, the self-adjusting four-jaw clamp, powered by twin cylinders, secures the wheel. PROspeed™ optimizes the rotational speed of the turntable automatically, reducing the risk of tire damage and speeding up the overall tire change process. Pneumatic bead assist comes standard and provides an additional suite of features that make changing ultra-high-performance and run-flat tires a snap.
This is the pinnacle of tilt-tower tire changer technology.
Features
TILT-TOWER
The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.
PROSPEED™
The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.
ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)
Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.
PNEUMATIC BEAD ASSIST
Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tires.
ADDITIONAL FEATURES
ADJUSTABLE CLAMPING JAWS
Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.
TABLETOP BEAD SEATER
A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
PNEUMATIC VERTICAL ARM
Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.
TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE
The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.
ETL CERTIFICATION
This product conforms to UL STD 201 and is Certified to CSA STD C22.2 #68 Garages Equipment Standard by Intertek (ETL). ETL Certified to CAN/CSA-E60730-1
TECH SPECS
Part Number
EEWH591AUB
Max Rim Diameter
26″ | 66cm
Max Tire Width
17″ | 43cm
Max Rim Width
16″ | 41cm
Max Wheel Diameter
47″ | 119cm
Wheel Lift Capability
154 lbs. | 70 kg
Power Supply
230V 1ph 50-60Hz 16A
Air Pressure Required
116-174 PSI | 8-12 bar
Dimensions HxWxD
58″x65″x90″ | 147x165x229cm
