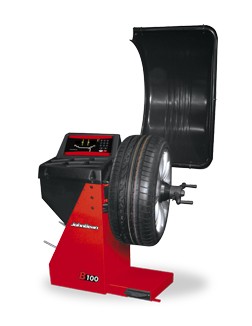

B100 Semi-Automatic Integrated Digital Wheel Balancer

The John Bean® B100 is an easy-to-navigate semi-automatic wheel balancer that helps technicians get through the balancing process effortlessly and add more business to the shop.

Small in size, but equipped with features, the B100 can fit virtually anywhere in the shop. With an integrated digital display to assist technicians through the wheel balancing process, the B100 allows for easy operation, helping technicians to measure wheels and quickly move through a balancing cycle. A protective wheel cover adds safety during the operation and keeps the technician protected from flying objects.

Increase your profits and keep valuable wheel service business in-house with the John Bean B100 wheel balancer.

Versions

B100N (EEWB572AE7) – does not include a wheel cover since measuring speed is less than 100 rpm

Features

QUICK NUT WHEEL CLAMP

An easy-to-use manual clamping device that allows a secure attachment of the wheel to the balancer shaft.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

WHEEL COVER

The wheel cover prevents objects from flying, protecting technicians from possible accidents.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

ADDITIONAL FEATURES

Integrated Digital LED Display

Raised monitor and weight-tray-integrated touchpad for convenient operational control.

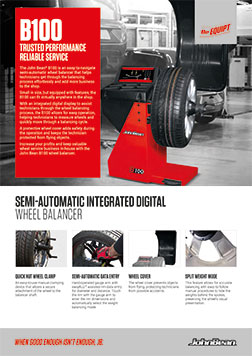

DOWNLOADS

TECH SPECS

Part Number

EEWB572AE1 – B100
EEWB572AE7 – B100N

Wheel Clamping

Quick Nut

SAPE Rim Diameter Range

8″-25″ | 20-64cm

SAPE Rim Width Range

3″-15″ | 8-38cm

SAPE Working Range

1.3″-13″ | 3-33cm

Manual Rim Diameter Range

8″-32″ | 20-81cm

Manual Offset Range

1″-20″ | 3-51cm

Manual Rim Width Range

1″-20″ | 3-51cm

Max Wheel Diameter

37.8″ | 96cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

67″x40″x43″ | 171x100x110cm

Net Weight

154 lbs. | 70 kg

ACCESSORIES

STANDARD

Three Centring Cone Set 42-116 mm
Weight Pliers
Weight Remover
Clamping Cone with Rubber Cushion
Calibration Weight
4 Storage Pegs
Quick Nut
Rim Width Caliper

OPTIONAL

Clamping Plate 200 mm
Light Truck Kit - Spacer and Cone 122-172 mm
Set of 9 Centering Collets 52,5-122 mm
Set of FP Quick Flanges P
External Insulation Transformer
