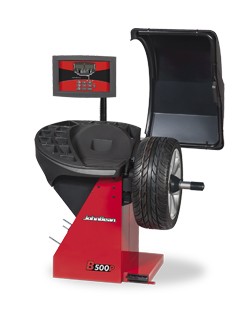

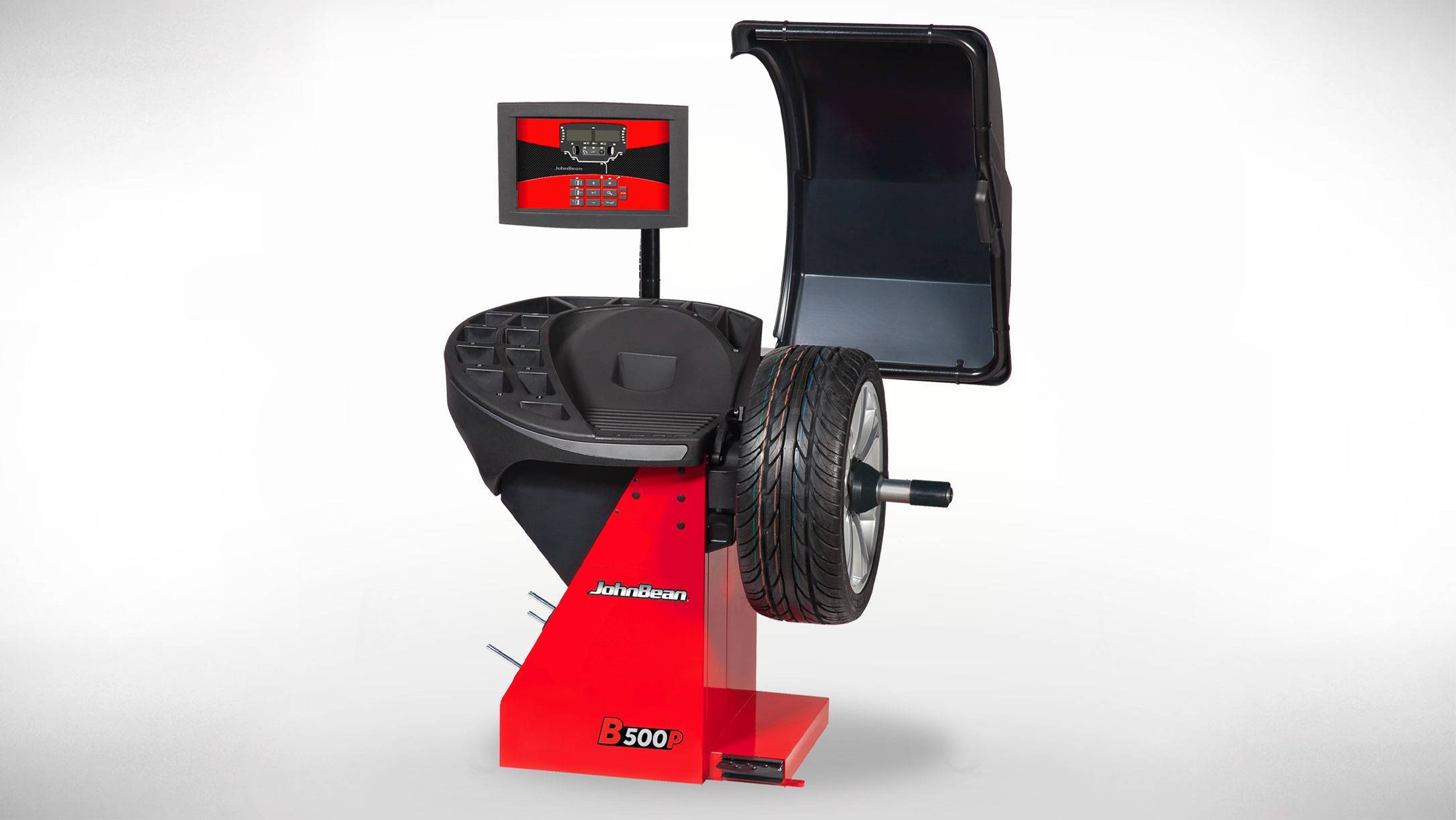

B500P Semi-Automatic Digital Display Wheel Balancer

Keep your shop operating at full speed with the digital semi-automatic John Bean® B500P wheel balancing machine.

The B500P was designed with productivity-enhancing features like smartSonar™ automatic rim width detection and easyWeight™ laser technology which optimises the balancing process by indicating the exact location for perfect weight placement. The B500P is equipped with our exclusive Power Clamp™ wheel clamping device which provides a constant clamping force that is consistently applied throughout the operation, adding even more efficiency and precision to the wheel balancing process. An ergonomic raised digital display provides convenient viewing of the readings.

The B500P wheel balancer from John Bean is ideal for shops that are looking for easy-to-operate equipment that can grow profit by increasing productivity in every balancing cycle.

VERSIONS

B500L (EEWB574AE1) – uses a Quick Nut Wheel Clamp

Features

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

EASYWEIGHT™

Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.

POWER CLAMP™

The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

ADDITIONAL FEATURES

MONITOR WITH DIGITAL LED DISPLAY

Raised monitor with intuitive LED display and control panel.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

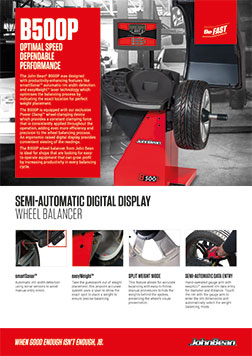

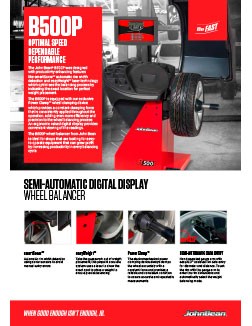

DOWNLOADS

TECH SPECS

Part Number

EEWB574APE1 – B500P
EEWB574AE1 – B500L

Wheel Clamping

Power Clamp™

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

SAPE Working Range

1.3″-13″  |  3-33cm

Manual Rim Diameter Range

8″ – 32″  |  20-81cm

Manual Offset Range

1″ – 20″  |  3-51cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

72″x34″x52″  |  183x87x131cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Three Centring Cone Set 42-116 mm
Weight Pliers
Weight Remover
Clamping Cone with Rubber Cushion
Calibration Weight
4 Storage Pegs
Power Clamp Sleeve

OPTIONAL

Clamping Plate 200 mm
Light Truck Kit - Spacer and Cone 122-172 mm
Set of 9 Centering Collets 52,5-122 mm
Set of FP Quick Flanges P
External Insulation Transformer
