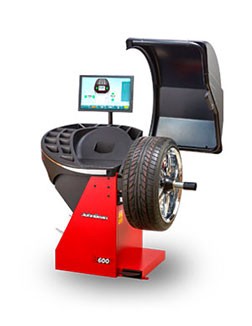

B600P Semi-Automatic Touchscreen Wheel Balancer

The John Bean® B600P is a semi-automatic wheel balancing machine designed for high-volume shops that are looking for equipment that offers shorter cycle times while repeatedly delivering accurate wheel balancing.

Boost shop productivity with features like smartSonar™ automatic rim width detection and our effortless, accurate Power Clamp™ wheel-clamping system, which maintains a constant force throughout the entire process. Our laser-guided weight placement system, easyWeight™ will quickly indicate the exact location of the weights, avoiding misplacement and rework.

The B600P wheel balancer from John Bean is ideal for shops that are looking for equipment that is easy to operate and offers high levels of productivity, keeping shops operating at full capacity.

VERSIONS

B600L (EEWB576AE1) – uses a Quick Nut Wheel Clamp and does not include the stop in position feature.

Features

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

EASYWEIGHT™

Take the guesswork out of weight placement; this pinpoint accurate system uses a laser to show the exact spot to place a weight to ensure precise balancing.

POWER CLAMP™

The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

ADDITIONAL FEATURES

TOUCHSCREEN INTERFACE

Fast and intuitive interface with large digits, colored weight position indicators increase speed, ease-of-use, and ergonomics for the daily job.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

STOP IN POSITION

Touch the screen to automatically rotate the wheel to the weight application position.

RIM LIGHTING

Bright LED lighting system that facilitates rim cleaning and aids in the weight positioning process.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

DOWNLOADS

TECH SPECS

Part Number

EEWB576APE1 – B600P

Wheel Clamping

Power Clamp™

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

SAPE Working Range

1.3″-13″  |  3-33cm

Manual Rim Diameter Range

8″ – 32″  |  20-81cm

Manual Offset Range

1″ – 20″  |  3-51cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

72″x34″x52″  |  183x87x131cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Three Centring Cone Set 42-116 mm
Weight Pliers
Weight Remover
Clamping Cone with Rubber Cushion
Calibration Weight
4 Storage Pegs
Power Clamp Sleeve

OPTIONAL

Clamping Plate 200 mm
Light Truck Kit - Spacer and Cone 122-172 mm
Set of 9 Centering Collets 52,5-122 mm
Set of FP Quick Flanges P
External Insulation Transformer
