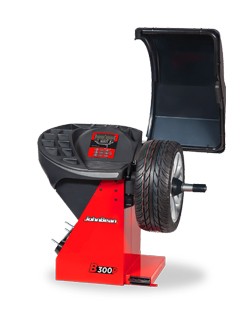

B300P Semi-Automatic Integrated Digital Display Wheel Balancer

The B300P wheel balancer from John Bean® is a semi-automatic wheel balancing machine that is ready to get the job done.

With an LED display and control panel integrated into the weight tray, the B300P provides accurate results in an uncomplicated machine. The B300P makes the balancing process easier for technicians with smartSonar™ technology that identifies the width of the wheel and automatically enters it into the system. The easyWeight™ laser technology indicates the precise location of the weight on the wheel, adding more productivity. Our exclusive Power Clamp™ wheel clamping system provides even more accurate wheel balancing by electromechanically securing the wheel with constant force, for reliable and consistent results.

Keep your shop equipped and get more wheel service jobs done, increase your profits with the John Bean B300P wheel balancer.

VERSIONS

B300L (EEWB573AE1) – uses a Quick Nut Wheel Clamp

B300S (EEWB573AS1) – uses a Quick Nut Wheel Clamp and does not include the easyWeight™ feature.

Features

SMARTSONAR™

Automatic rim width detection using sonar sensors to avoid manual entry errors.

EASYWEIGHT™

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

POWER CLAMP™

The electromechanical power clamping device always clamps the wheel accurately with a constant force and provides a reliable and consistent condition to assure accurate and repeatable measurements.

SEMI-AUTOMATIC DATA ENTRY

Hand-operated gauge arm with easyALU™ assisted rim data entry for diameter and distance. Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

ADDITIONAL FEATURES

INTEGRATED DIGITAL LED DISPLAY

Ergonomic weight-tray integrated touchpad operation with intuitive LED display.

SPLIT WEIGHT MODE

This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.

QUICKBAL™

Optimizes the number of revolutions according to each wheel’s specifications while always operating at maximum speed and reducing cycle time.

RIM LIGHTING

Bright LED lighting system that facilitates rim cleaning and aids in the weight positioning process.

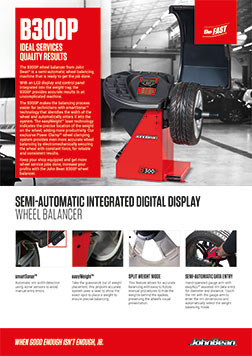

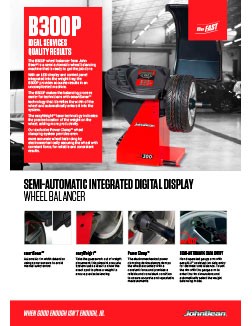

DOWNLOADS

TECH SPECS

Part Number

EEWB573APE1 – B300P
EEWB573AE1 – B300L
EEWB573AS1 – B300S

Wheel Clamping

Power Clamp™

SAPE Rim Diameter Range

8″-25″  | 20-64cm

SAPE Rim Width Range

3″-15″  |  8-38cm

SAPE Working Range

1.3″-13″  |  3-33cm

Manual Rim Diameter Range

8″ – 32″  |  20-81cm

Manual Offset Range

1″ – 20″  |  3-51cm

Manual Rim Width Range

1″ – 20″  |  3-51cm

Max Wheel Diameter

42″  |  107cm

Max Wheel Weight

154 lbs.  |  70 kg

Power Supply

230V 50/60Hz

Dimensions HxWxL

72″x34″x52″ | 183x87x131cm

Net Weight

254 lbs.  |  115 kg

ACCESSORIES

STANDARD

Three Centring Cone Set 42-116 mm
Weight Pliers
Weight Remover
Clamping Cone with Rubber Cushion
Calibration Weight
4 Storage Pegs
Power Clamp Sleeve

OPTIONAL

Clamping Plate 200 mm
Light Truck Kit - Spacer and Cone 122-172 mm
Set of 9 Centering Collets 52,5-122 mm
Set of FP Quick Flanges P
External Insulation Transformer
