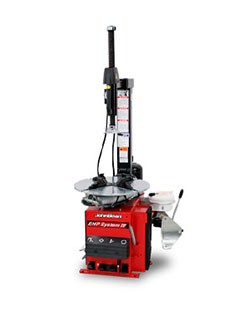

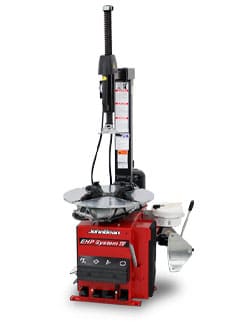

System IV-E Tilt-Tower Tire Changer

For shops interested in keeping revenue-boosting tire services in-house while keeping to a strict budget and looking to service OEM cars, SUV’s and light trucks; the John Bean® System IV-E includes several productivity-boosting features without the high price tag.

The System IV-E traditional tilt-tower design combined with a handy two-speed turntable and a bevy of productivity-boosting features allows you to keep revenue-boosting tire services where they belong – in your shop.

An on-floor bead breaker with an ergonomically located pedal makes breaking even the toughest beads easy and safe. The pneumatic locking tilt-tower configuration easily moves out of the way to ergonomically allow placement of small to large wheels.

Once the tire is on the turntable, the self-adjusting four-jaw clamp secures the wheel with twin-cylinder clamping power, and the integrated tire pressure limiter eliminates the possibility of over-inflation.

Big features, smaller price; the System IV-E is a great addition to any shop.

VERSIONs

System IV-E (EEWH514BEAU): With pneumatic bead assist and safety restraint arm.

Features

TILT-TOWER

The pneumatic tilt-back post provides maximum clearance for installing the tire on the turntable.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tires.

TABLETOP BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

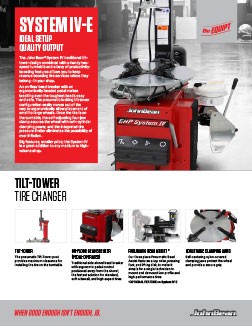

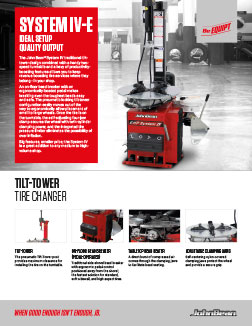

DOWNLOADS

TECH SPECS

Part Number

EEWH514BE

Max Rim Diameter

24″  |  61cm

Max Tire Width

13″  |  33cm

Max Rim Width

12″  |  31cm

Max Wheel Diameter

39″  |  99cm

Wheel Lift Capability

N/A

Power Supply

115V 1ph 60Hz 12A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

79″x61″x56″  |  201x155x142cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Lube Bucket
Lube Brush
Protective Insert for Mount/Demount Head
Plastic Jaw Protector

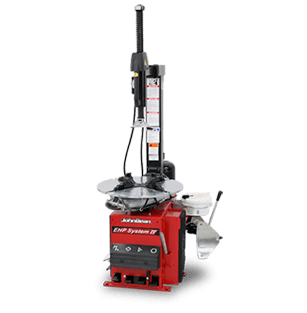

RELATED PRODUCTS
