T8058 Heavy-Duty Tire Changer

If you regularly work with heavy-duty machines like off-road vehicles, skidders, commercial trucks, and tractors – the John Bean® T8058 helps make short work of these challenging applications with a set of professional-grade features.

Heavy-duty vehicles have heavy-duty tires and OTR wheels that can be a challenge to work on without the right machine.

The John Bean T8058 is the pinnacle in heavy-duty tire changing technology and can support tires up to 92 inches in diameter with a maximum wheel width of 58 inches. Powerful hydraulic cylinders drive the mounting tool and the bead breaker.

In order to work on wheels without tires, the self-centering, four-jaw, two-speed chuck can easily be dropped to only 13.78 inches below the carriage. Positioning and rotation of the mounting tool are handled independently and move with ease using hydraulic power.

For the most challenging applications that require precision, the John Bean T8058 has you covered.

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tire changing operations.

EXTREMELY WIDE CLAMPING RANGE

Clamping range for rims of 14” to 58” without extensions; long jaws accommodate rims of high offset.

ADJUSTABLE MOUNTING TOOL

The adjustable mount/demount with bead-breaker disk and lever tool rotates 180 degrees to work on both sides of the tire.

PRESET TOOL CARRIAGE

The mount/demount tool travels from right to left of the tire for bead-breaking and mount/demount operation.

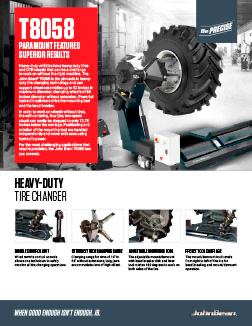

DOWNLOADS

TECH SPECS

Part Number

EEWH533ABU1

Max Rim Diameter

58″  |  147cm

Max Tire Width

99″  |  250cm

Max Rim Width

43″  |  110cm

Max Wheel Diameter

99″  |  250cm

Max Wheel Weight

3,200 lbs.  |  1,450 kg

Power Supply

230V 3Ph 60Hz

Air Pressure Required

N/A

Dimensions HxWxD

80″x82″x118″  | 202x210x299cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever
Long Tire Lever
Standard Tire Lever: 20" | 50cm
Mounting Clamp

OPTIONAL

Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Tubeless Roller
