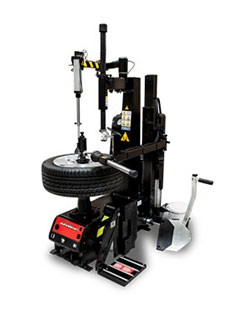

T7100S Center-Post Tire Changer

We’ve combined classic design with modern features to make it easy for technicians of all levels to quickly and safely change tires with the John Bean® T7100S tire changer.

Utilizing a traditional swing-arm style with a center post clamp design, the John Bean T7100S offers speed and precision for efficient tire changing operation. The on-floor hand-activated bead breaker shovel makes quick work of the toughest tires, while an integrated wheel lift helps reduce technician fatigue and increase productivity.

The center post clamp with anti-rotational pin accommodates a wide range of wheel sizes and minimizes the chance of wheel damage, and the pneumatic bead assist enables efficient single-operator mounting and demounting of the upper bead.

Our patented PROspeed™ technology monitors torque and optimizes the rotation speed to minimize the chance for tire damage throughout the operation.

For high-volume shops that need a tire changer with optimum technology; the T7100S is the machine for the job.

VERSIONs

T7100S

T7100S (EEWH570AC1): With pneumatic bead assist.

T7100S

T7100S (EEWH570AC): Without pneumatic bead assist.

Features

CENTER POST CLAMP

The center-post clamp design has numerous benefits, most important is the drastically reduced risk of wheel damage and less clamping restriction than the turntable design.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

ON-FLOOR BEAD BREAKER (HAND-CONTROLLED)

Pneumatic-assist control handle prevents shovel bounce-back with this on-floor bead breaker; the fastest solution for standard, soft sidewall, and high-aspect tires.

PNEUMATIC WHEEL LIFT WITH INTEGRATED ROLLER BOARD

The pedal-operated pneumatic wheel lift assists in lifting heavy wheels to reduce technician fatigue and increase productivity. The integrated roller board eases bead breaking.

ADDITIONAL FEATURES

PNEUMATIC BEAD ASSIST

Our Pneumatic Bead Assist with a top roller is an exclusive, unique tool for the T7100S and makes it simple for a single technician to mount and demount OEM, low-profile, and high-performance tires.

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tire to raise the bead and seat the tire to the rim.

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

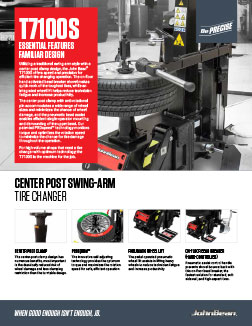

DOWNLOADS

TECH SPECS

Part Number

EEWH570AC1

EEWH570AC

Max Rim Diameter

30″  |  76cm

Max Tire Width

15″  |  38cm

Max Rim Width

14″  |  36cm

Max Wheel Diameter

44″  |  112cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

64″x62″63″  |  163x157x160cm

ACCESSORIES

STANDARD

Wave Plus Tire Lever & Sleeve
Plastic Rim Protector
Bead Breaker Blade Protector
Lube Bucket & Bottle
Lube Brush
Protective Insert for Mount/Demount Head
Quick Exchange Device & Mounting Head


optional

Universal Reverse Mount Wheel Kit
Bead Clamp
