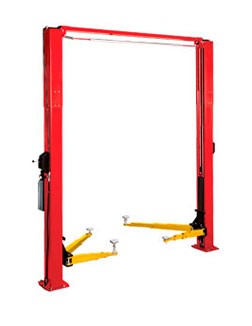

10K Two-Post Automotive Lift

Packed with premium features without the premium cost, the John Bean® 10k Two-Post Lift is a perfect addition to high-volume shops that work on various light and medium-duty vehicles.

Built to get the job done, the John Bean 10k Two-Post Lift easily handles loads up to 10,000 pounds. For ultimate flexibility, symmetric or asymmetric lifting is possible, and installation of the power unit can be on either side, while the installed height is adjustable by up to 10 inches.

Double telescopic lifting pads with replaceable plastic inserts work with three-stage front arms to safely lift a wide variety of vehicle types. Quickly and safely disengage both columns simultaneously with an easy-to-use, single-point Bowden cable release.

We’ve designed a padded overhead bar that instantly stops the lift, protecting the vehicle from unintentional damage. The 10k Two-Post Lift is the workhorse your shop needs to get the job done efficiently and safely.

VERSIONS

TWO-FOOT HEIGHT EXTENSION

Features

THREE-STAGE ASYMMETRIC FRONT ARMS & TWO-STAGE REAR ARMS

Confidently and accurately lift vehicles with our easy-to-use three-stage, asymmetric front arms, designed for ease of use and load balancing; two-stage rear arms easily connect to the rear vehicle lifting points.

FAST RISE TIME

Spend less time lifting vehicles and get to work faster with industry-leading rise times.

ADJUSTABLE HEIGHT EXTENSION

Increase your service capability to work on taller vehicles, including the largest trucks, SUVs, and cargo vans, with our two-foot column height extension.

ADJUSTABLE URETHANE SCREW PADS

Heavy-duty polyurethane pad provides ample surface area to the vehicle frame and the telescoping feature provides simple access to factory-recommended lift points.

ADDITIONAL FEATURES

ALI CERTIFIED

Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.

DOWNLOADS

TECH SPECS

Part Number

EELR532A

EELR532A w/2-foot extension kit

Lifting Capacity

10,000 lbs.  |  4,536 kg

Configuration

Assymmetric

Overall Width

132″  |  335cm

Overall Height

Standard: 138″-148″  |  351-376cm

Extended: 162″-172″  |  411-437cm

Max Lifting Height

Surface Mount: 78″ | 198cm

Flush Mount: N/A

Lifting Time

40 seconds

Power Requirements

208-230V 60 Hz 1Ph 2HP | 1.5kW

Air Supply Required

90-120 PSI  |  6-8 BAR

Minimum Recommended Bay Size WxL

Standard: 14’x24′  |  427 x 732cm

Extended: 14’x24′  |  427 x 732cm
