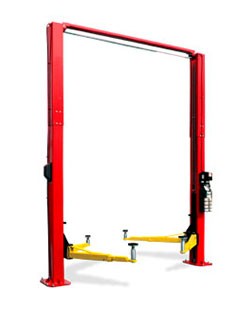

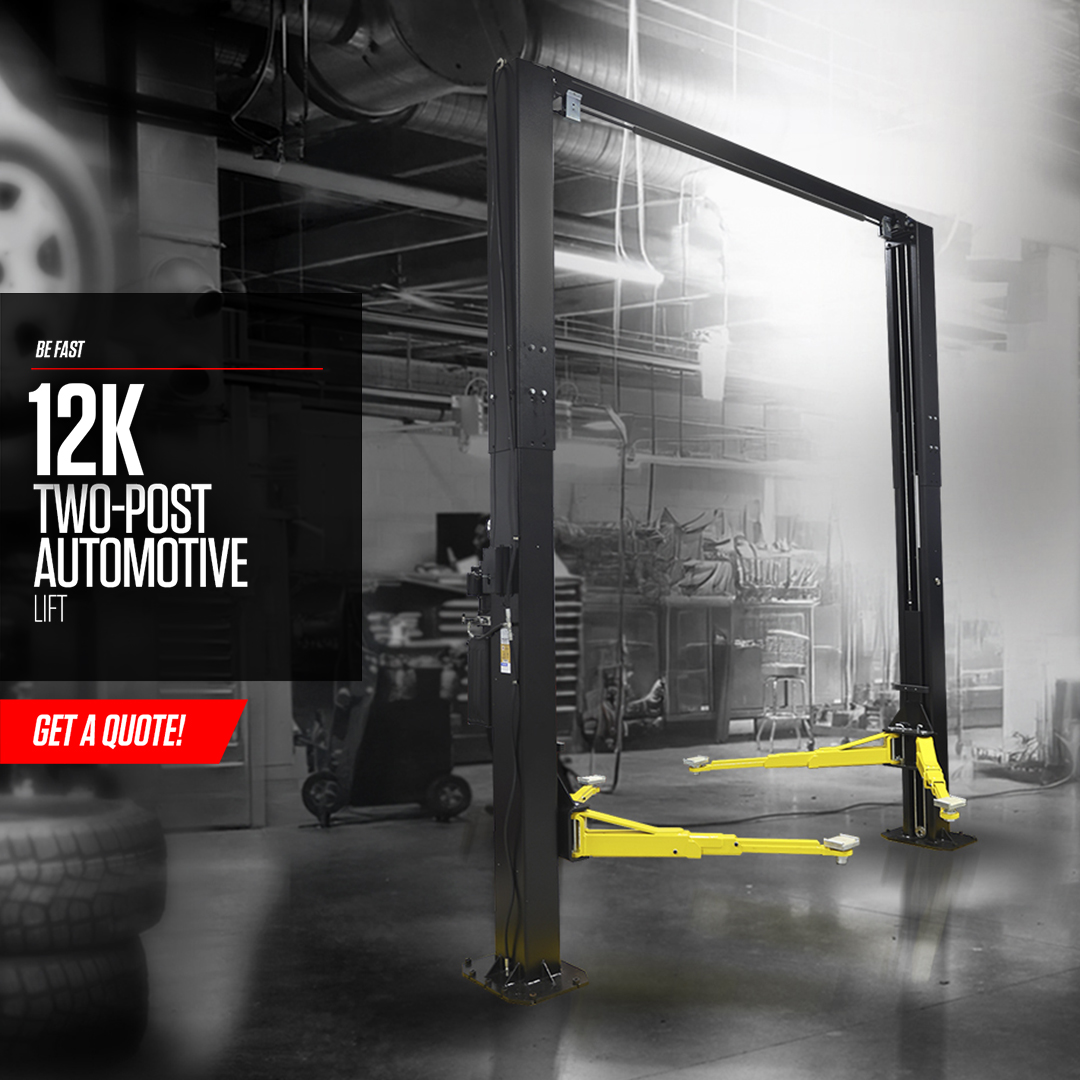

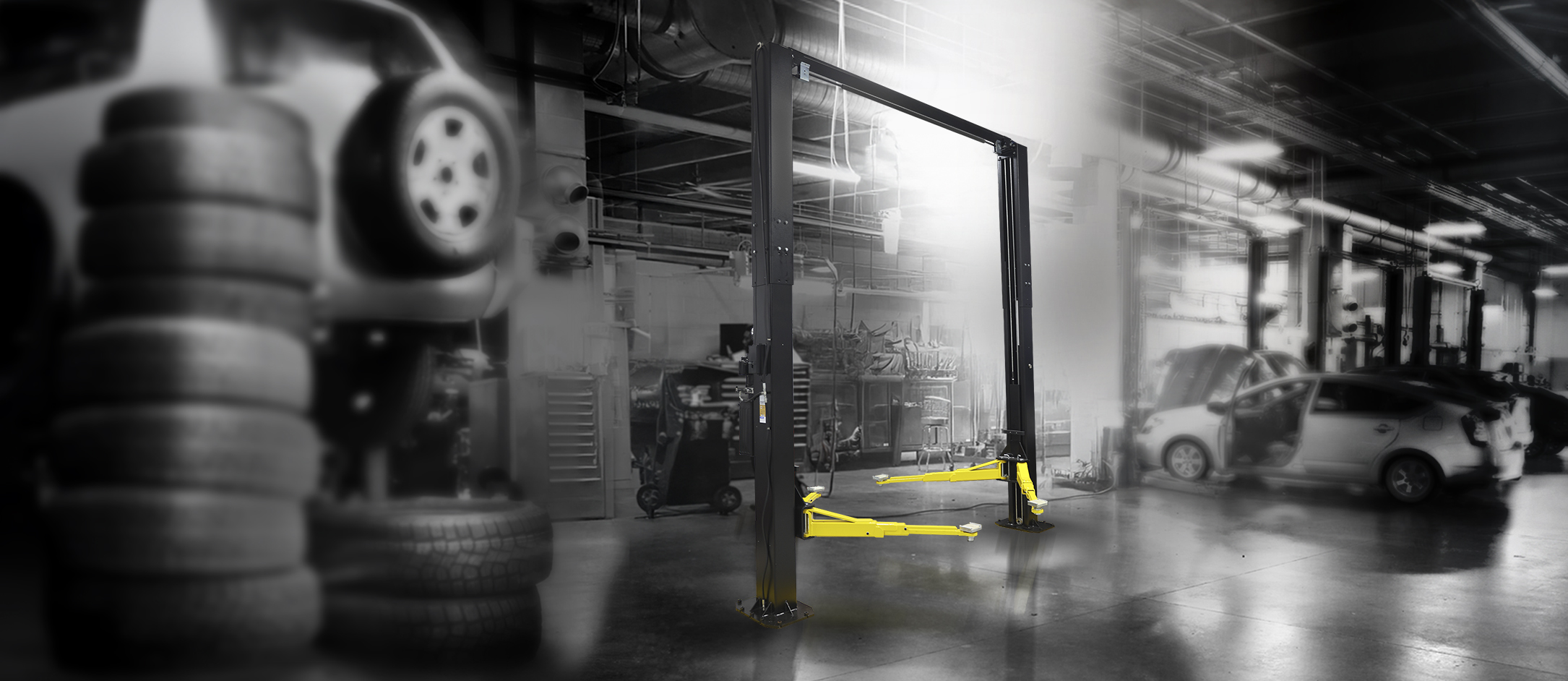

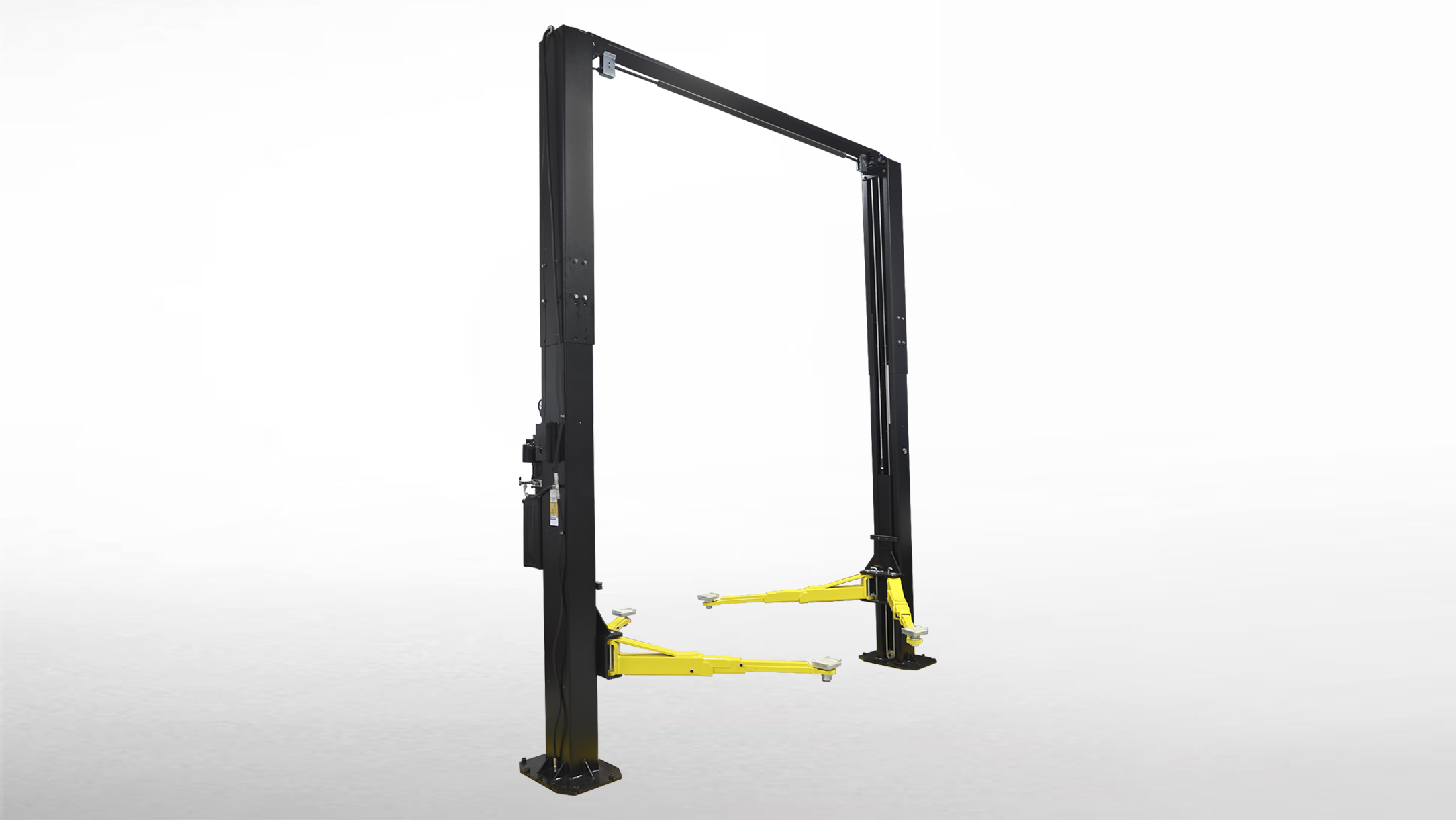

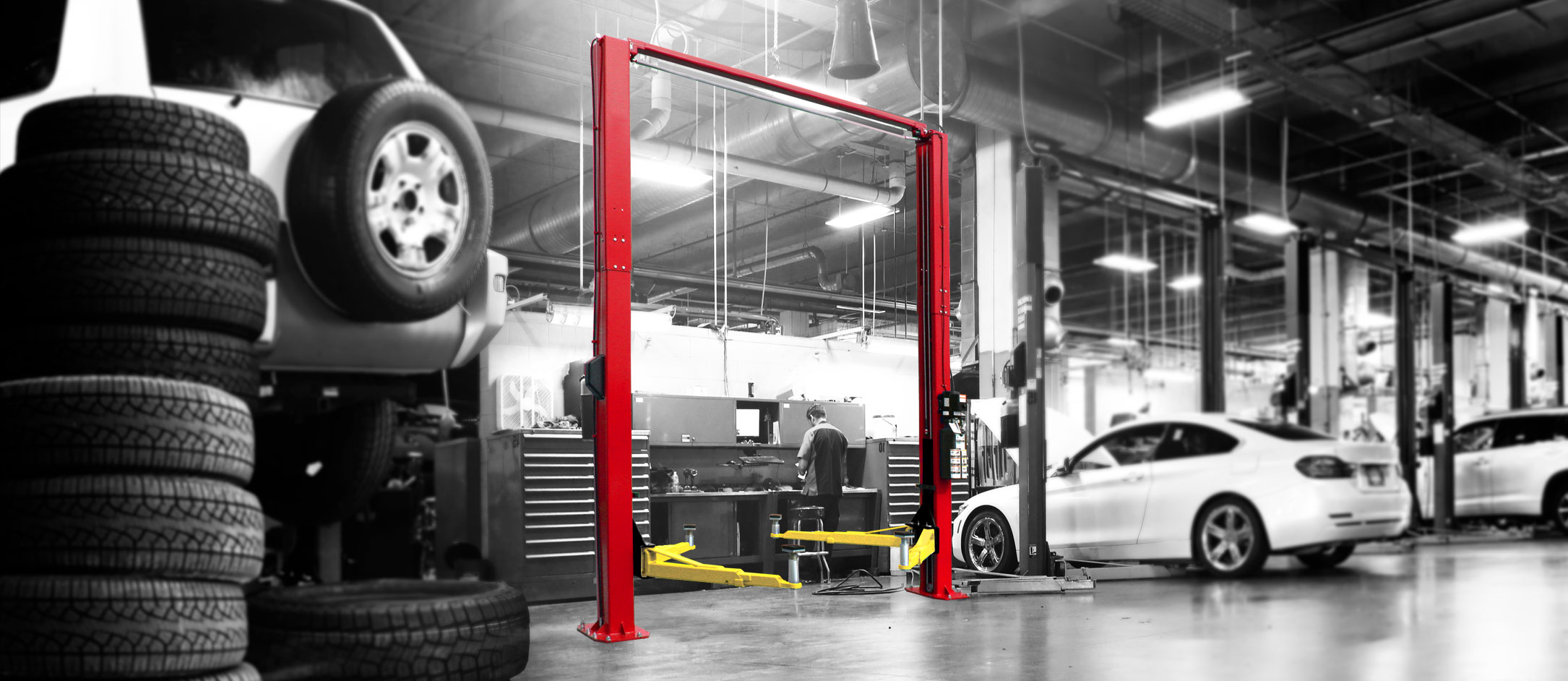

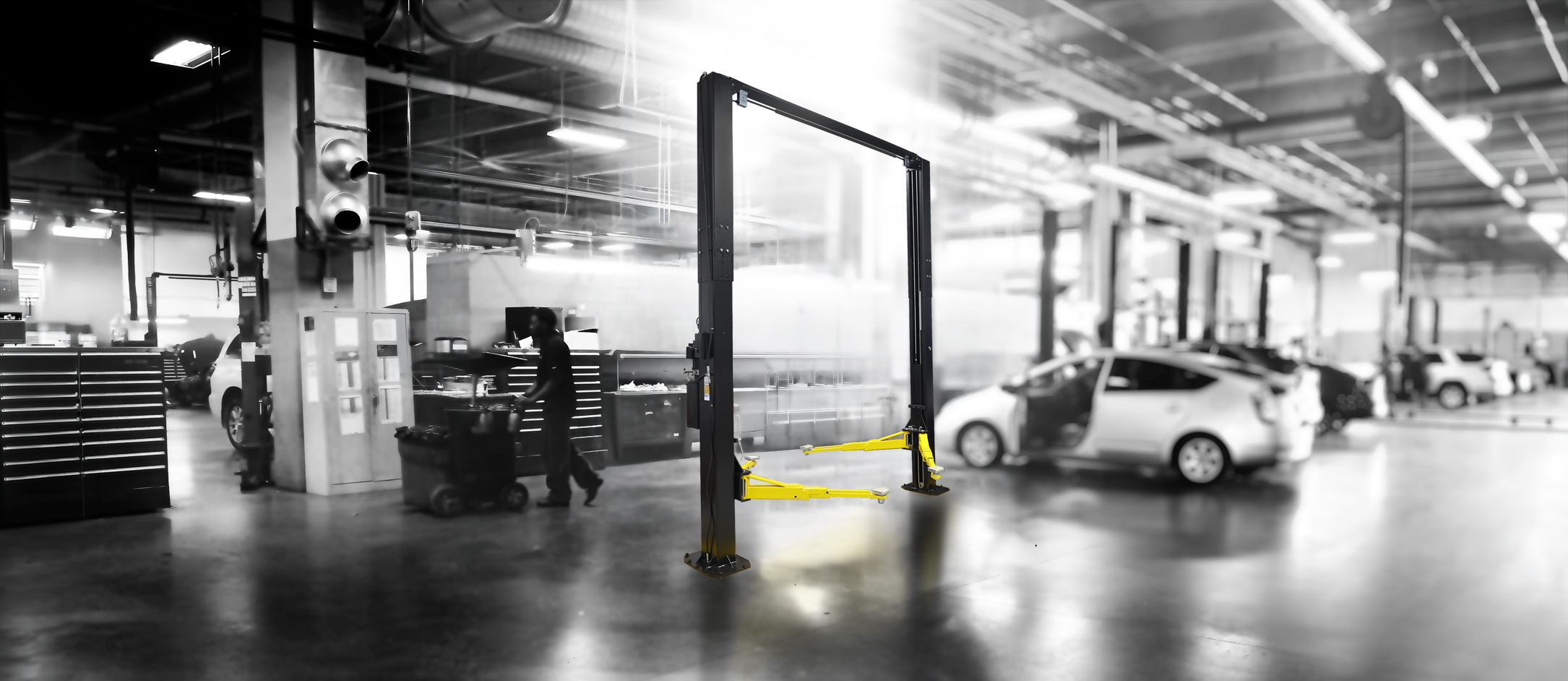

12K Two-Post Automotive Lift

For shops that work on various cars and trucks, looking for the ultimate power and precision in a superior two-post design, the John Bean® 12k Two-Post Lift will get the job done.

Ready to handle loads of 12,000 pounds, the John Bean 12k Two-Post lift can work on a wide variety of light and medium-duty applications for today’s modern shop.

Heavy-duty front and rear arms work with a standard set of screw pads and adapters to lift most vehicles in mere seconds. Rubber door guards on the columns prevent accidental vehicle damage. Quickly and safely disengage both columns simultaneously with an easy-to-use, Bowden cable release.

We’ve designed a padded overhead bar that instantly stops the lift, protecting the vehicle from unintentional damage.

The John Bean 12k Two-Post is a lift for those that get it done, day in and day out.

VERSIONS

TWO-FOOT HEIGHT EXTENSION

Features

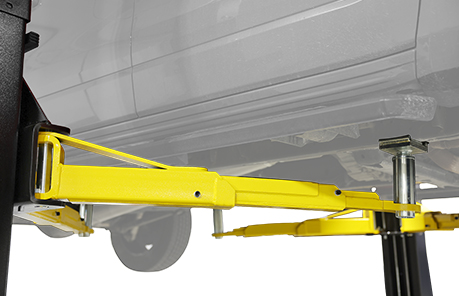

TWO-STAGE FRONT & REAR ARMS

Heavy-duty two-stage front and rear arms enable a wide range of symmetric lifting.

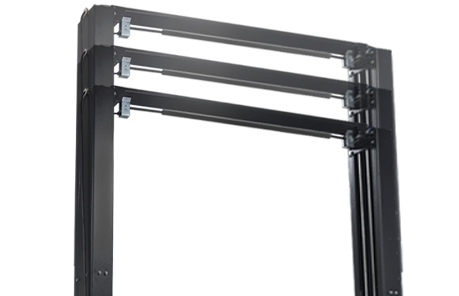

ADJUSTABLE HEIGHT TWO-FOOT EXTENSION

Increase your service capability to work on taller vehicles, including the largest trucks, SUVs, and cargo vans, with our two-foot column height extension.

ADJUSTABLE URETHANE SCREW PADS

Heavy-duty polyurethane pad provides ample surface area to the vehicle frame and the telescoping feature provides simple access to factory-recommended lift points.

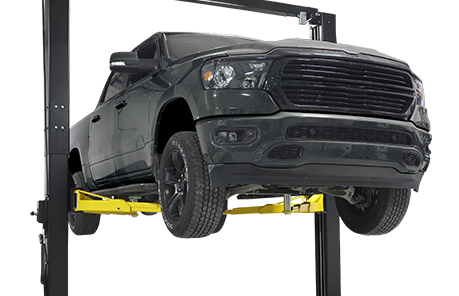

INCREASED CAPACITY FOR LARGER VEHICLES

Work on everything from a mini car to an RV with our high-capacity lift products for maximum revenue potential.

ADDITIONAL FEATURES

ALI CERTIFIED

Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.

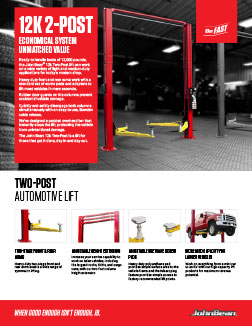

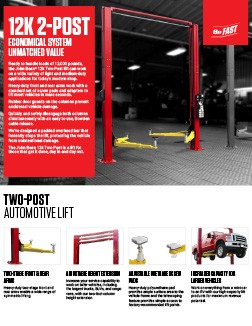

DOWNLOADS

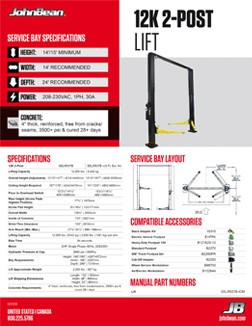

TECH SPECS

Part Number

EELR537A

EELR537A w/2-foot extension kit

Lifting Capacity

12,000 lbs.  |  5,443 kg

Configuration

Symmetric

Overall Width

140″  |  356cm

Overall Height

Standard: 166″-175″  |  421-445cm

Extended: 190″-199″  |  483-505cm

Max Lifting Height

Surface Mount: 78″  | 198cm

Flush Mount: N/A

Lifting Time

61 seconds

Power Requirements

208-230V 60 Hz 1Ph 30A 2HP | 1.5kW

Air Supply Required

90-120 PSI  |  6-8 BAR

Minimum Recommended Bay Size WxL

Standard: 14’x24′  |  427 x 732cm

Extended: 14’x24′  |  427 x 732cm
