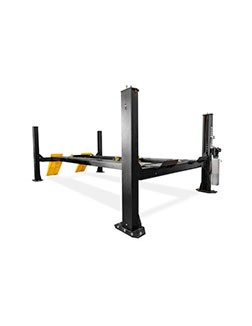

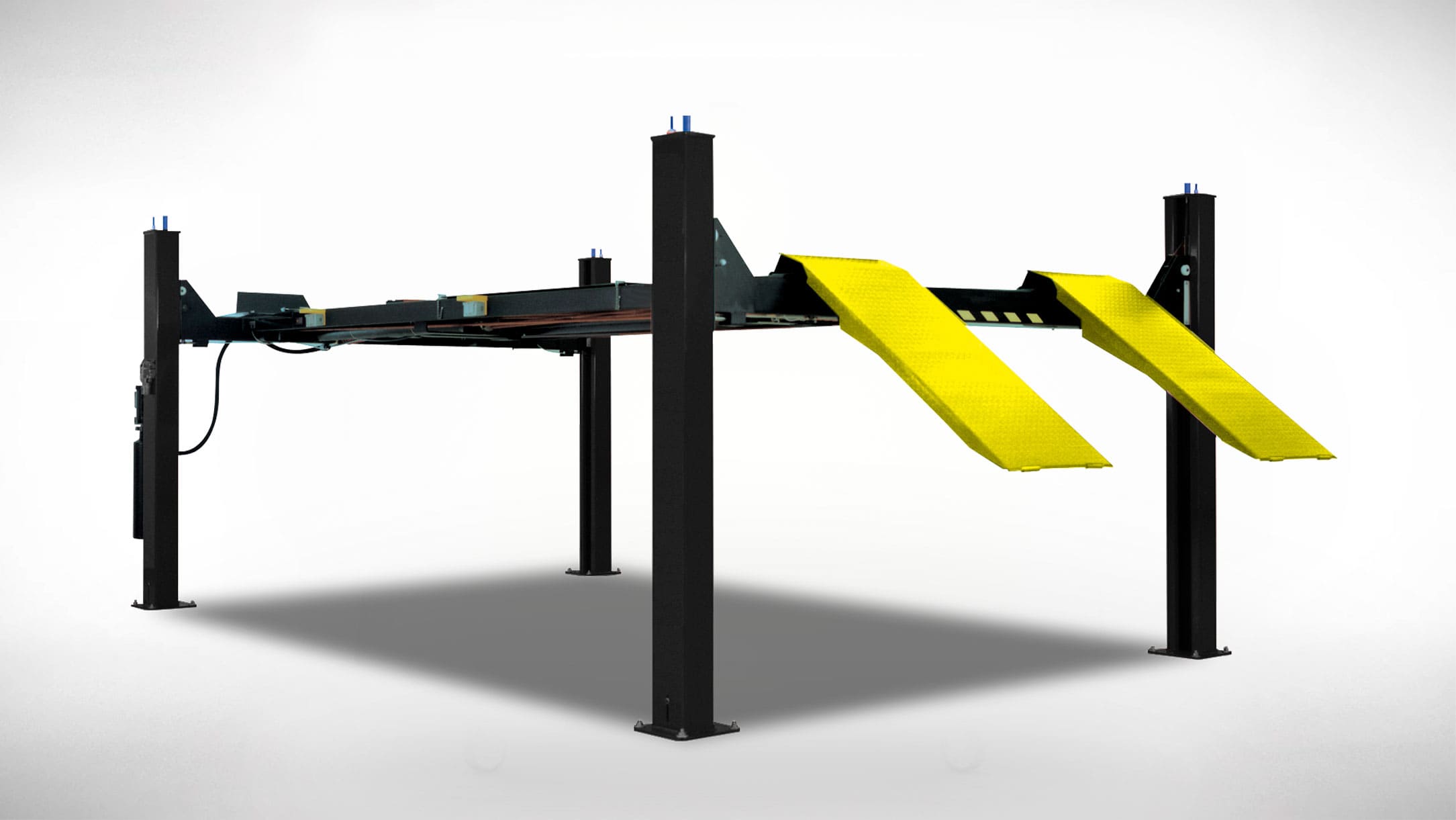

18K Four-Post Alignment Lift

The John Bean® 18k Four-Post Lift provides reliable and consistent heavy-duty lifting for alignment services, utilizing practical features without compromising safety or productivity.

Built for the toughest alignment jobs, the John Bean 18k Four-Post Lift provides 18,000 pounds of lifting power, combined with features that allow easy alignment and optimal operator safety. High-strength construction components such as built-in anti-sway technology and patented dura-glide lifting system ensure long-term dependability.

To ensure that safety is paramount on our 18k Four-Post Alignment Lift, John Bean has included a comprehensive Triple Safety System that sets the industry standard for heavy-duty lifts.

The 18k Four-Post Lift is the ultimate in heavy-duty capability and precision.

Features

HIGH-CAPACITY

Powerful hydraulic components allow technicians to work on vehicles that range from a compact sedan to some of the most oversized and heaviest vehicles on the road with a single lift.

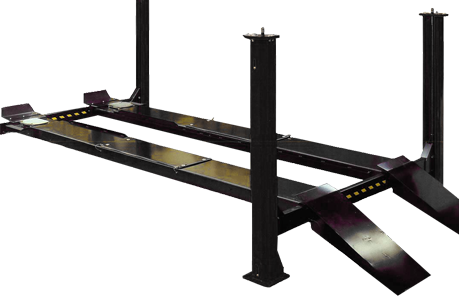

LONGER DECKS

Longer, pro-style decks allow for work on long-wheelbase vehicles.

FORM-INTEGRATED DECK & JACK RAIL

The form-integrated deck and jack rail, built with industry-proven design and technology, provide stability and minimal shake during alignment procedures.

ANTI-SWAY SYSTEM

Minimize alignment errors and reduce overall alignment times with a built-in anti-sway system that prevents unstable movement during raising, lowering and alignment procedures.

ADDITIONAL FEATURES

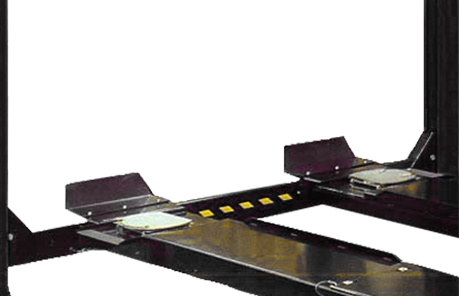

FRONT CROSS BEAM

An integrated front cross beam supports the lift structure for improved stability.

ALI CERTIFIED

Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.

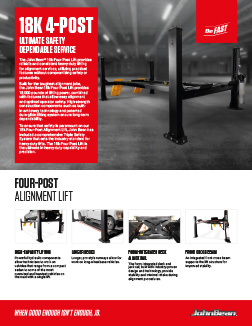

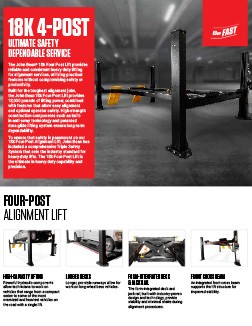

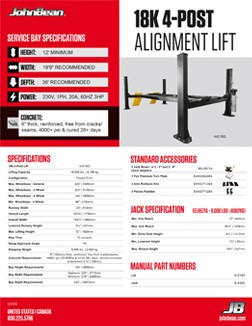

DOWNLOADS

TECH SPECS

Part Number

44218Q

Lifting Capacity

18,000 lbs.  |  8,165 kg

Configuration

Closed Front

Overall Width

152″  |  386cm

Overall Height

Standard: 97″  |  246cm

Max Lifting Height

Surface Mount: 72″  |  183cm

Lifting Time

70 seconds

Power Requirements

208-230V 60 Hz 1Ph 30A 3HP | 2.2kW

Air Supply Required

90-120 PSI  |  6-8 BAR

Shipping Weight

Standard: 5,465 lbs.  |  2,484 kg

Minimum Recommended Bay Size WxL

Standard: 18’x36′  |  549-1097cm
