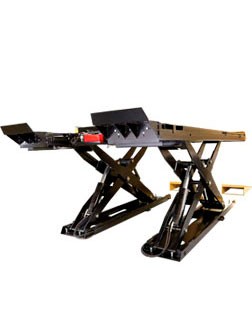

12K Scissor Alignment Lift

Built for shops that perform alignments day in and day out, the John Bean® 12k Scissor Lift offers durable construction with an open-front design for easy access to alignment service and calibration areas.

The John Bean 12k Scissor Lift is ready to meet the needs of shops that regularly perform alignment services. The lifting capacity can hoist up to 12,000 pounds with power from four heavy-duty cylinders, while the extra-wide 24-inch runways can easily accommodate larger vehicles. Hydraulic equalization and full-support integrated rear synchronization bar deliver repeatable smooth level lifting. Flush-mounted rear slip plates include heavy-duty encapsulated bearings to ease rear alignment adjustments.

The approach ramps can be extended up to 87-inches for loading lower-profile vehicles and retract to 35 inches when not in use.

For alignment professionals who need power and productivity, the John Bean 12k Scissor Lift is the ideal tool for the job.

Features

RETRACTABLE RAMPS

Approach ramps expand to 87 inches to accommodate low-profile vehicles and retract to 35 inches to save space when not in use.

DRIVE-THROUGH OPTION

Equip your lift with an extra set of ramps that allow vehicles to exit from the front without resorting to backing up.

FLUSH OR SURFACE MOUNT

Maximize available workspace by flush mounting your scissor lift into the floor of your shop to save space when not in use.

INTEGRATED REAR SYNCHRONIZATION BAR

A robust, heavy-duty steel bar supports stable up and down movement during operation.

ADDITIONAL FEATURES

ALI CERTIFIED

Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.

DOWNLOADS

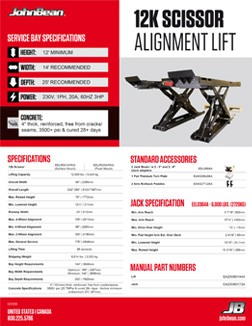

TECH SPECS

Part Number

EELR501APKG: Surface Mount

EELR525APKG: Flush Mount

Lifting Capacity


12,000 lbs.  |  5,443 kg

Configuration

Open Front

Overall Width

90″  |  229cm

Overall Height

Standard: 70″  |  178cm

Max Lifting Height

Surface Mount: 70″  |  178cm

Lifting Time

95 seconds

Power Requirements

230V 1Ph 60 Hz 20A 2HP | 1.5kW

Air Supply Required

90-140 PSI @ 5-10 CFM

Minimum Recommended Bay Size WxL

Standard: 15’x25′  |  457-762cm
