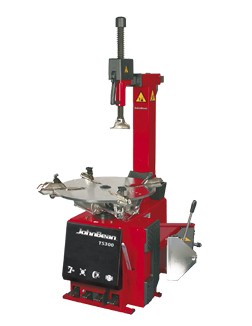

T5300B Tilt-Tower Tyre Changer

Built to get the job done with less hassle, the John Bean® T5300B is a powerful machine that performs core tyre-changing duties with ease.

Utilizing a proven tilt-tower design, the T5300B provides ample clearance to easily load tyres onto the turntable. The T5300B uses an ergonomically positioned pedal that operates a powerful, easy-to-operate bead breaker shovel to break the bead on traditional high-aspect tyres easily.

Practical and effective, the T5300B is a tilt-tower tyre changer that is capable and ready to go to work.

Versions

T5300 (EEWH569AE1): This version does not include a bead seater.

Features

TILT-TOWER

The pneumatic Tilt-Tower post provides maximum clearance for installing the tyre on the turntable.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tyres.

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tyre to raise the bead and seal the tyre to the rim.

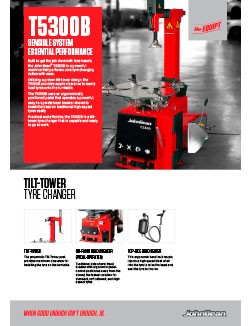

DOWNLOADS

TECH SPECS

Part Number

EEWH569AEF – T5300B
EEWH569AE1 – T5300

Max Rim Diameter

22″ | 56cm

Max Tyre Width

13″ | 33cm

Max Rim Width

12″ | 31cm

Max Wheel Diameter

39″ | 100cm

Wheel Lift Capability

154 lbs. | 70 kg

Power Supply

400V 3ph 50Hz 5,5A

Air Pressure Required

116-174 PSI | 8-12 bar

Dimensions HxWxD

63″x73″x35″ | 160x85x90cm

ACCESSORIES

STANDARD

1 kg Lube Bucket Holder
Wave Plus Tyre Lever
Wave Plus Lever Protector
Plastic Protectors for Mounting Head

optional

Lube Brush
Plastic Rim Protector
Plastic Tyre Protector
Smart Bead Spacer
Bead Clamp
Plastic Protector for Bead Breaker Blade
Bead Breaker Blade for Off-Road Wheels
Roller Board
RF Plus Bead Pusher Tool
Spacer for Bead Breaker: 20mm | 50mm | 70mm
Rod with Conical Roller
RF Plus Bead Breaker Tool
