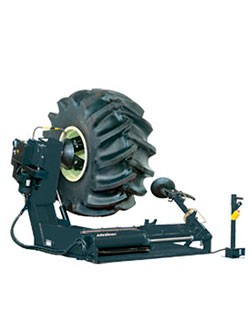

T8056 Heavy-Duty Tyre Changer

True, one-operator capability makes the John Bean® T8056 the productivity workhorse you need if you regularly work on heavy-duty tubeless, tube type, single or multi-piece, Budd, and Dayton wheels.

Utilising a remote-control console, the John Bean T8056 allows a single technician to work on tyres and OTR wheel assemblies up to 92.5 inches in maximum diameter; clamping wheels of 32 inches diameter (or 56 with optional extensions), safely and easily. The two-speed, self-centring, four-jaw, hydraulically operated chuck grips wheels with authority. We’ve designed the T8056 with an all-in-one bead breaker, mount/demount head assembly that makes quick work of even the toughest tyres. For heavy-duty wheels and tyres this is the ultimate in productivity, safety, and precision.

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tyre changing operations.

NON-RETURN VALVE

A non-return valve prevents the chuck from opening in case of a sudden hydraulic pressure drop.

BEAD BREAKER

The bead breaker disk is equipped with a special tilting system to assist bead breaking and ensure the disk is in the optimum position.

CHUCK

The self-centering hydraulic chuck is of solid design to accommodate wheels up to 3,300 pounds (1,500 kg).

DOWNLOADS

TECH SPECS

Part Number

6024008

Max Rim Diameter

32″ | 81cm

Max Tyre Width

43″ | 110cm

Max Rim Width

42″ | 107cm

Max Wheel Diameter

92″ | 235cm

Max Wheel Weight

3,300 lbs. | 1,500 kg

Power Supply

400 V 3ph 50 Hz

Dimensions HxWxD

58″x83″x83″ | 148x210x210cm

ACCESSORIES

STANDARD

Wave Plus Tyre Lever
Long Tyre Lever
Standard Tyre Lever: 20" | 50cm
Mounting Clamp
Jaw Protection Kit

OPTIONAL

Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Clamping Extensions: 32"-56" | 81-142cm
Tubeless Roller
