OEM TRUSTED EQUIPMENT: VOLVO

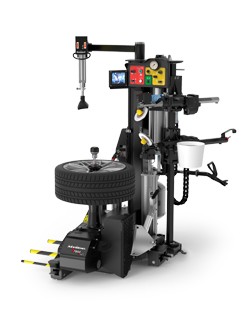

T7800P Leverless All-In-One Tyre Changer

Increase productivity and reduce technician fatigue with the T7800P all-in-one tyre changing system from the experts at John Bean®.

Technology and productivity intersect on the John Bean T7800P tyre changing system. The experts at John Bean have created a machine with advanced features that allow technicians to mount and demount tyres at a stunning pace with minimal fatigue and reduced chance of wheel damage.

The centre post design utilises our quickLOK™ powerful electromechanical clamping system to effortlessly and automatically clamp the wheel. The Optimum Bead Breaker System makes short work of breaking beads while minimising potential wheel damage, even on UHP and run-flat tyres. We’ve included helpful tools like a lower bead camera, PROspeed™ technology, and ergonomic features to make your technician’s job as easy as possible.

Versions

T7800G 2S (EEWH586AE4): Lower bead operation is monitored by a mirror and the wheel lift is available as optional.

T7800S 2S (EEWH586AE3): Lower bead operation is monitored by a mirror, wheel lift is available as optional, standard quickLOK™ clamping system (not wireless) and top-side bead seating kit not included.

T7800B 2S (EEWH586AE1): Lower bead operation is monitored by a mirror, wheel lift is available as optional, standard quickLOK™ clamping system (not wireless), top-side bead seating kit and on-floor bead breaker not included (dynamic bead breaker only).

Features

POWERMONT™

Our leverless mounting and demounting tool synchronises with the dynamic bead breaker location for optimum positioning. Featuring upgraded steel and plastic protection to ensure long-term operation, this innovative system is a perfect tool for RFT, UHP, OEM’s and low-aspect-ratio tyres.

QUICKLOK™

A powerful, electromechanical device that firmly clamps onto a variety of wheels without the need for wheel protection.

WIRELESS COMMAND

The centre-post clamping system can be operated by wireless command in the shaft handle.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

OPTIMUM BEAD BREAKER SYSTEM

This two-part system provides a combination of bead-breaking tools for the most optimised solution the Dynamic Bead Breaker for RFT, UHP, and low-aspect tyres, and the On-Floor Bead Breaker for standard and high-aspect tyres.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tyres.

PNEUMATIC BEAD PUSHER

The Pneumatic Bead Pusher assists in the mounting process of the upper bead. Its dual-purpose design offers a reverse-side hook to help lift heavy tyres.

ADDITIONAL FEATURES

CONTROL PANEL

The color-coded control panel is simple to use with tool-matching operation controls.

PNEUMATIC WHEEL LIFT

The pedal-operated pneumatic wheel lift assists in lifting heavy wheels to reduce technician fatigue and increase productivity.

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tyre to raise the bead and seal the tyre to the rim.

LOWER BEAD CAMERA VIEW

The lower bead camera provides a clear view on the control panel monitor for lower bead breaking.

DOWNLOADS

TECH SPECS

Part Number

EEWH586AE2 – T7800P 2S
EEWH586AE4 – T7800G 2S
EEWH586AE3 – T7800S 2S
EEWH586AE1 – T7800B 2S

Max Rim Diameter

30″  |  76cm

Max Tyre Width

15″  |  38cm

Max Rim Width

13″  |  33cm

Max Wheel Diameter

47″  |  119cm

Wheel Lift Capability

154 lbs.  |  70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI  |  8-12 bar

Dimensions HxWxD

75″x63″x78″  |  190x160x198cm

ACCESSORIES

STANDARD

Lube Brush
5 kg Lube Bucket Holder
Bead Extraction Tool
Bead Breaker Blade Protector
Spacer for Bead Breaker: 20 mm | 50 mm | 70 mm
Cone Kit: 42-85 mm
Plastic Tyre Protector
Short Rim Protector with Tool Stopper
Smart Bead Spacer
Bead Clamp
Wheel Lift

OPTIONAL

Light-Truck Wheel Kit
Closed-Centre Rim Kit
Reverse Mount Wheel Kit
Set of 5 Bolts for Reverse Mount Wheel Kit: 19 mm Diameter Cylindrical
Set of 10 Bolts for Reverse Mount Wheel Kit: 36 mm Diameter Tapered (x5) and 36 mm Diameter Cylindrical (5x)
Cone Kit: 64 mm | 126 mm | 145 mm
Tool Storage
Reinforced Upper Tool Protector Kit
Lower Tool Protector Kit
Plastic Rim Protector
Mounting Tool
Tractor Kit
