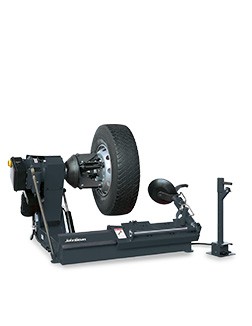

T8026 Heavy-Duty Tyre Changer

Work on a variety of heavy-duty tube-style, and tubeless tyres found on everything from buses to tractor-trailers with the John Bean® T8026.

The John Bean T8026 allows a single technician to work on tyres and OTR wheel assemblies up to 59 inches in maximum diameter and 27.5 inches in wheel diameter safely and easily, by utilising a unique remote-control console. Grip wheels with authority with a two-speed, self-centring, four-jaw, hydraulically operated chuck. To boost productivity, we’ve designed the T8026 with a patented all-in-one bead breaker, mount and demount head assembly that makes quick work of even the toughest tyres. Work smarter, not harder with the John Bean T8026.

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tyre changing operations.

NON-RETURN VALVE

A non-return valve prevents the chuck from opening in case of a sudden hydraulic pressure drop.

BEAD BREAKER

The bead breaker disk is equipped with a special tilting system to assist bead breaking and ensure the disk is in the optimum position.

CHUCK

The self-centering hydraulic chuck is of solid design to accommodate wheels up to 1,000 kg (2,205 lb).

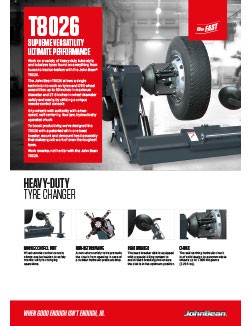

DOWNLOADS

TECH SPECS

Part Number

6023578

Max Rim Diameter

26″ | 66cm

Max Tyre Width

27″ | 69cm

Max Rim Width

28″ | 70cm

Max Wheel Diameter

59″ | 150cm

Max Wheel Weight

2,205 lbs. | 1,000 kg

Power Supply

400 V 3ph 50 Hz

Dimensions HxWxD

33″x66″x55″ | 84x167x140cm

ACCESSORIES

STANDARD

Wave Plus Tyre Lever
Long Tyre Lever
Mounting Clamp
Jaw Protection Kit

OPTIONAL

Standard Tyre Lever: 20" | 50cm
Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Tubeless Roller
